Home > Electrical & Electronics > Connector & Terminals > Terminals > High Quality PCB Pluggable Terminal Connector 2.5mm
High Quality PCB Pluggable Terminal Connector 2.5mm
US$ 0.01 - 1
MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Terminal Connector 2.5mm
Model Number:
Terminal Connector 2.5mm TB15EDGKD-2.5
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pitch 5.0mm MCS Terminal Block ConnectorUS$ 0.01 - 1MOQ: 1000 Pieces -
MY510 Feed Through Connector Terminal Block Pitch 10.0mm 2PinUS$ 0.01 - 1MOQ: 1000 Pieces
-
Feed Through Connector Terminal Block H Type With 4.3mm Elevated BaseUS$ 0.01 - 1MOQ: 1000 Pieces
-
Electronic Connector Feed Through Terminal Block H Type With 1.2mm Elevated BaseUS$ 0.01 - 1MOQ: 1000 Pieces
-
Electronic Motor Feed Through Terminal Block H Type Flat BottomUS$ 0.01 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Terminal Connector 2.5mm
Model Number
Terminal Connector 2.5mm TB15EDGKD-2.5
Type
Other, Screw Terminal, Terminal Connector 2.5mm
Specifications
High Quality PCB Pluggable Terminal Connector 2.5mmCE, ROHS, VDE, SGS certificates
Door to door delivery service
High Quality PCB Pluggable Terminal Connector 2.5mm
Detailed Product Description
| Product | Terminal Connector 2.5mm | |
| Pitch | 2.5mm | |
| Material | ||
| Shrapnel | Stainless Steel | |
| Clamp | Phosphor bronze,Ni plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 150V | 130V |
| Rated current: | 5A | 6A |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC 1500v/ 1 Min | |
| Wire range: | 26~20AWG 1.5mm2 | |
| Mechanical | ||
| Temp. Range: | -40°C~+105°C | |
| Strip length | 7~8mm | |

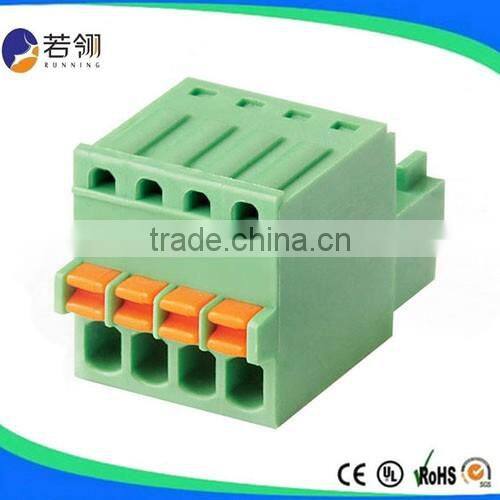

PRODUCT PICTURE

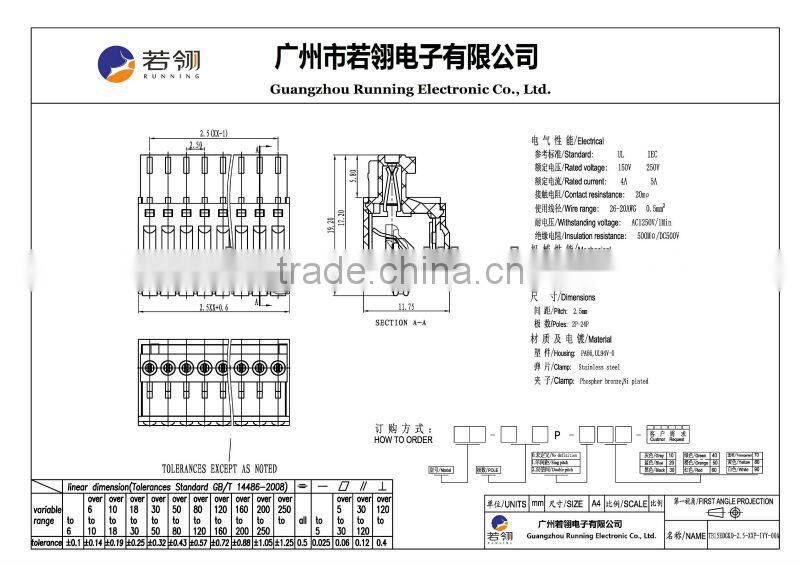

PRODUCT DRAWING
