Spring Clamp Terminal Connector Block, TB250 Pitch:3.5mm, 5.0mm,7.5mm.
US$ 0.01 - 1
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
TB250
Type:
Other, SPRING TERMINAL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NING BO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spring Clamp Terminal Connector Block, TB211V-2.54 Pitch:2.54MMUS$ 0.01 - 1MOQ: 2000 Pieces -
Spring Clamp Terminal Connector Block, TB236 Pitch: 5.00mmUS$ 0.01 - 1MOQ: 2000 Pieces
-
Spring Clamp Terminal Connector Block, TB245 Pitch:5mm, 7mm, 10mmUS$ 0.01 - 1MOQ: 2000 Pieces
-
Spring Clamp Terminal Connector Block, TB243A Pitch:5mmUS$ 0.01 - 1MOQ: 2000 Pieces
-
Spring Clamp Terminal Connector Block, Pitch 5.08mm, 7.62mm TB142VUS$ 0.01 - 1MOQ: 2000 Pieces
Place of Origin
Zhejiang, China
Model Number
TB250
Type
Other, SPRING TERMINAL
Specifications
fast deliveryhigh quality with certificates
good price
better service
Spring Clamp Terminal Connector Block, TB250 Pitch:3.5mm, 5.0mm,7.5mm.
Detailed Product Description
| Product | Spring Clamp Terminal Block | |
| Pitch | 3.5mm,5.0mm,7.5mm | |
| Material | ||
| Wire Guard | Stainless Steel (SUS301) | |
| Pin Header | Phosphor Bronze, Tin Plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 400V |
| Rated current: | 7A | 5A |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC 2000V/ 1 Min | |
| Wire Range: | 26-16AWG 1.5mm2 | |
| Mechanical | ||
| Temp. Range: | -40°C~+105°C | |
| Max Solderring: | + 250 °C , for 5 Sec. | |
| Strip Length | 8-9mm | |
PRODUCT PICTURE

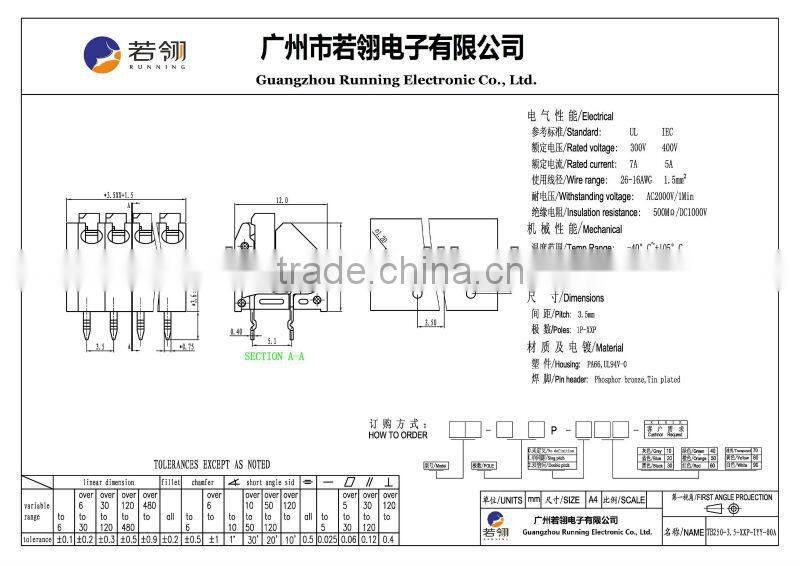

PRODUCT DRAWING
