Specifications
PCB Spring Terminal Block Pitch:7.5mmHigh Quality,reasonable price
CE, ROHS, VDE, SGS certificates
Fast delivery
Grey PCB Spring Terminal Block Pitch:7.5mm
Advantage
1.We are professional supplier.
2.We work with dozens of factories to ensure competitive prices.
3.Inspections:100%test before delivery.
4.Free samples for your test
5.OEM/ODM are acceptable
6.Fast delivery
7.Door to door service
8.trail order&small order are acceptable
Detailed Product Description
| Product | PCB Spring Terminal Block Pitch:7.5mm | |
| Model Number | PCB Spring Terminal Block Pitch:7.5mm | |
| Pitch | PCB Spring Terminal Block Pitch:7.5mm | |
| Certificates | CE, ROHS, VDE, SGS | |
| Origin Country | Zhejiang, China (Mainland) | |
| Brand Name | PCB Spring Terminal Block Pitch:7.5mm | |
| Color | Grey | |
| Material | ||
| Wire guard | Stainless steel | |
| Pin Header | Brass sn plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 250V |
| Rated current: | 5A | 15A |
| Wire range | 22~18AWG 1.0MM2 | |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC2000v/ 1 Min | |
| Mechanical | ||
| Temp. Range: | -40°C~+105 °C | |
| Max Soldering | +250 °C 5 sec | |
| Strip length | 9~10mm | |
| MOQ | Most product not have MOQ, the common connectors are in stock. | |
| Inspection | 100% tested before delevery | |
| Supply Ability | 100000 Piece/Pieces per Week | |
| Payment Terms | L/C,T/T,Western Union,paypay | |
| Port | SHANGHAI/NING BO | |
| Packaging Details | carton,opp bagg | |
| Delivery Detail | 7~15days after payments | |
PRODUCT PICTURE

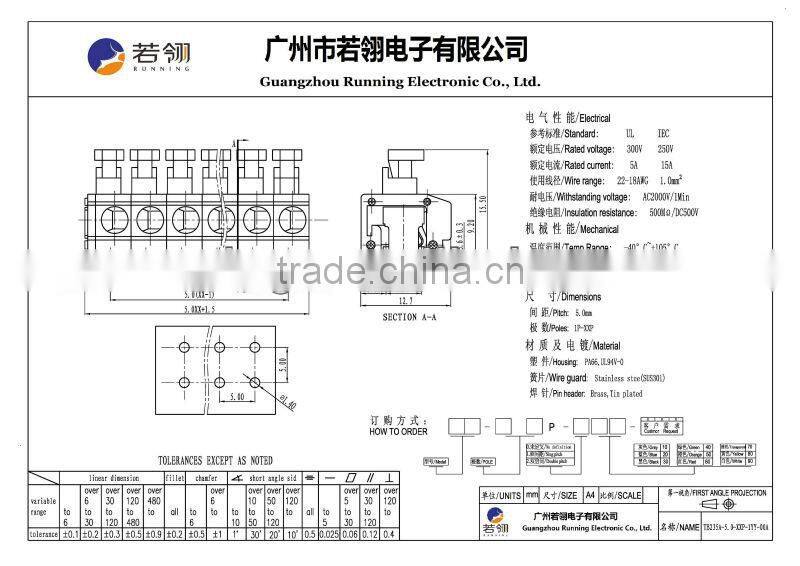

PRODUCT DRAWING
