Specifications
PCB Screwless Spring Terminal Block Pitch 2.54mmHigh Quality,reasonable price
CE, ROHS, VDE, SGS certificates
PCB Screwless Spring Terminal Block Pitch 2.54mm
Advantage
1. We are professional supplier. |
2. We work with dozens of factories to ensure competitive price |
3. Inspections:100% test before delivery. |
4. Free samples for your test |
| 5. OEM and ODM are acceptable |
| 6. Fast door to door delivery service |
| 7. Trail order and small order are acceptable |
Detailed Product Description
| Product | Spring Terminal Block Pitch:2.5mm | |
| Pitch | 2.54mm | |
| Certificates | CE, ROHS, VDE, SGS | |
| Color | Green | |
| Material | ||
| Wire guard | Stainless steel | |
| Pin Header | Phosphor bronze,sn plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 150V | 130V |
| Rated current: | 4A | 6A |
| Wire range | 28~20AWG 0.5MM2 | |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC2000v/ 1 Min | |
| Mechanical | ||
| Temp. Range: | -40°C~+105 °C | |
| Max Soldering | +250 °C 5 sec | |
| Strip length | 9~10mm | |
| Supply Ability | 100000 Piece/Pieces per Week | |
| Payment Terms | L/C,T/T,Western Union,Paypal | |
| Port | SHANGHAI/NING BO | |
| Packaging Details | carton,opp bagg | |

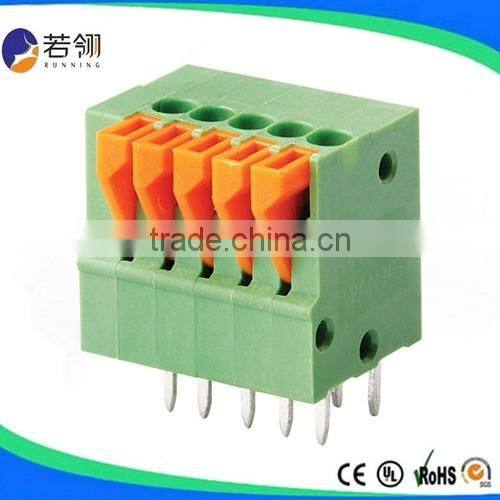

Product Picture

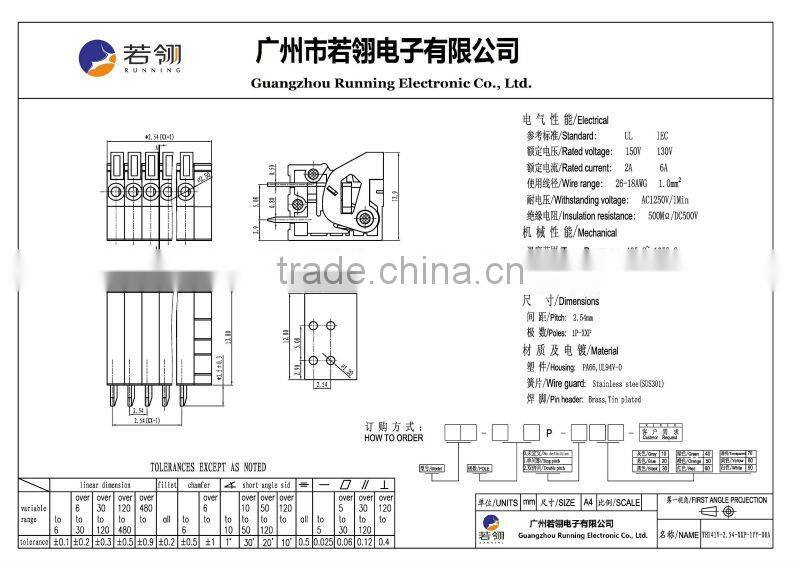

Product Drawing
Related Product
Certificates
Packaging and Shipping
Factory Show
About Us
|
Guangzhou Running Electronic Co., Ltd. is a professional supplier of electronic components, such as
pluggable/barrier/screw/feed through terminal blocks, solderless breadboards, pin header, etc. With highquality
products, excellent services and a good reputation, we have wongreat support from customers around the world.
Thus, our company scale has expanded. At present, we export products to the USA, Brazil, Italy,etc. We have
established longterm, stable and good business relationships with many manufacturers and wholesalers around the
world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual
benefits. Please feel free to contact us for more details.
|
