4 Channel Fhd 1080p Mobile Hd DVR for Car Bus Truck Van
4 Channel Fhd 1080p Mobile Hd DVR for Car Bus Truck Van

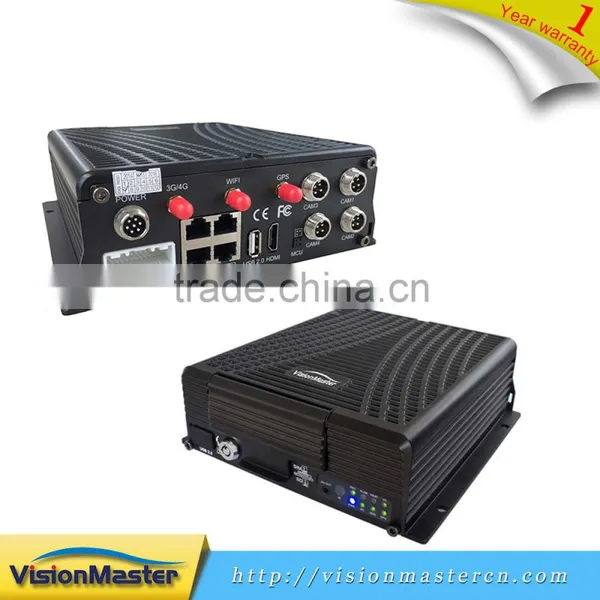

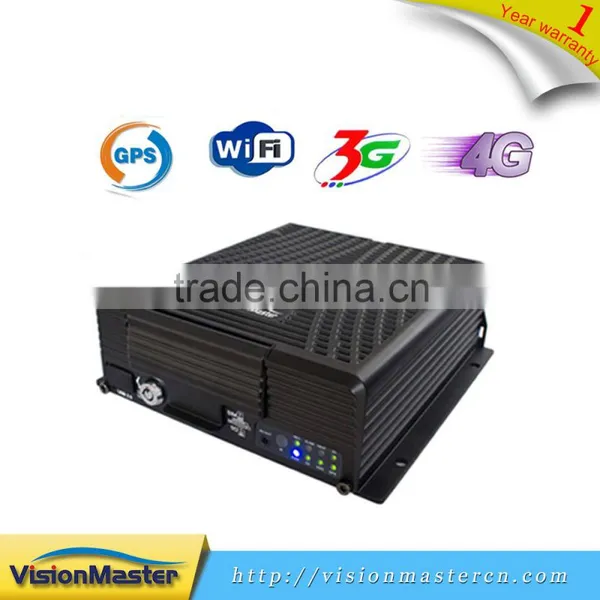

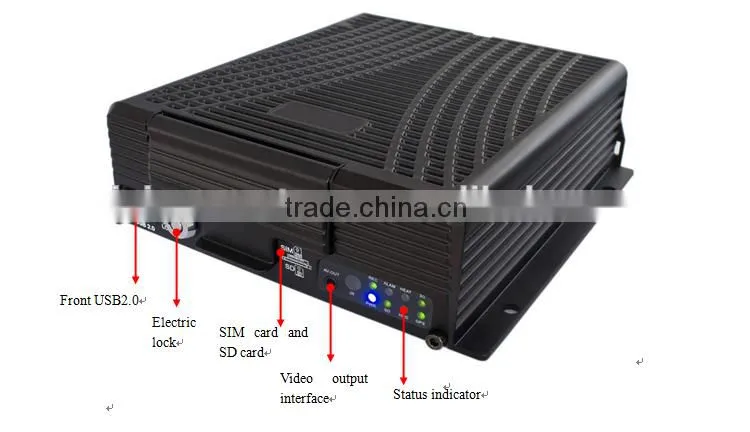

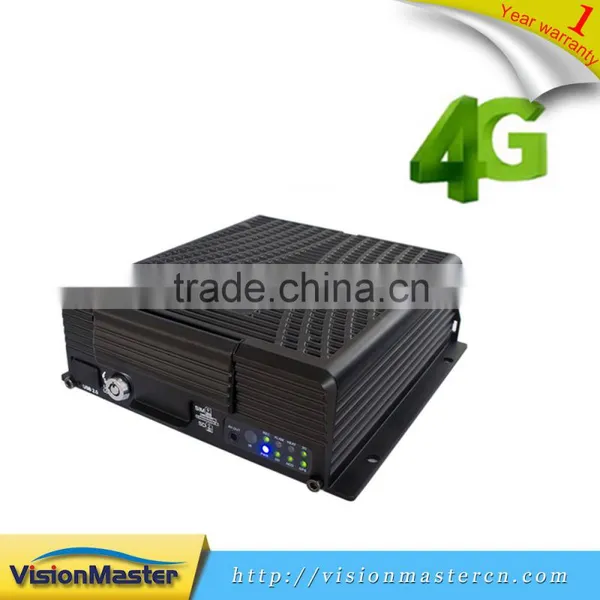

VM-3004-Hybrid is a vehicle HD MDVR,which support 4 channels analog+4 channels IPC audio and video recording and playback at the same time.it support network function,
| Item | Parameter | VM-3004-Hybrid | |
| System | Language | Chinese/English | |
| Operating interface | Graphical user interface (OSD menu) | ||
| Password &security | User password and Admin password management | ||

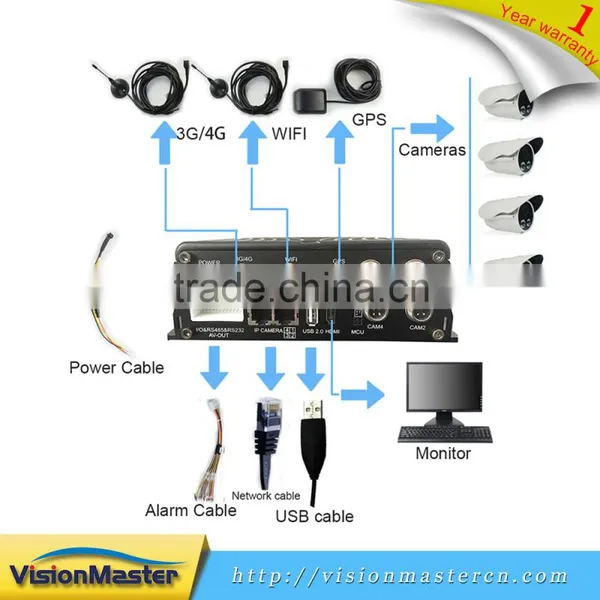

| Video | Video input | 4-way composite video input + 4-way network camera | |
| Video output | 2-way CVBS video output | ||
| Video display | 1~5 screens supported//PAL format, NTSC format | ||
| Imagecompression | H.264 Main profile, PAL: 100 frames 720P/s, NTSC: 120 frames 720P/s | ||
| Audio | Audio input | 4 audio inputs | |
| Audio output | 2 audio outputs (one is φ3.5 Phone Jack, and the other is 24PIN connector) | ||
| Recording mode | Synchronous video & audio recording | ||
| Image format | CIF/D1/960H/720P optional | ||
| Storage | Max. 2T HDD+ one sd card | ||
| Alarm | Alarm input | Eight alarm inputs. You can set the lower level alarm (1V or below) or upper level alarm (5V or above) | |
| Alarm output | One alarm output, the higher level of this output is up to 12V | ||
| Communication interface | RS485 interface | One RS485 interface supported | |
| RS232 interface | Two RS232 interfaces supported | ||
| Wireless | 3G | built-in3Gcommunicatio | |
| module (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) | |||
| 4G | Optional built-in 4G communication module (FDD-LTE/TDD-LTE) | ||
| WiFi | Built-in WiFi module (optional) | ||
| GPS | Writable code stream such as built-in GPS module, geographical coordinate, rate supported; in addition, wireless uploading is possible | ||
| Sensor | Built-in acceleration sensor G-Sensor | ||
| Supporting software | Play back video file in PC, and analyze vehicle information in the file | ||
| CMS management software | |||
| Software upgrade | Front USB2.0 interface and remote CMS upgrade are possible for this device | ||

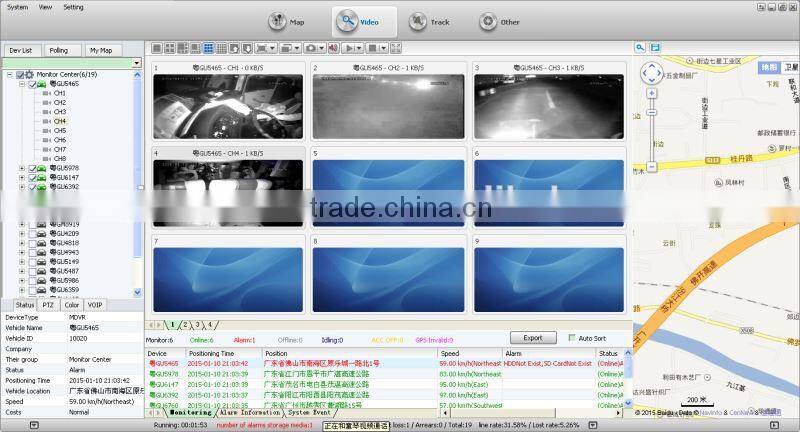

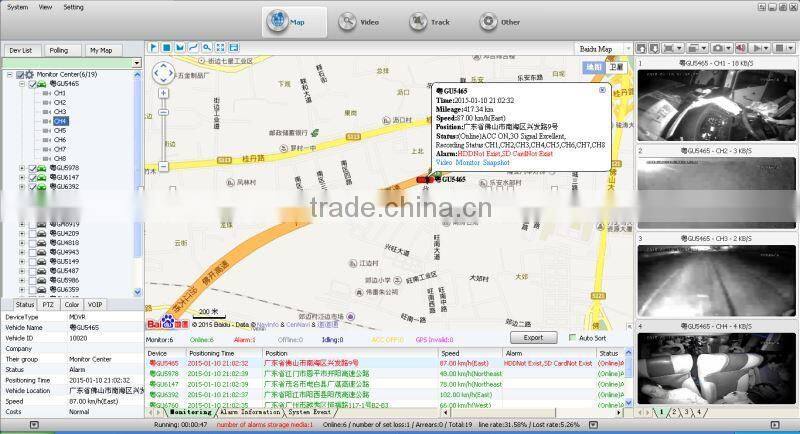

CMSV6 Interface on PC


CMSV6 In Mobile Phone
Have all in the palm of your hand
Real-time monitoring via Mobile Phone
Support iPhone, Android, iPad system

Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective. Before we got this new company name(Visionmaster), we have been in the field for 8years. Our team has been steadily growing from the initial 3 founders up to more than 100 employees. Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions. Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success.


ONE-to-One technical support.
-MDVR warranty 12 months.
-Free repair to our faulty manufacture product during warranty.
-Free technical support.
-Free marketing materials.
-Free upgrade on software.
-OEM cooperation on customized requirement.
-Confidential agreement.
