Home > Products > Terminal Block > MY8HS+1.2 Electrical Terminal Strip, H Type Terminal Block
MY8HS+1.2 Electrical Terminal Strip, H Type Terminal Block
US$ 0.01 - 1
/ Piece
1000 Pieces(Min. Order)
- SHANGHAI/NING BO
- T/T Credit Card
You May Like
-
Feed Through Screw Ballast Terminal Block
-
12Poles Feed Through H Type Terminal Block
-
Lighting 12poles H Type Terminal Block
-
Hight QualityScrew H Type Feed Through Terminal Block
-
Feed Though Terminal Block Connector
-
MY12HW+4.3 Ballast Terminal Block, HType Terminal Block, Terminal Strip, PA66 Connector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | MY8HS+1.2 | Type | Other, feed through |
Product Description
Specifications
ce, rohs certificateseco-freindly material
MY8HS+1.2 Electrical Terminal Strip, H Type Terminal Block
Detailed Product Description
| Product | Terminal Strip | |
| Base | With 1.2mm Elevated Base | |
| Material | ||
| Screws | Steel Zinc Plated | |
| Clamp | Cladded Copper Strips Zinc plated | |
| Poles Available | 2~12P | |
| Housing: | PA66 UL94V-2 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 450V |
| Rated current: | 20A | 30A |
| Wire | 0.5~4.0mm2 | |
| Screw | M2.6x5 | |
| Dimensions | A:94.20mm B 17.20mm C 14.20mm D 8.00mm | |
| E 3.00mm F2.90*3.40mm | ||
| Mechanical | ||
| Temp. Range: | -40°C~+105 °C | |

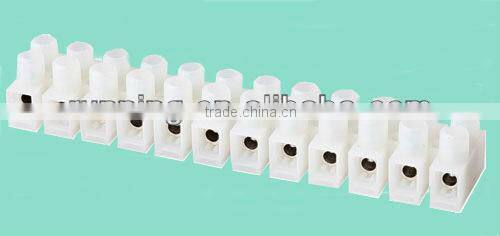

PRODUCT PICTURE

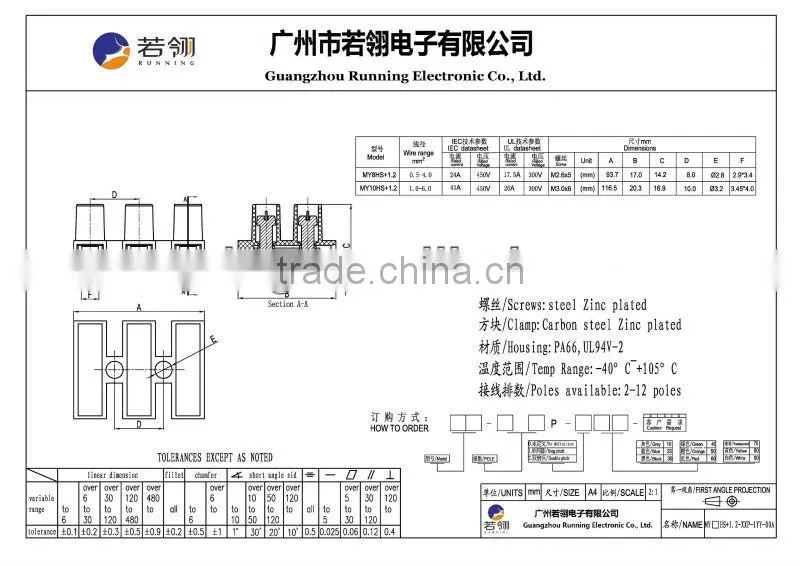

PRODUCT DRAWING
