Stainless Steel 5 Pin Terminal Block Pluggable Pitch 5.08mm
US$ 0.01 - 1
MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Pluggable terminal block OEM
Model Number:
Pluggable Terminal Block TB2EDGKDM
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NING BO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brass M2.0 Pitch 5.08mm Pluggable Terminal Block ConnectorUS$ 0.01 - 1MOQ: 1 Pack -
Pitch 5.0mm Pluggable Connector Terminal BlockUS$ 0.01 - 1MOQ: 1 Pack
-
Electrical Terminal Block Pitch 7.50mm 7.62mm Pluggable ConnectorsUS$ 0.01 - 1MOQ: 1 Pack
-
Pluggable Female Terminal Block Pitch 7.50mm 7.62mm 5 PINUS$ 0.01 - 1MOQ: 1 Pack
-
5 PIN Pluggable Terminal Block ConnectorsUS$ 0.01 - 1MOQ: 1 Pack
Place of Origin
Zhejiang, China
Brand Name
Pluggable terminal block OEM
Model Number
Pluggable Terminal Block TB2EDGKDM
Type
Other, Pluggable terminal block, Pluggable terminal block connector
Specifications
Stainless Steel 5 Pin Terminal Block Pluggable Pitch 5.08mmCE, ROHS, VDE, SGS certificates
Door to door delivery service
Stainless Steel 5 Pin Terminal Block Pluggable Pitch 5.08mm
Detailed Product Description
| Product: | Pluggable Terminal Block | |
| Pitch: | 5.08mm | |
| Material | ||
| Clamp: | Phosphor bronze,Ni plated | |
| Shrapnel: | Stainless steel | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 450V |
| Rated current: | 15A | 20A |
| Wire range: | 28~14AWG 2.5mm2 | |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC 2000v/ 1 Min | |
| Mechanical | ||
| Temp. Range: | -40°C~+105°C | |
| Strip length: | 7~8mm | |

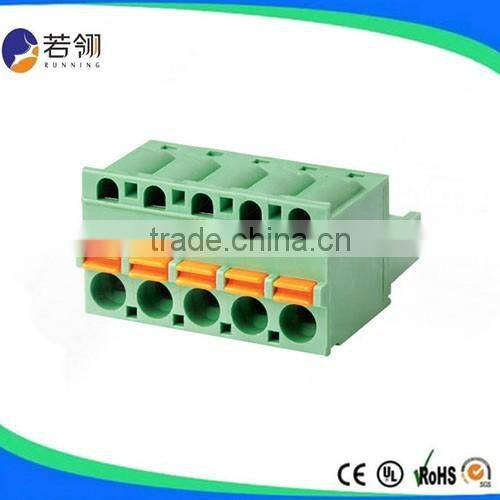

PRODUCT PICTURE

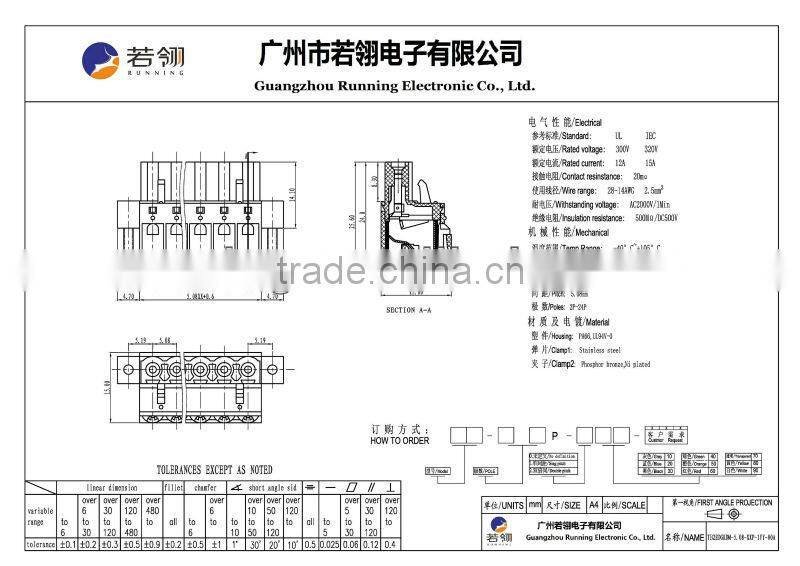

PRODUCT DRAWING
WORKSHOP
If you do not find the exact items your needs pls feel free to contact us.And kindly give us the picture, item NO. or drawing, so we can give you our best service. Thank you.
