Electrical Brass M3.0 Terminal Block Pluggable Connectors Pitch 5.0mm 5.08mm
US$ 0.01 - 1
MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Pluggable terminal block OEM
Model Number:
Pluggable Terminal Block TB2EDGKAM-5.0/5.08
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NING BO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Green 7 PIN Terminal Block Pluggable Connectors Pitch 10.0mm 10.16mmUS$ 0.01 - 1MOQ: 1 Pack -
Plug-in Terminal Block Pitch 2.5mmUS$ 0.01 - 1MOQ: 1 Pack
-
Plug-in Terminal Block Pitch 10.0mm 3 PinUS$ 0.01 - 1MOQ: 1 Pack
-
Electronical Nut Brass Pluggable Terminal Block Pitch 7.50mmUS$ 0.01 - 1MOQ: 1 Pack
-
Pitch 5.08mm Brass Plug-in Terminal Block Connectors Quality ChoiceUS$ 0.01 - 1MOQ: 1 Pack
Place of Origin
Zhejiang, China
Brand Name
Pluggable terminal block OEM
Model Number
Pluggable Terminal Block TB2EDGKAM-5.0/5.08
Type
Other, Pluggable terminal block, Pluggable terminal block connector
Specifications
Electrical Pluggable Terminal Block Connectors pitch 5.0/5.08mmCE, ROHS, VDE, SGS certificates
Door to door delivery service
Electrical Brass M3.0 Terminal Block Pluggable Connectors Pitch 5.0mm 5.08mm
Detailed Product Description
| Product: | Pluggable Terminal Block | |
| Pitch: | 5.0mm 5.08mm | |
| Material | ||
| Screws: | M3.0 Steel Zn plated | |
| Clamp: | Phosphor bronze,Ni plated | |
| Cage: | Brass,Ni plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 450V |
| Rated current: | 15A | 20A |
| Wire range: | 28~14AWG 2.5mm2 | |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC 2000v/ 1 Min | |
| Mechanical | ||
| Temp. Range: | -40°C~+105°C | |
| Max Soldering: | +250°C for 5 Sec | |
| Torque: | 0.5Nm/4.43Lbin | |
| Strip length: | 7~8mm | |

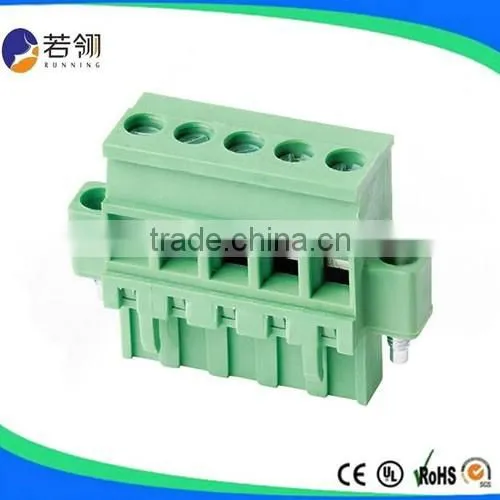

PRODUCT PICTURE
PRODUCT DRAWING
WORKSHOP
If you do not find the exact items your needs pls feel free to contact us.And kindly give us the picture, item NO. or drawing, so we can give you our best service. Thank you.
