Specifications
1.27mm 180 Degree Pin Headerce, rohs certificates
eco-freindly material
Hiah quality Fast delivery
Free sample
1.27mm Single Row 180 Degree Pin Header H=2.5
Advantage
1.We are professional supplier.
2.We work with dozens of factories to ensure competitive price
3.Inspections:100%test before delivery.
4.Free samples for your test
5.OEM/ODM are acceptable
6.Fast delivery
7.Door to door service
8.trail order&small order are acceptable
Product Specification
1.27mm 180 Degree Pin Header | |
Pitch |
5.08mm,3.96mm,2.54mm,2.0mm,1.27mm,1.0mm or 0.8mm |
Insulator Material |
PBT,PA6T,LCP |
Terminal Material |
Phosphor Bronze or Brass |
Contact Plating |
Gold or Tin |
No. of position |
Single Row:01~40Pin,Dual Rows: 02~80Pin |
Withstanding Voltage |
500V AC/1 Min. |
Current Rating |
1~3Amp |
Working Temperature |
-40~105°C |
Sample Delivery time |
2~3 Days,free |
Production Delivery time |
Within one week |
| 1.27mm 180 Degree Pin Header |
| Material: |
| Housing: 30% Glass filled PBT UL94V-0 |
| Contacts: Brass or Phosphor Bronze |
| Plating: Gold plated: 0.8u" over 50u" nickel |
| Electrical Characteristics: |
| Current Rating: 0.75AMP |
| Insulator Resistance: 1000mΩ min |
Withstanding Voltage: 500V AC/DC |
| Contact Resistance: 30mΩ max. |
| Operating Temperature: -45ºC~+105ºC |
| MOQ:Small order for 1.27mm 180 Degree Pin Header |
| Delivery:Fast delivery for 1.27mm 180 Degree Pin Header |
| Free sample for 1.27mm 180 Degree Pin Header |

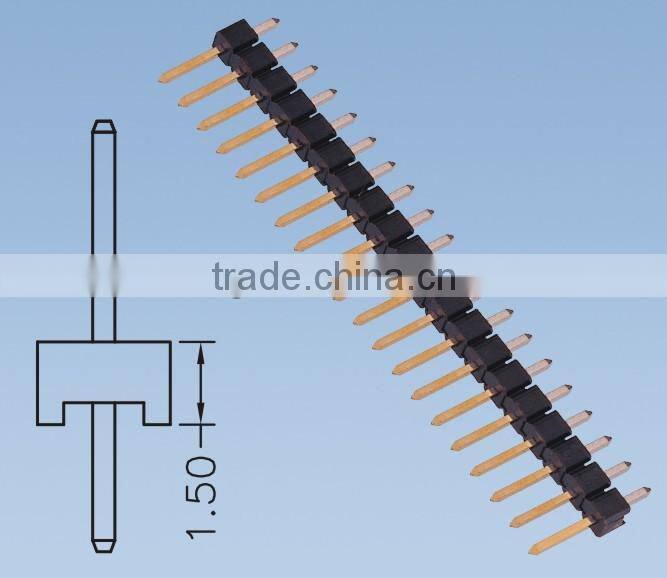

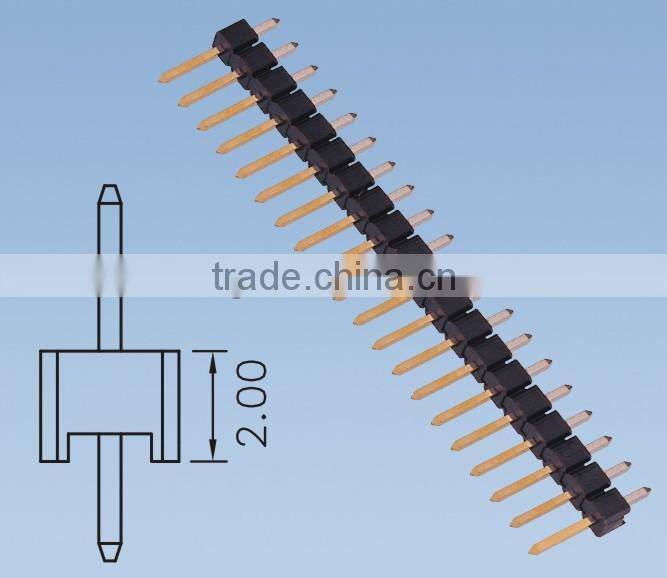

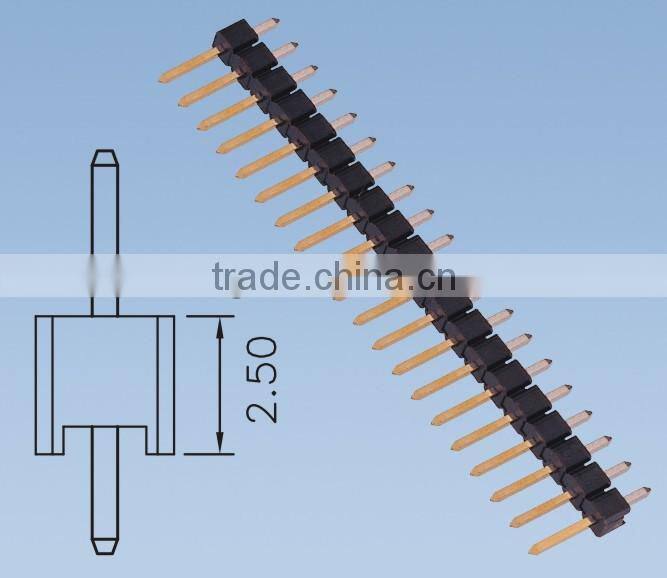

Product Pictures

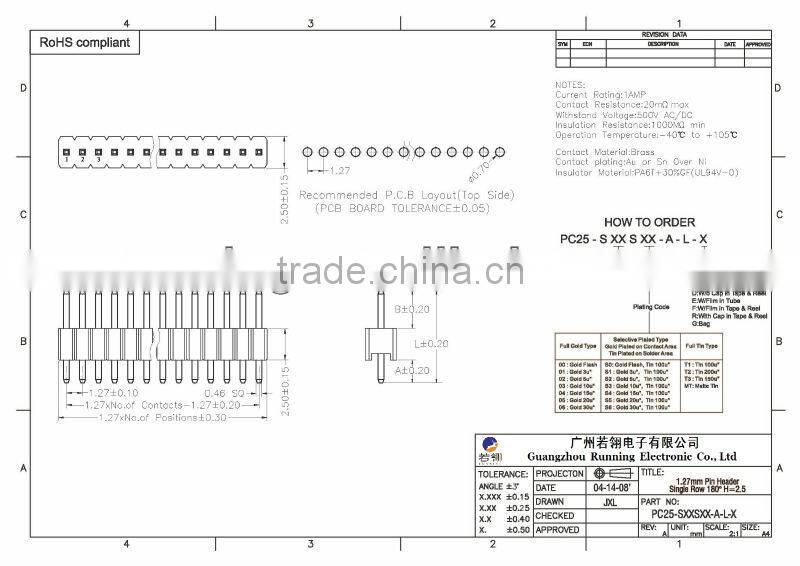

Product Technical Drawing
