Pitch: 1.27mm SMT Type Pin Header With Cap Double Row Double Body H=1.6
- 100000 Piece / Pieces per Month
- NINGBO /SHANGHAI
- Credit Card
- Website Selling Bnc Connector Auto Electrical Wire Connector
- Sell OnlineAutomotive Lock Wire Joint Connector
- OEM/ODM Factory Direct 2Mm Wire To Board Connector
- Experienced Factory Automotive Jst Connector Wire To Wire
- China Professional Automotive 2 Pin Male Female Jst Connector
- Custom Product Wire Spring Socket Connector
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Pitch: 1.27mm Pin Header SMT | Model Number: | Pitch: 1.27mm Pin Header SMT |
Type: | Other, Pitch: 1.27mm Pin Header SMT, Pitch: 1.27mm Pin Header SMT | Application: | PCB | Gender: | Other, Male, Male |
Product Description
Specifications
Pitch: 1.27mm Pin Header SMTce, rohs certificates
eco-freindly material
Hiah quality Fast delivery
Free sample
Pitch: 1.27mm SMT Type Pin Header With Cap Double Row Double Body H=1.6
Advantage
1. We are professional supplier. |
2. We work with dozens of factories to ensure competitive price |
3. Inspections:100% test before delivery. |
4. Free samples for your test |
5. OEM and ODM are acceptable |
6. Fast door to door delivery service |
7. Trail order and small order are acceptable |
Product Specification
Pitch: 1.27mm Pin Header SMT |
Material: |
Housing: 30% Glass filled PBT UL94V-0 |
Contacts: Brass or Phosphor Bronze |
Plating: Gold plated: 0.8u" over 50u" nickel |
Electrical Characteristics: |
Current Rating: 0.75AMP |
Insulator Resistance: 1000mΩ min |
Withstanding Voltage: 500V AC/DC |
Contact Resistance: 30mΩ max. |
Operating Temperature: -45ºC~+105ºC |
MOQ:Small order Pitch: 1.27mm Pin Header SMT |
Delivery:Fast delivery Pitch: 1.27mm Pin Header SMT |
Free Sample |

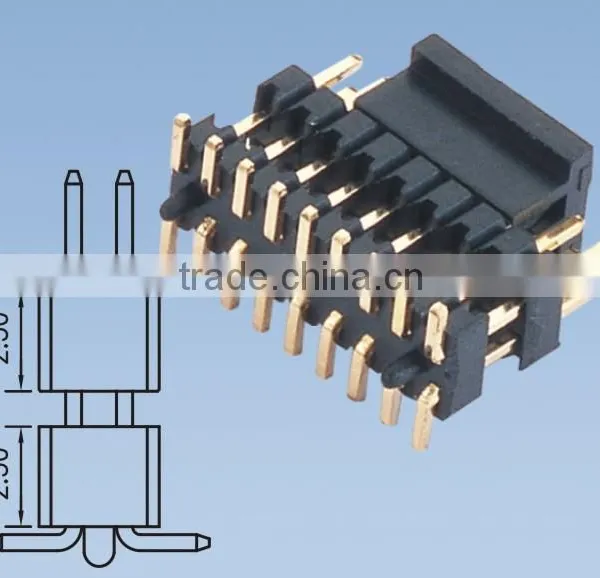

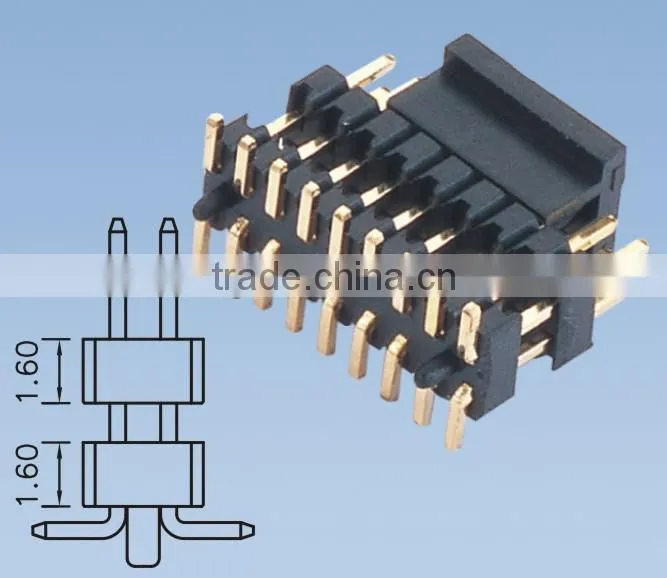

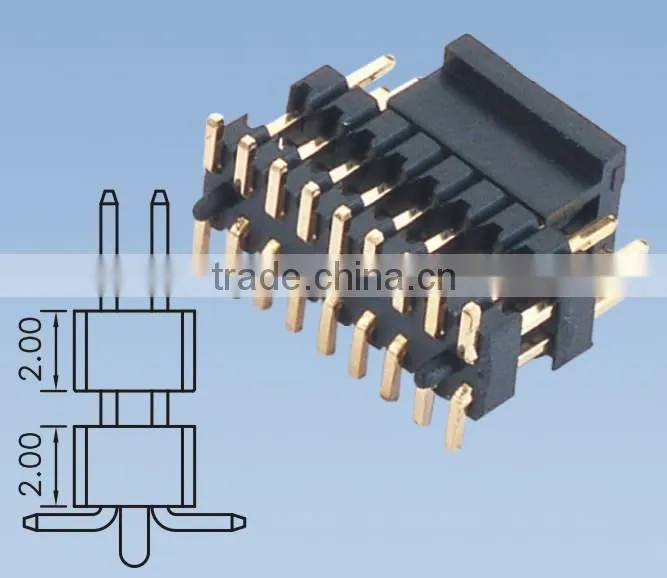

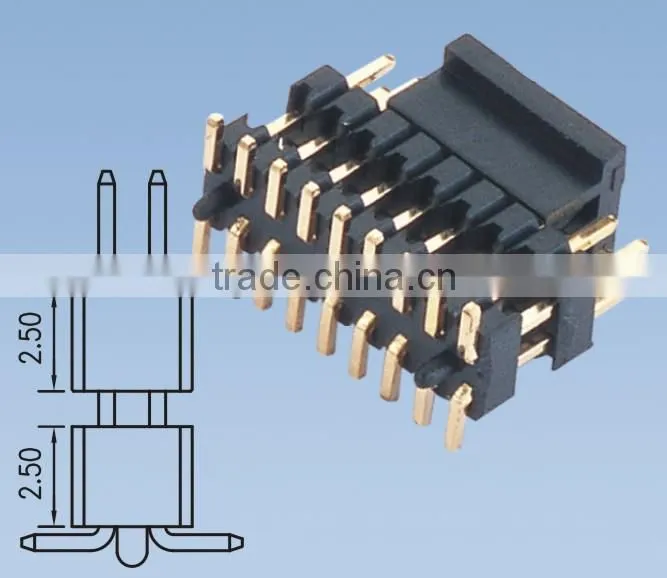

Product Pictures

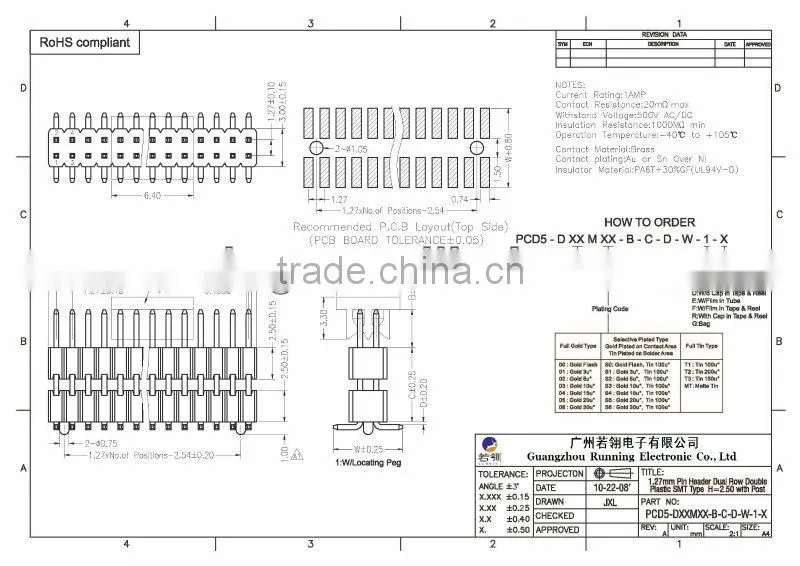

Product Technical Drawing
