Specifications
ce, rohs certificateseco-freindly material
Product Specification
1.0mm Double Insulator Pitch Pin Header Single Row 180 H=1.0
Features:
1). Pitch: 1.0mm (0.8/1.27/2.00/2.54/3.94 is available)
2). Striaght type or right angle type or SMT type.
3). No. of positioners: 1~80 single row.
4). Material: a. contact: Brass or copper alloy
b. Insulator: Nylon 6T+30G.F, UL94V-0 Rated.
(PBT/Nylon 6T/ Nylon 9T available)
5). Insulator height: 1.0mm (1.5/ 2.0/ 2.5/ 3.0 also availale)
6). Positioning pegs: with or not,decided by customer.
7). Packing: PVC bags, then put into strong carton
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 0.75AMP
Insulator Resistance: 1000mΩ min
Withstanding Voltage: 500V AC/DC
Contact Resistance: 30mΩ max.
Operating Temperature: -45ºC~+105ºC

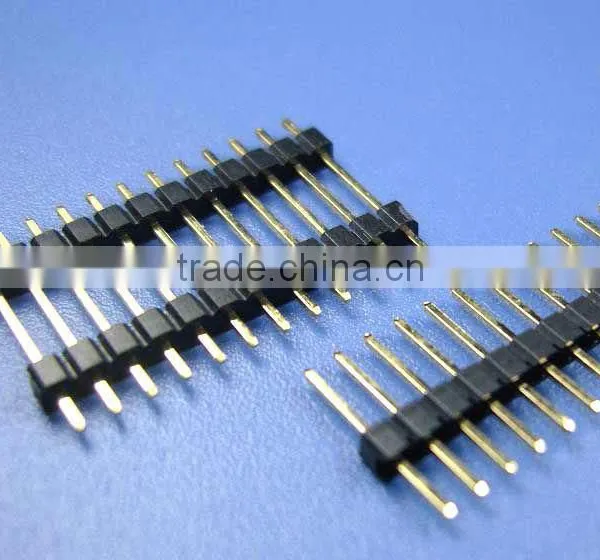

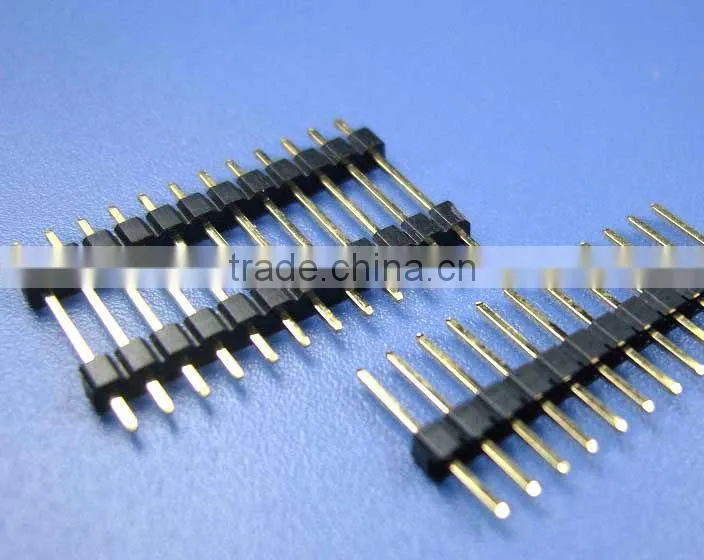

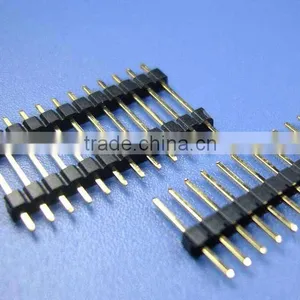

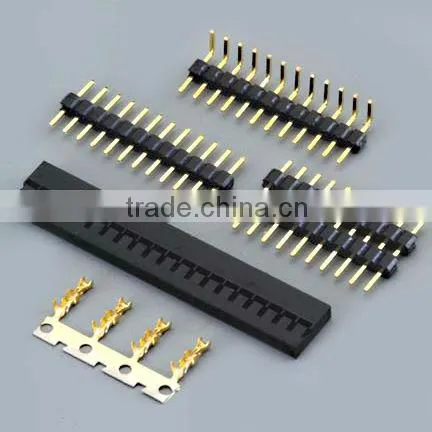

Product Pictures

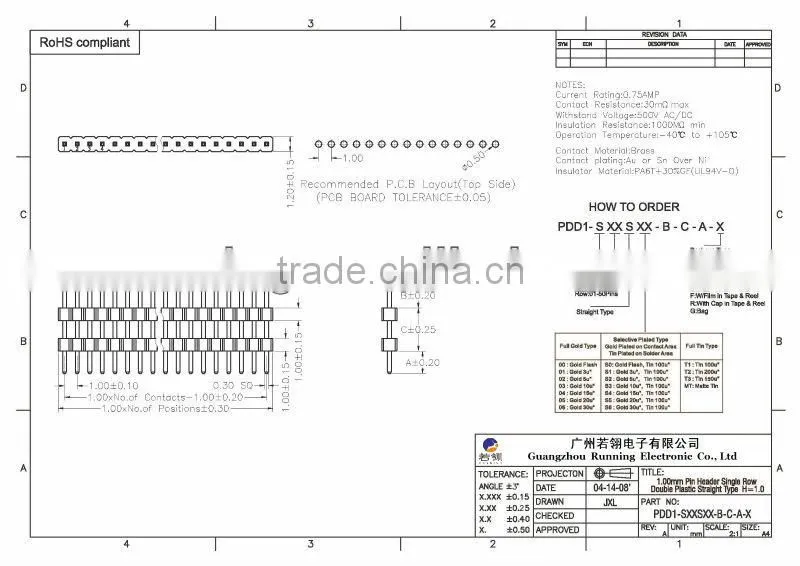

Product Technical Drawing
