Double Row SMT Pin Header H=1.5 Pitch 1.0mm
- 100000 Piece / Pieces per Month
- NINGBO /SHANGHAI
- Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | 1.0mm Pin Header | Model Number: | 1.0mm Pin Header |
Type: | Other, 1.0mm Pin Header, 1.0mm Pin Header | Application: | PCB | Gender: | Other, Male, Male |
Product Description
Specifications
Double Row SMT Pin Header H=1.5 Pitch 1.0mmce, rohs certificates
eco-freindly material
Hiah quality Fast delivery
Double Row SMT Pin Header H=1.5 Pitch 1.0mm
Advantage
1. We are professional supplier. |
2. We work with dozens of factories to ensure competitive price |
3. Inspections:100% test before delivery. |
4. Free samples for your test |
5. OEM and ODM are acceptable |
6. Fast door to door delivery service |
7. Trail order and small order are acceptable |
Product Specification
Pitch 1.0mm Pin Header |
Material: |
Housing: 30% Glass filled PBT UL94V-0 |
Contacts: Brass or Phosphor Bronze |
Plating: Gold plated: 0.8u" over 50u" nickel |
Electrical Characteristics: |
Current Rating: 0.75AMP |
Insulator Resistance: 1000mΩ min |
Withstanding Voltage: 500V AC/DC |
Contact Resistance: 30mΩ max. |
Operating Temperature: -45ºC~+105ºC |
MOQ:Small order 1.0mm Pin Header |
Delivery: Fast delivery 1.0mm Pin Header |

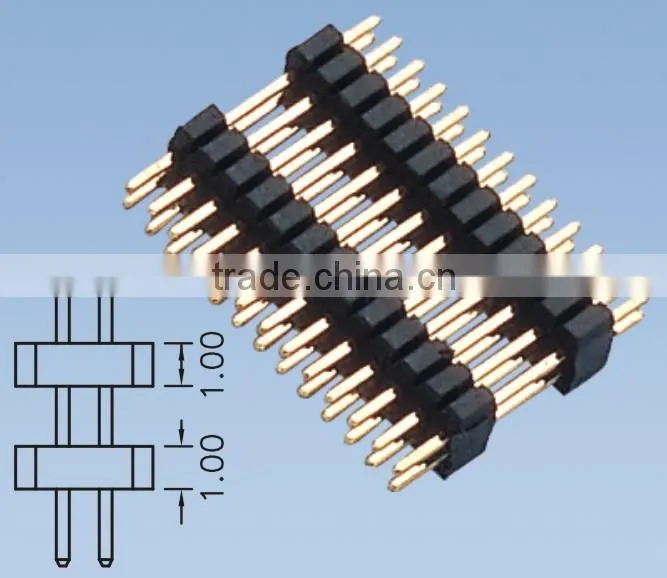

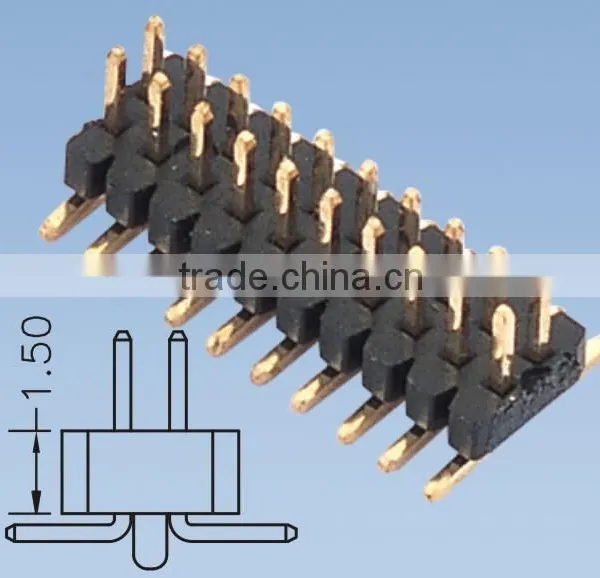

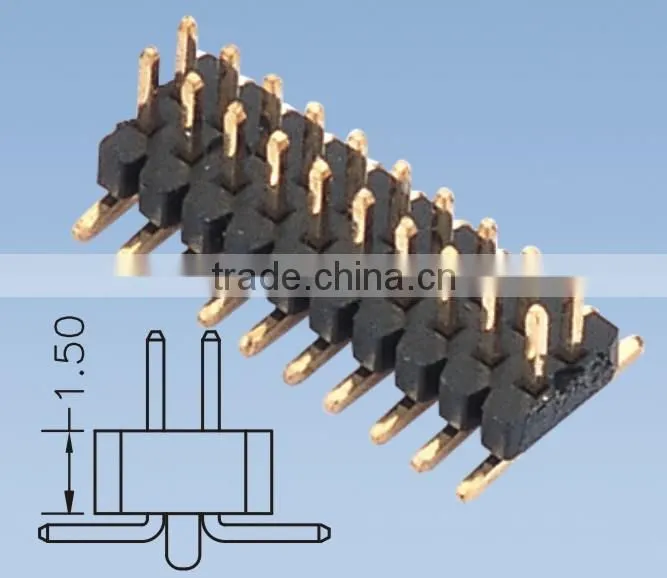

Product Pictures

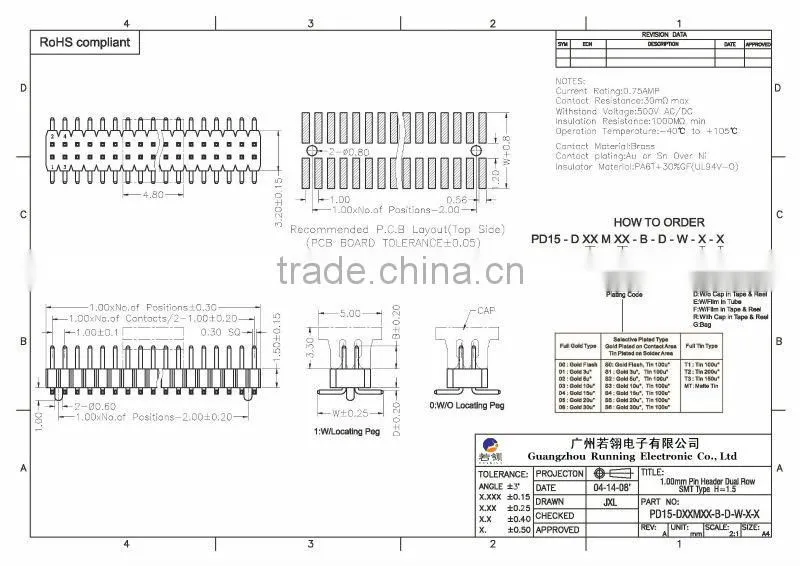

Product Technical Drawing
Related Product
Certificates
Pckaging and Shipping
Factory Show
About Us
Guangzhou Running Electronic Co., Ltd. is a professional supplier of electronic components, such as
pluggable/barrier/screw/feed through terminal blocks, solderless breadboards, pin header, etc. With highquality
products, excellent services and a good reputation, we have wongreat support from customers around the world.
Thus, our company scale has expanded. At present, we export products to the USA, Brazil, Italy,etc. We have
established longterm, stable and good business relationships with many manufacturers and wholesalers around the
world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual
benefits. Please feel free to contact us for more details. |
Market Distribution
About Feedback
Our company adhere to provide customers with reliable quality, the cost advantage of
electronic connectors. We are adhering to the "customer first" purpose and we maintain high
standards of excellence and strive for 100% customer satisfaction to achieve mutual benefit and
win-win process services to customers and grow together running Electronics relentless pursuit.
So feedback is very important for us. Any suggestions and feedback on our products are
welcome here!
If you do not find the exact items your needs pls feel free to contact us.And kindly
give us the picture, item num. or drawing, so we can give you our best resolves.
Thank you |
