DIN41612 Connector With 2x22 Pin B Type

DIN41612 Connector With 2x22 Pin B Type thumbnail-1
DIN41612 Connector With 2x22 Pin B Type photo-1
US$ 0.01 - 5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
DIN41612 Connector
Model Number:
DIN41612 Connector RL1-D2Q
Contact Supplier Request Quote Chat Now
Guangzhou Running Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name DIN41612 Connector
Model Number DIN41612 Connector RL1-D2Q
Type SCART
Application Other, Audio & Video
Gender Other, Male, MALE FEMALE

Specifications

DIN41612 Connector With 2x22 Pin B Type
ROHs CE SGS VDE complaint
Door to door delivery service

DIN41612 Connector With 2x22 Pin B Type



Product Specification



Materials:
Insulator:     Glass-filled thermoplastic PBT UL94V-0
Contact:       Male-Brass / Female-Phosphor Bronze
Plating:     full gold or selected gold in mating area.
Electrical:
Contact Resistance:             30 mΩ  Max.  Insulator
Insulation Resistance:                      1000 MΩ  Min. at 500 VDC

Withstand Voltage:

    1000 VAC for 1 minute
Current Rating:    2 AMP
Volatge Rating:       250 VAC
 Temperature:    -55ºC~+105ºC

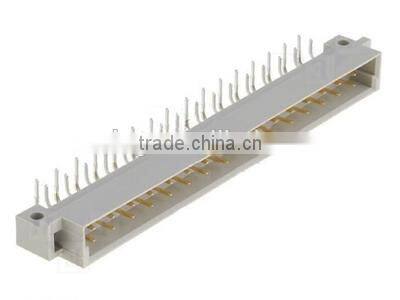

Product Image

DIN41612 Connector With 2x22 Pin B Type

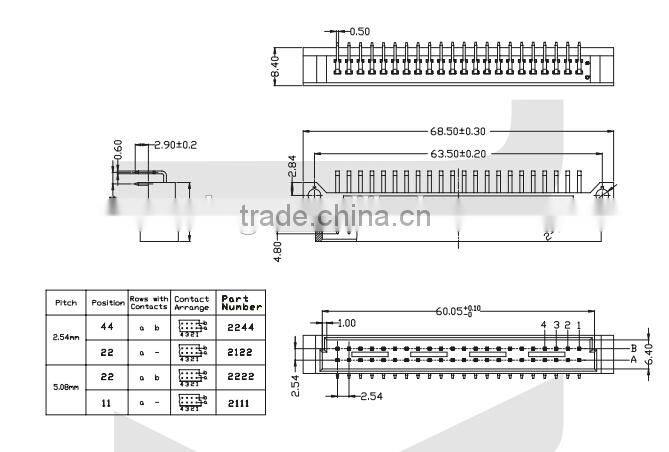

Technical Drawing:

DIN41612 Connector With 2x22 Pin B Type

Our Advantages:



1. We are professional supplier.

2. We work with dozens of factories to ensure competitive price

3. Inspections:100% test before delivery.

4. Free samples for your test

5. OEM and ODM are acceptable

6. Fast door to door delivery  service

7. Trail order and small order are acceptable





Our Factories:

DIN41612 Connector With 2x22 Pin B Type
