Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Male IDC Type Micro Match Connector CN1-204E
Male IDC Type Micro Match Connector CN1-204E
US$ 0.01 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
CN1-204E
Gender:
Male
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Female Micro Match Socket Connector KLS1-204F, DIP 180US$ 0.01 - 1MOQ: 1000 Pieces -
High Density PCB Straight Male Plug D-SUB ConnectorUS$ 0.01 - 5MOQ: 1000 Pieces
-
High Density PCB Straight Female D-SUB ConnectorUS$ 0.01 - 5MOQ: 1000 Pieces
-
Straight Male Plug 78pin D-Sub PCB ConnectorUS$ 0.01 - 5MOQ: 1000 Pieces
-
Straight D-Sub 78pin Female Socket PCB Connector Receptacle TypeUS$ 0.01 - 5MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Model Number
CN1-204E
Gender
Male
Specifications
ce, rohs certificateseco-freindly material
PRODUCT DESCRIPTION
1.27mm Micro-Match Connector,Plug,Male,IDC Type.
Order Information:
CN1-204E-XX-R
XX-No.of 04~26pin
R-Red
Material:
Housing: PA46 UL94V-0
Contacts: Phosphor Bronze
Cable: 1.27mm (0.050") pitch flat cable
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm min. at DC 250V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC

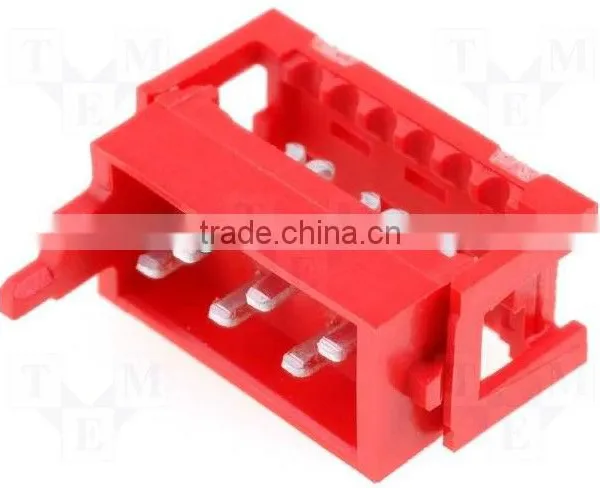

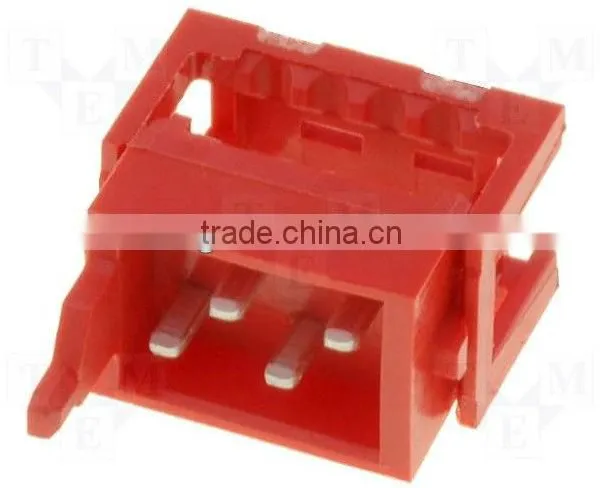

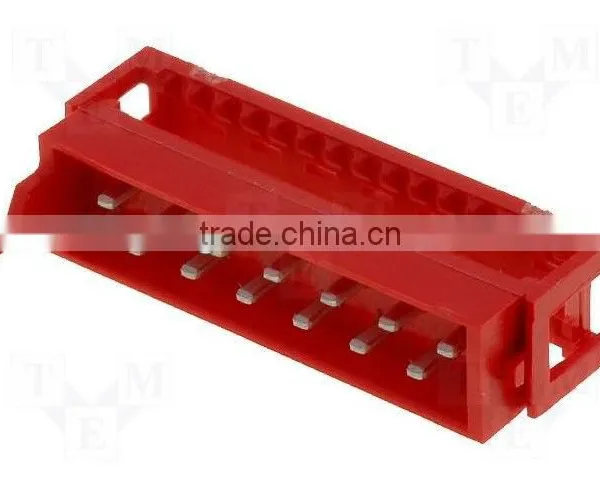

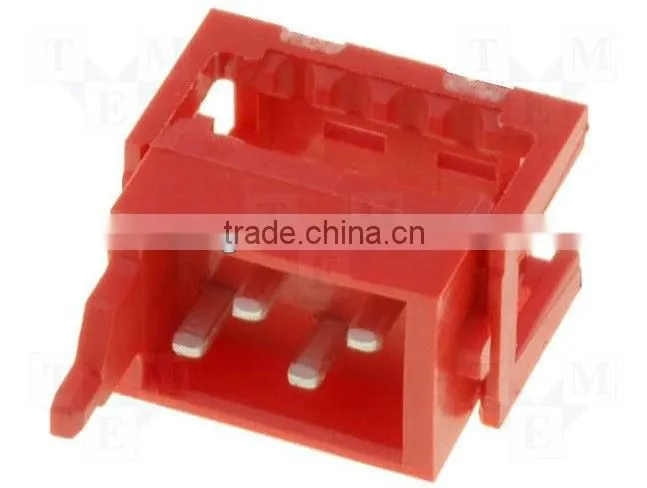

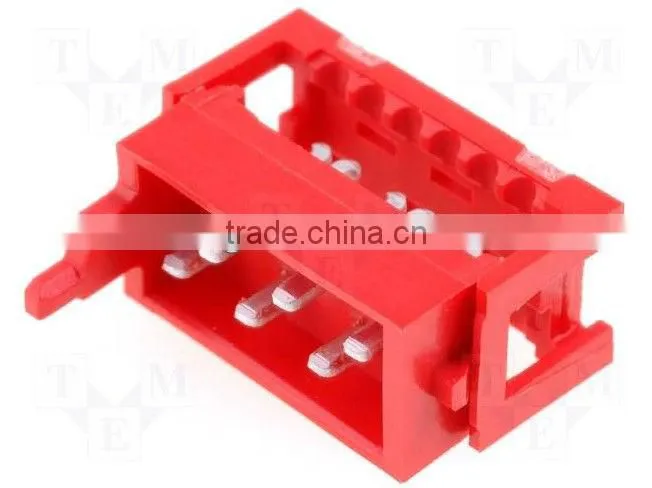

PRODUCT PICTURE

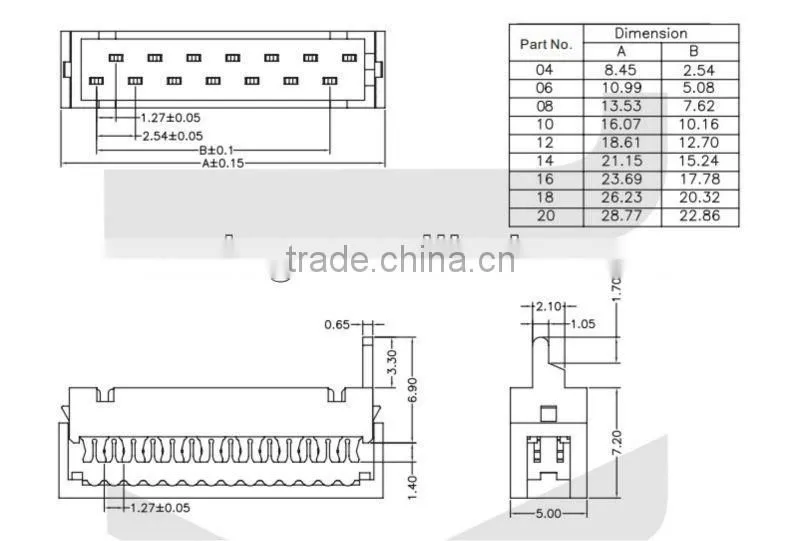

PRODUCT DRAWING
