Introduction

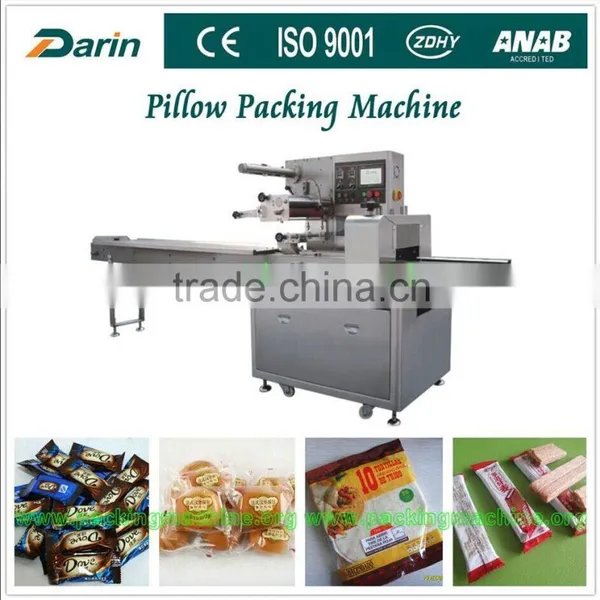

LSU-220 Flow Packing Machine is used to pack regular objects, like instant noodle, biscuit, bread, egg roll, moon cake, snow cake, spoon, cereal bar, medicine, hardware, industrial parts, paper box, plate, long tube dog snacks, etc.
Sample package
Features
1. Dual frequency conversion, Bag length can be set and cut in one step, saving time and film.
2. Reasonable construct, stable working performance, and PLC computer control, easy operation.
3. Self fault diagnosis, clear fault display.
4. High sensitivity photo cell color tracing, numerical input of cutting and sealing position for extra accuracy.
5. Positioned stop function, without sticking knife or wasting film.
Technical Parameters
Model |
LSU-220P |
LSU-350P |
LSU-420P |
LSU-620P |
Film width |
Max. 250mm |
Max. 350mm |
Max. 450mm |
Max. 600mm |
Bag length |
65-190mm or 120-280mm |
65-190mm or 120-280mm |
120-450mm |
120-450mm |
Bag width |
30-110mm |
30-160mm |
50-160mm |
50-200mm |
Production height |
5-40mm |
5-40mm |
10-80mm |
10-80mm |
Film roll diameter |
Max. 320mm |
Max. 320mm |
Max. 320mm |
Max. 320mm |
Film thickness |
0.03-0.07mm |
0.03-0.07mm |
0.03-0.07mm |
0.03-0.07mm |
Packing speed |
40-230bag/min |
40-230bag/min |
20-80bag/min |
20-80bag/min |
Power |
220V, 50/60Hz, 3.4kw |
220V, 50/60Hz, 2.4kw |
220V, 50/60Hz, 4.2kw |
220V, 50/60Hz, 4.6kw |
Weight |
500kg |
600kg |
800kg |
900kg |
Dimension |
3770 x 640 x 1360mm |
4020 x 770 x 1450mm |
4380 x 870 x 1500mm |
4380 x 970 x 1500mm |
Key Equipment Show
Certificate
Delivery
Our Office
Exhibition Fairs
