CE approved WOLF loader ZL08 WL80 mulitifunction loader with pallet fork
Manufacterer:Qingdao Zongjin Engineering Machinery Co.,Ltd
- Fully Hydostatic Driving
- CE, ROPS&FOPS Certificate
- CE certificated Engine
- Chinese factory, reliable and stable, provide you with service support any any time
Standard configuration

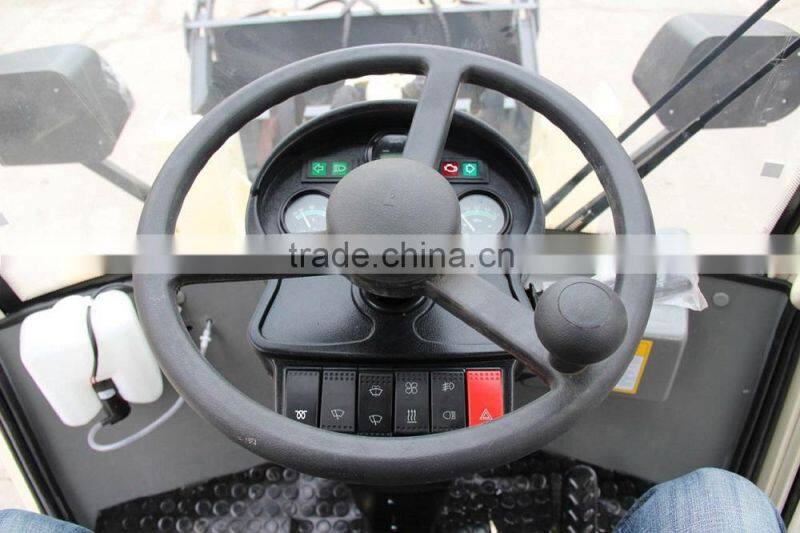

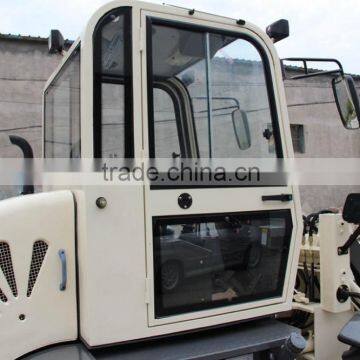

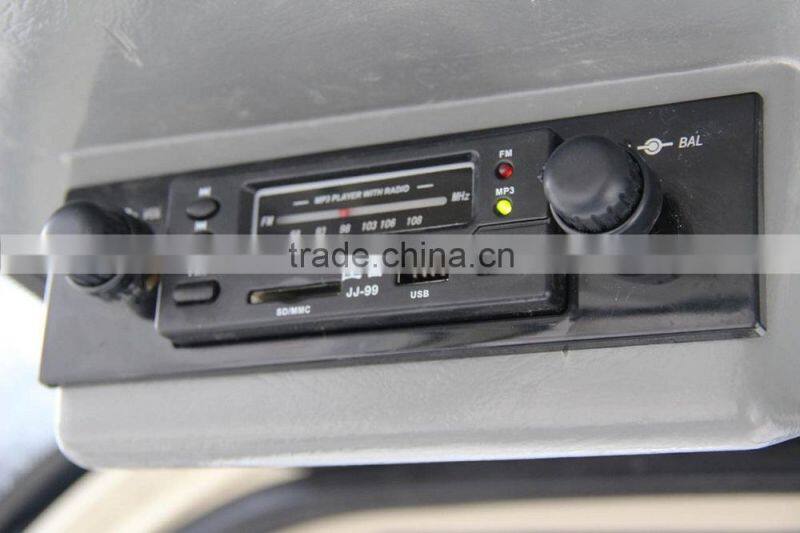

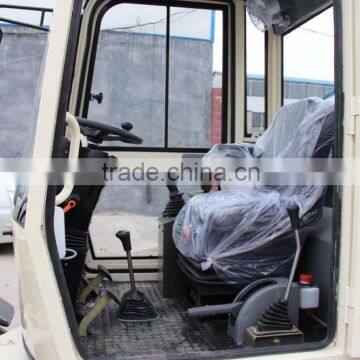

Changchai ZN385Q, 20kw,(27HP), 3 cylinders, Joystick operation, 750-16 standard tires. Manual floating function, 4x4 drive, heater inside cabin, 220V engine preheat (European connection), enlarged cabin space, more comfortable when working. back sound, radio, USB, hand brake, extinguisher, window hammer,
Mechanical transmission(clutch) & Hydrostatic transmission(Hydraulic motor drives the loader running)
Optional Tire
10-16.5
31x15.5-15 Vacuum Wider Tire

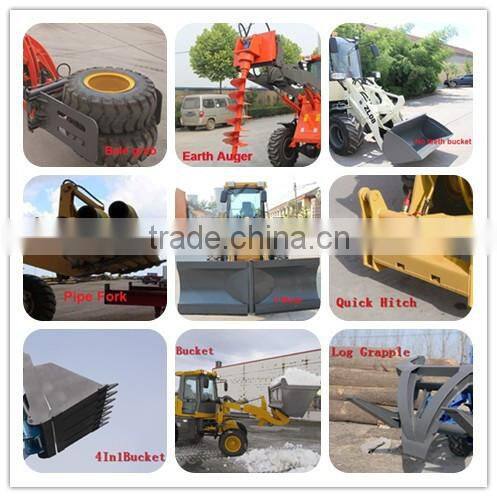

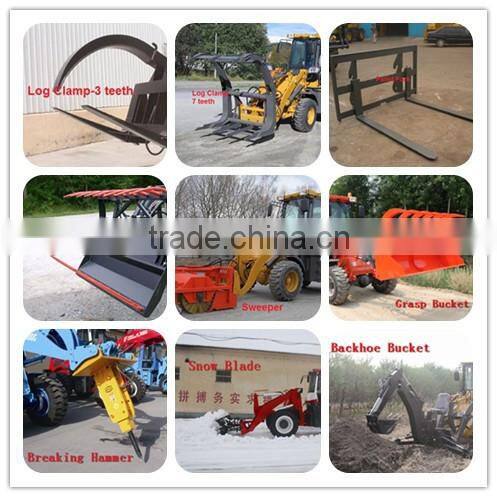

Optional Attachments
Rear Video Camera |
Change cabin normal light to be LED light |

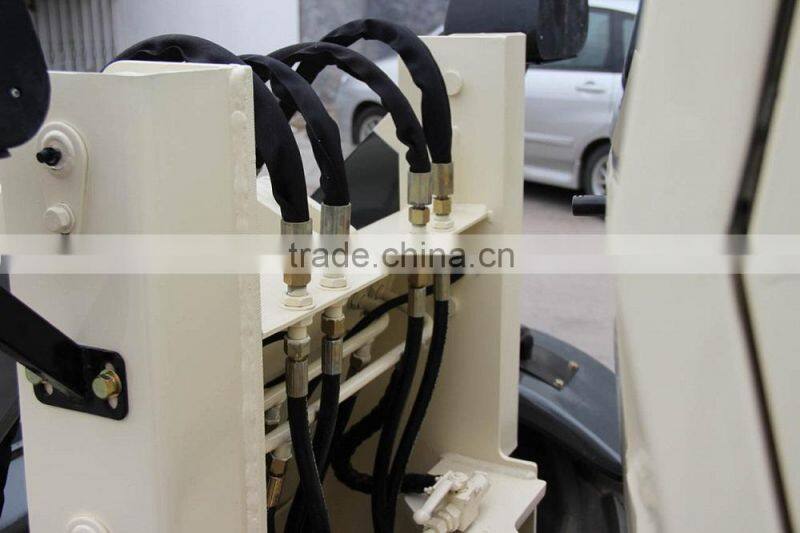

Hydraulic Line(per one more) |
Electronic control on joystick |
Quick hitch |
4 in 1 bucket |
Pallet fork |
Hydraulic adjustable pallet fork |
Snow bucket |
Snow blade |
V Blade |
Snow blower |
Sweeper(for 08 hydrostatic) |
Closed street sweeper |
Dustpan bucket |
Screening bucket |
Drum clamp |
Backhoe |
Bale grab |
Mixing bucket |
Grass fork |
Grass bucket |
Bale spear (2 or 3 teeth) |
Pitch fork |
New European grass fork |
Log clamp – A&H& 3 teeth |
Detailed Specification of WOLF WL80 ZL08 wheel loader
Basic Parameters |
overall weight(kg) |
2000 |
L×W×H(mm) |
4280×1460×2300MM |
|
rated bucket capacity(m3) |
0.6 |
|
Rated load(kg) |
800 |
|
dump height (mm) |
2200 |
|
Lifting height(mm) |
2650 |
|
Engine |
Model |

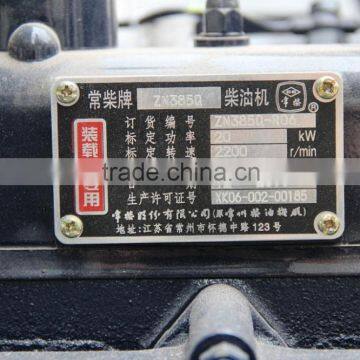

Changchai ZN385Q |
Type |
direct injection, horizontal, water-cooled, four stroke, 3 cylinders |
|
Rated power(KW) |
20KW |
|
Rated speed(r/min) |
2200 |
|
Working system |
Distribution of work valve |
DF15.2C |
Working pump |
CBF32 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
280±1 |
|
Min turning radius(mm) |
3200 |
|
Tires |
Standard tires |
750-16 |
Optional tires |
10-16.5 31X15.5-15 |

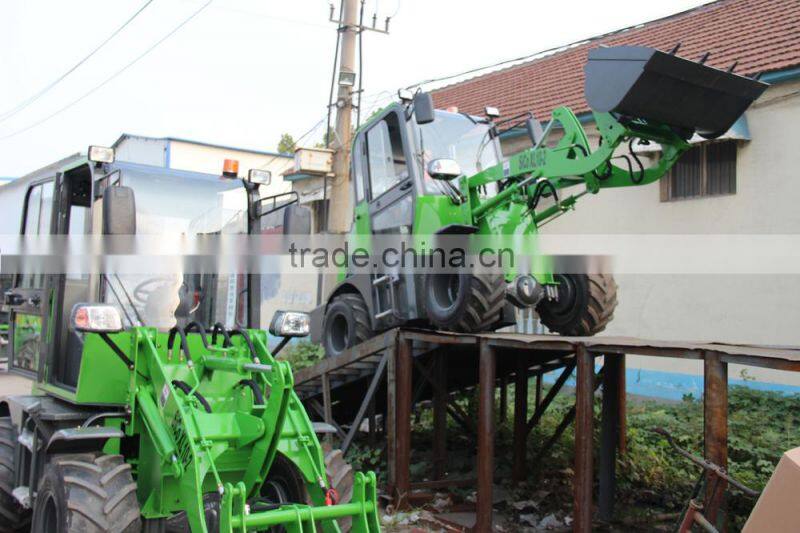

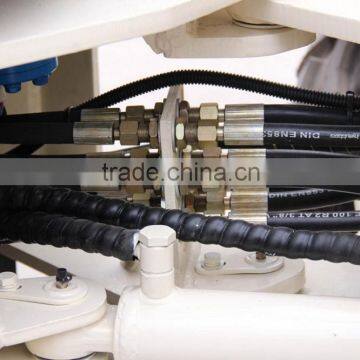

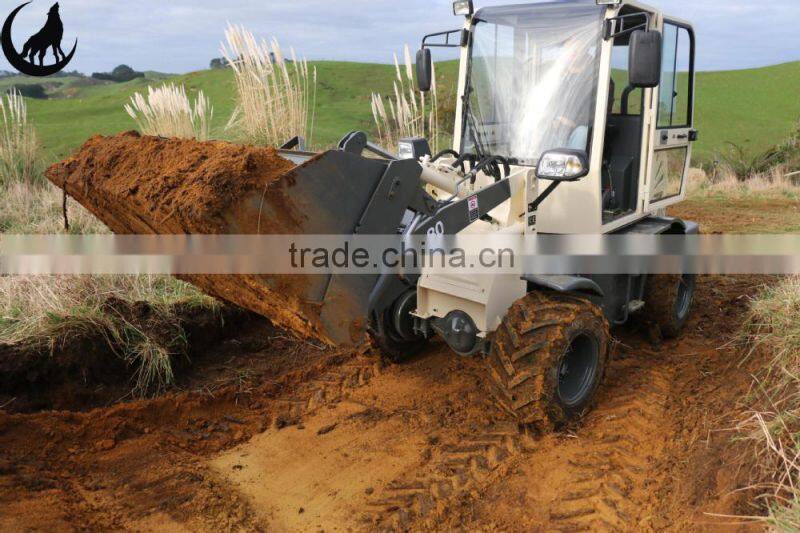

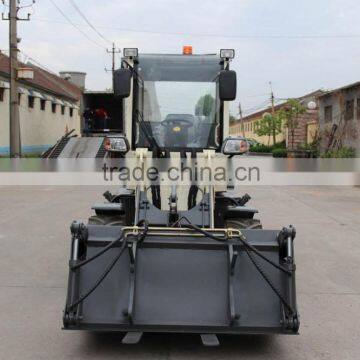

Detailed pictures

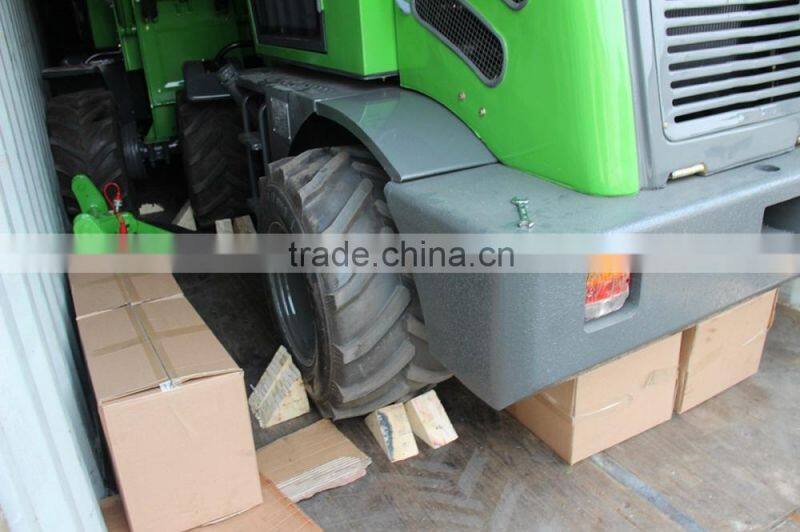

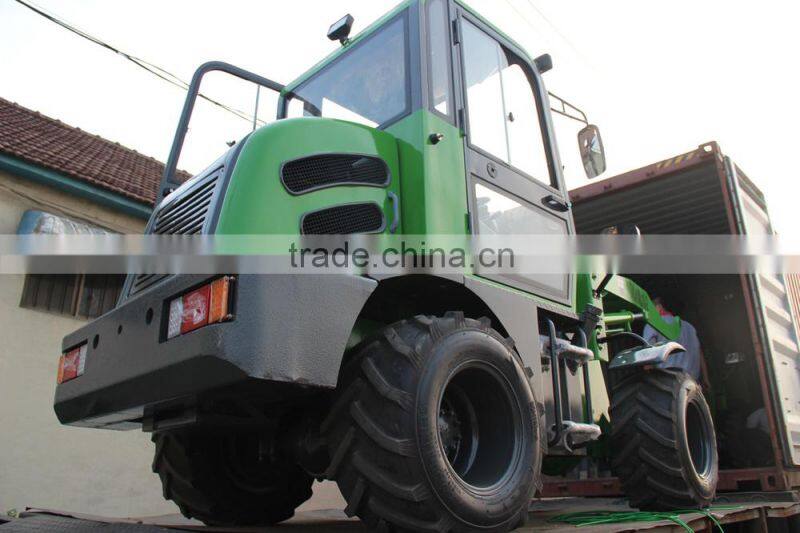

1 set in a 20GP and 4 sets in a 40HQ. Triangle wood and 10mm wire fixed.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
|
|
|
|
|
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.
The information above are just for you referrence ,if you want to know more about our products and have questions about them,
Contact me right now for more information! Online 24 hours a day! I am delighted to serve for you!
