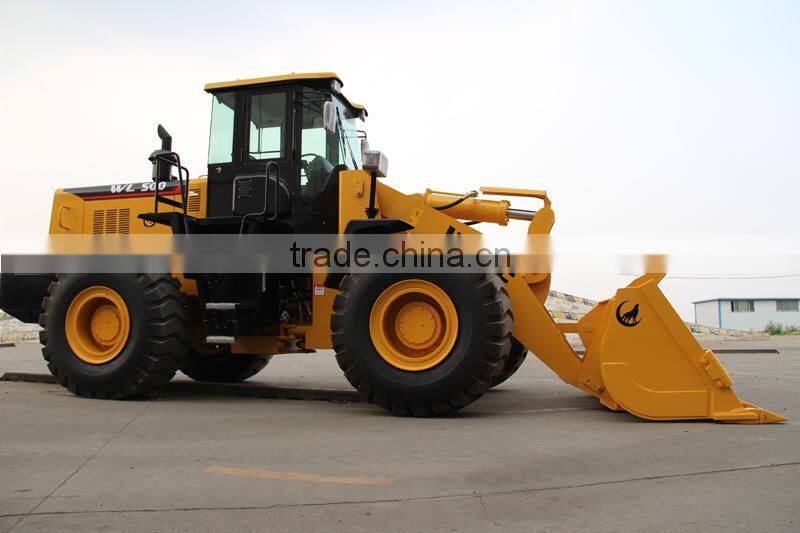

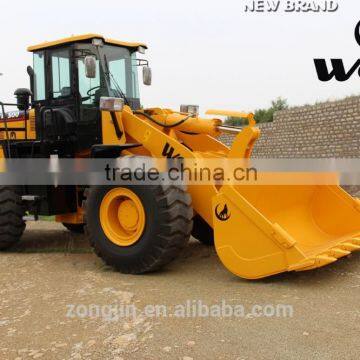

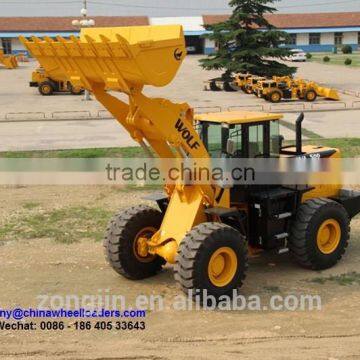

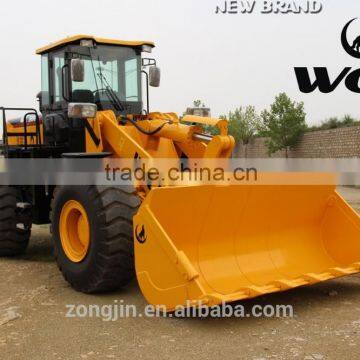

5T wheel loader 220HP construction loader
Standard Configuration:
Weichai WD10G220E22 engine 162kw, hydraulic joystick, Air condition,
Hangchi ZL50 gearbox, Feicheng axle, Jinan Pump(famous brand in China)

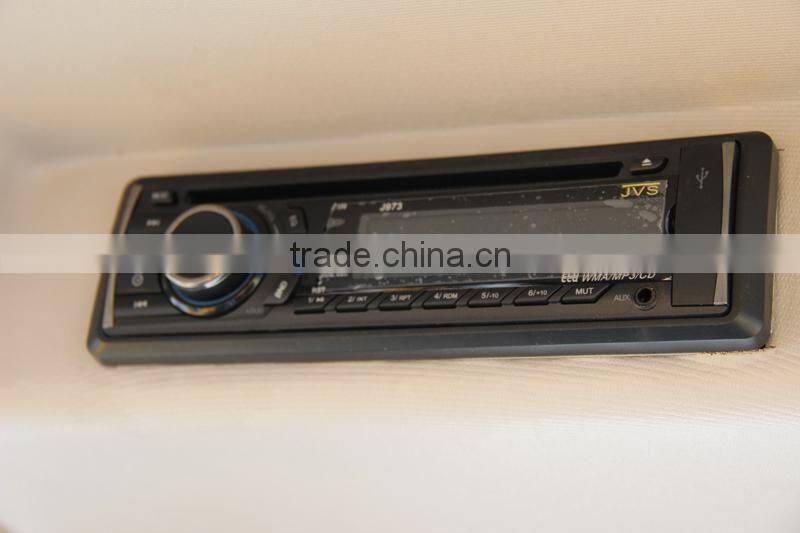

adjustable steering wheel and seat, bucket can be level automatic, radio, fan. 23.5-25 tires,
Optional Engine:
Shangchai C6121(CAT 3306B technology) engine |
Cummins 6CTA8.3-C215 engine |
Optional Configuration:
Hangchi ZF WG180 |
Liuzhou Original ZF 4WG200 |
Speficiation of WOLF Loader WL500 with CE certification
Performance |
Rated load |
5000kg |
Overall weight |
17100kg |
|
Rated bucket capacity |
3m3 |
|
Maximum dump height |
3150mm |
|
Maximum dump reach |
1250mm |
|
Overall dimension (L×W×H) |
7920×3050×3400mm |
|
Engine |
Model |
Weichai WD10G220E22 Shangchai SC11CB220G2B1 Cummins 6CTA8.3-C215 |
Type |
lnline water cooling dry cylinder injection |
|
No. of cylinder-bore/stroke |
6-126×130mm |
|
Rated power |
162kw--2200r/min |
|
Transmission system |
Torque converter |
YJ375 |
Gearbox mode |
Planetary |
|
Gear shift |
2 forward shift 1reverse shift |
|
Maximum speed |
38km/h |
|
Wheel base (mm) |
3200mm |
|
Wheel tread |
2250mm |
|
Minimum ground clearance |
450mm |
|
Hydraulic system |
System working pressure |
18MPa |
Boom lifting time |
5.95±0.2s |
|
Fuel tank capacity |
300L |
|
|
Brake system |
Service brake |
air over hydraulic disc brake on 4 wheels |
Parking brake |
manual parking brake |
|
Tyre |
Type specification |
23.5-25 |
1 set in a 40HQ(needs to remove cabin, tire, axle, oil tank, air condition, etc.).
Triangle wood and 10mm wire fixed.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
|
|
| |
|
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.
Contact me right now for more information! It is my honor to serve for you.
