WOLF New Brand 5 Ton Loader With Shangchai C6121 Engine 162kw
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
WOLF New Brand 5 Ton Wheel Loader Shangchai Weichai Engine 220hp 215hp Loader
-
WOLF Loader WL 5000kg 5 Ton Wheel Loader With Joystick Air Condition
-
WOLF Loader 5 Ton Wheel Loader With 23.5-25 Tires Pallet Fork Loader
-
WOLF Loader 5 Ton Wheel Loader With 23.5-25 Tires Log Grapple
-
WOLF Loader 5 Ton Wheel Loader Pallet Fork Loader
-
WOLF WL500 ZL50G 5 Ton Wheel Loader Front End Loader
Product Details
| Condition | New | Brand Name | WOLF | |
| Model Number | WL500 ZL50 | Place of Origin | Shandong, China | |
| Type | Other, Front Loader, Articulated hydraulic steering | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7960x3070x3400mm | Rated Load | 5000KG | |
| Certification | CE TUV PT EPA ROPS&FOPS | Warranty | 1 year | |
| After-sales Service Provided | Overseas service center available |
Product Description

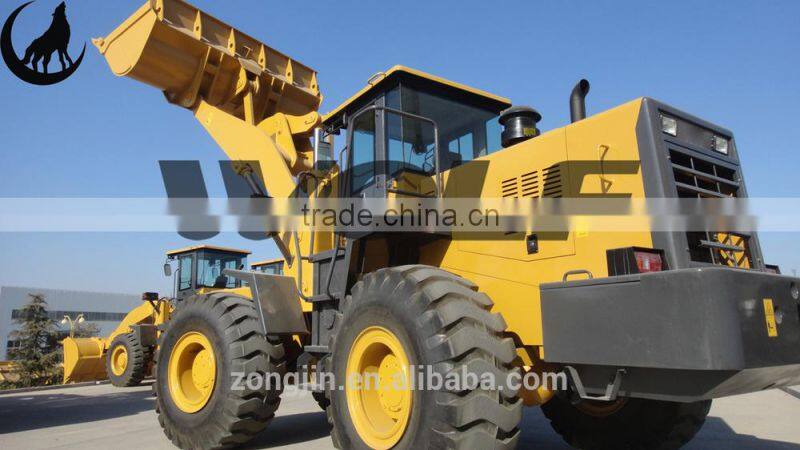

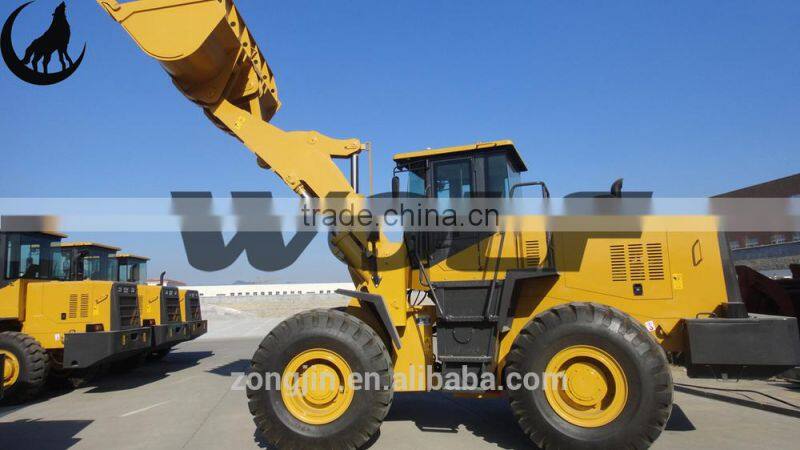

WOLF new brand 5 ton loader with Shangchai C6121 engine 162kw
Standard Configuration:
Shangchai C6121 engine 162kw,
Hangchi ZL50 gearbox, Feicheng axle, Jinan Pump(famous brand in China)

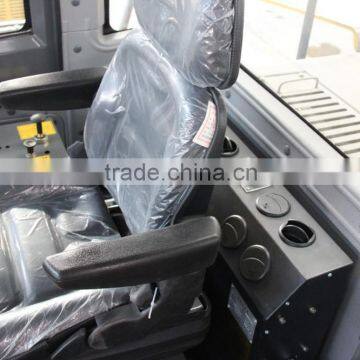

adjustable steering wheel and seat, bucket can be level automatic, radio, fan. 23.5-25 tires,
Optional Engine:
Cummins 6CTA8.3-C215 engine

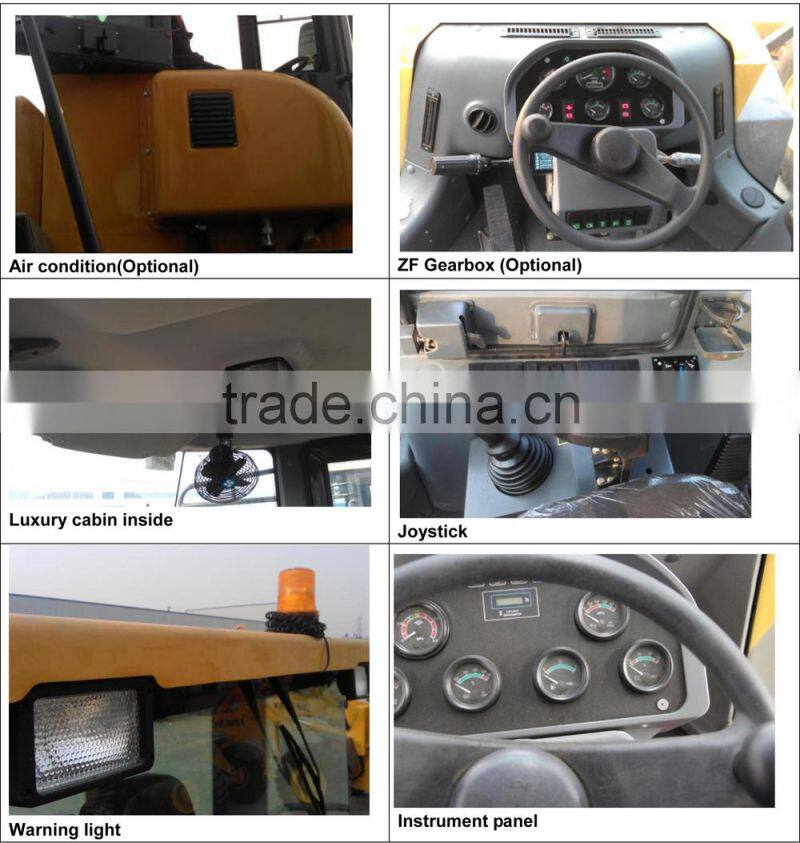

Optional Configuration:
1. ZF Technology Gear Box (Model 4WG180);
2. ZF Licensed Gear Box (Model 4WG200);
3. Hydraulic Joystick Control;
4. Air Conditioner
5. Joystick
Speficiation of WOLF Loader WL500 with CE certification
Item | Specification | Item | Specifications |
Bucket capacity | 3 m3 | Min. turning radius (outside of rear wheels) | 6630mm |
Rated load | 5000 kg | steering angle | 35º (R/L) |
Dumping height | 3100 mm | Min. ground clearance | 500mm |
Dumping reach | 1280 mm | Wheel base | 3200mm |
Boom lifting time | 6 S | Tread | 2250mm |
Total cycling time | 12 S | Engine model | Shangchai C6121ZG50 |
Max. speed | 38 km/h | Rated power | 162kW/2200rpm |
Max. breakout force | 180 KN | Tyre | 23.5-25 |
Max.drawing force | 148 KN | Overall dimensions | 7960*3070*3400mm |
Max. Gradeability | 30° | Operating weight | 17100kg |

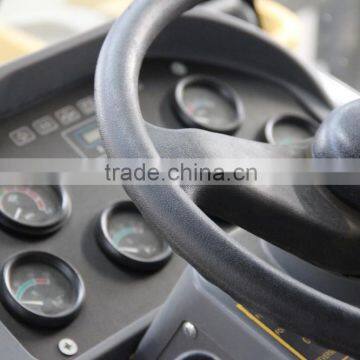

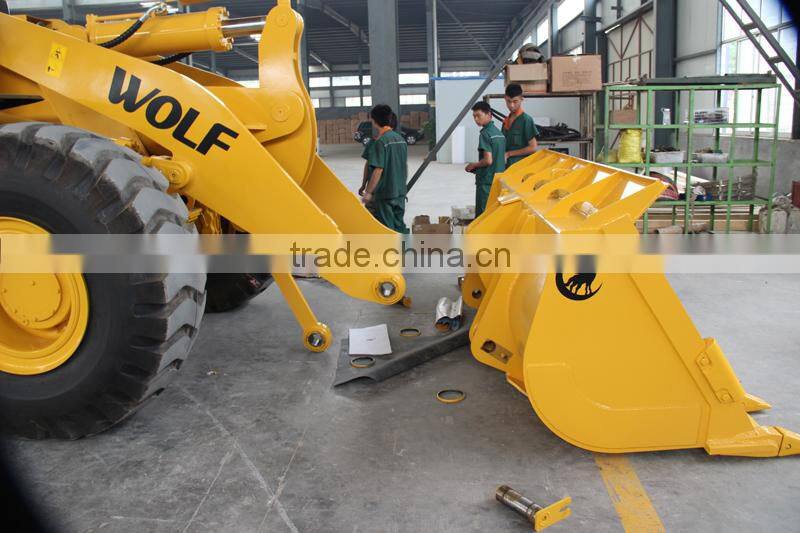

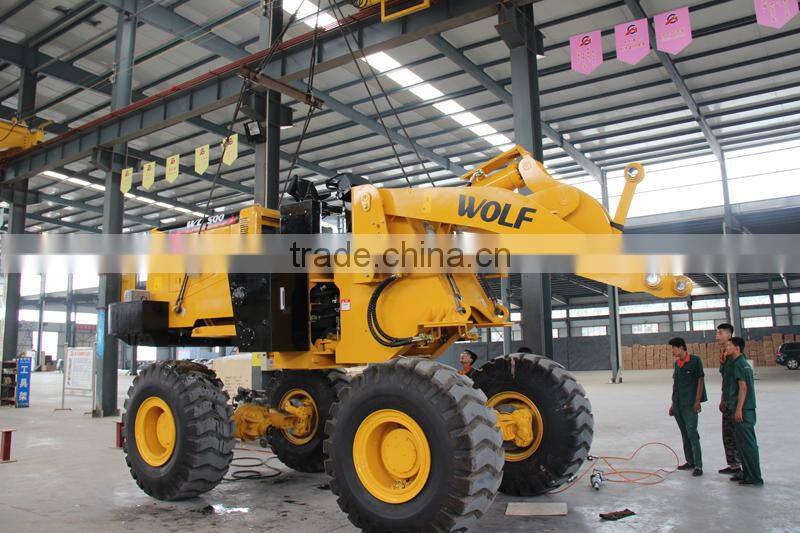

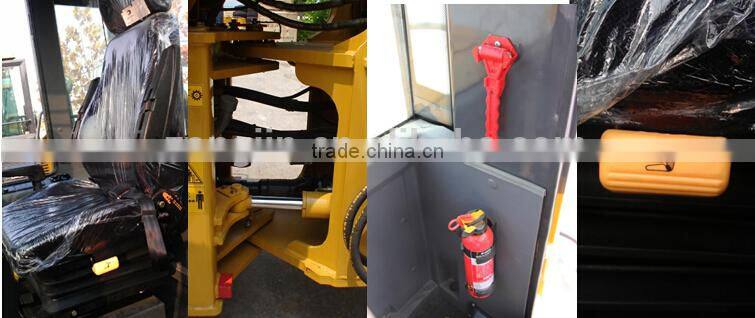

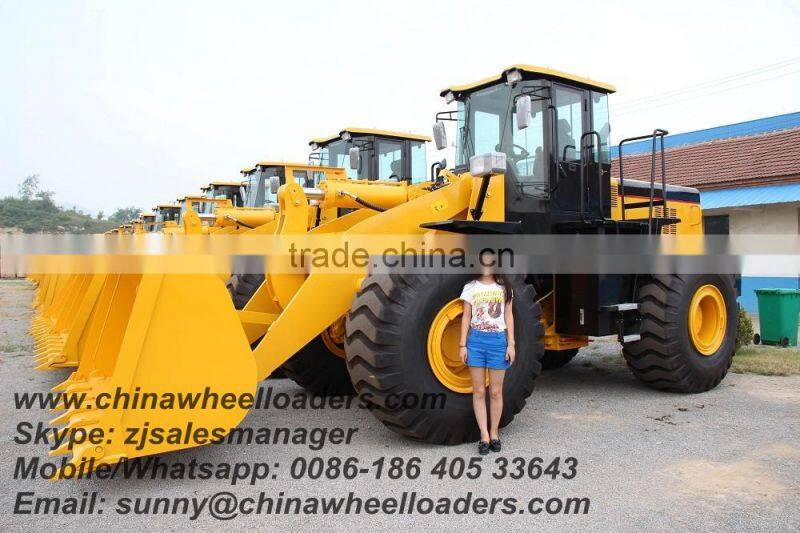

Detailed pictures for your reference

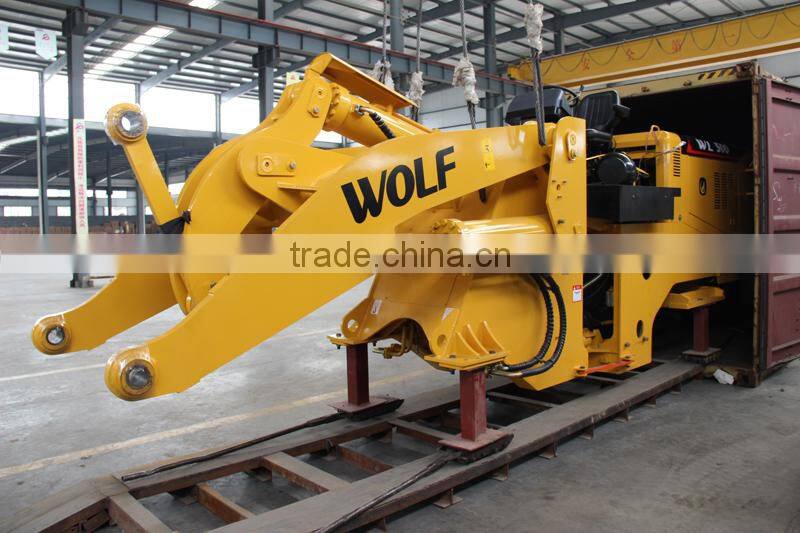

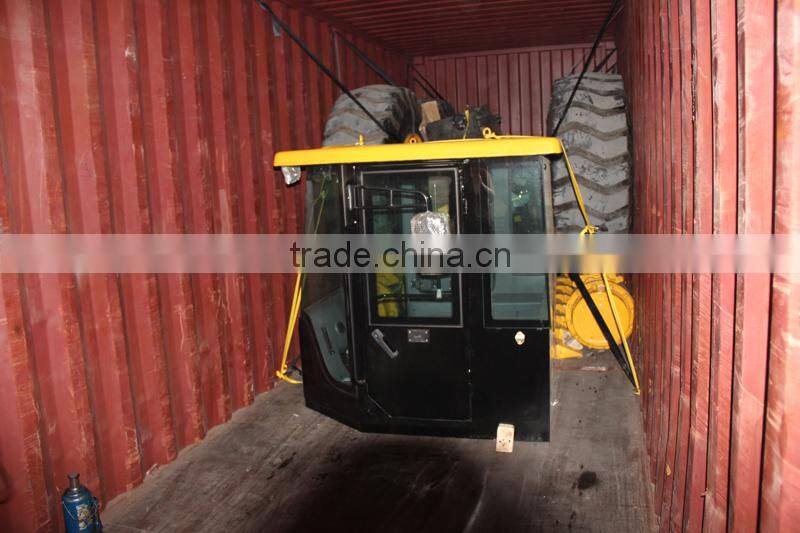

1 set in a 40HQ(needs to remove cabin, tire, axle, oil tank, air condition, etc.).
Triangle wood and 10mm wire fixed.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.

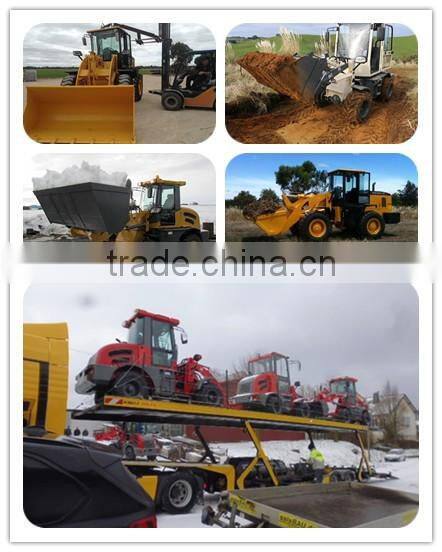

Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
| |
| | |
WOLF Loaders are in abroad!
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.
Contact me right now for more information! It is my honor to serve for you.
Online 24 hours a day!
Ms. Sunny
Mobible/ Whatsapp/ Viber: 0086-186 405 33643
Skype ID: zjsalesmanager
Facebook: https:///liuyangsunny
