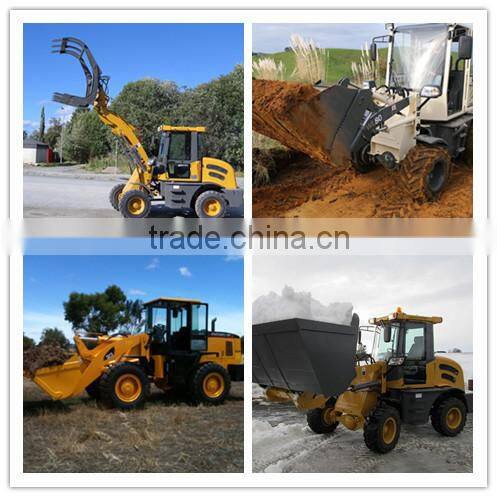

2.2m3 Bucket Capacity 3t Wheel Loader 936 With Pilot Control Manufacturer of China
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China Famous Brand WOLF 3t ZL30 Wheel Loader With Price List
-
3t Wheel Loader ZL30 With Weichai Engine 92kw WL300
-
Wheel Loader 3 Ton With 2.2CBM Standard Bucket 3 Ton Lift Capacity
-
Wheel Loader 3 Ton Zl30 SEM Quality
-
Weichai Deutz Engine 3 Ton Loader ZL30 Shandong Loader Manufacturer 30 Years Experience
-
3.0T Wheel Loader ZL30G LW300K 1.7-2.2m3 Bucket Capacity
Product Details
| Condition | New | Brand Name | WOLF | |
| Model Number | WL300 ZL30 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6890x2430x3070mm | Rated Load | 3000KG | |
| Certification | CE TUV PT EPA ROPS&FOPS | Warranty | 1 year | |
| After-sales Service Provided | Overseas service center available |
Product Description
2.2m3 bucket capacity 3t wheel loader 936 with pilot control manufacturer of China
Standard configuration:
Weichai Deutz engine 92kw, hydraulic joystick, Air condition,
Hangzhou advance gearbox, Yunyu Axle(famous brand in China)
adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan. 17.5-25 tires.
Optional Engine:
DongfengCummin 6BT3.9-C130, 97kw/130Hp
Optional Attachments:
DongfengCummin 6BT5.9-C130 engine, 97kw | Electronic control Hangchi BS428(YD13) |
Quick hitch | Snow blade |
Pallet fork | grass fork |
log clamp | Grammar seat |
Change to rock bucket | Change to coal bucket |
VDO instrument panel | Centralized lubricating system |
specification
Performance | Rated loading | 3000kg |
Overall weight | 9600kg | |
Bucket capacity | 1.7-2.5m3 | |
Maximum dump height | 3100mm | |
Maximum dump reach | 1006mm | |
Overall dimension (L×W×H) | 6890*2430*3070mm | |
Minimum turning radius | 5097mm | |
Engine | Model | DEUTZ TD226B CUMMIN 6BT5.9-C130 |
Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
NO. of cylinder-bore*stroke | 6-108*125 | |
Rated power | 92/97kw—2200r/min | |
Transmission system | Torque converter | HangChi 428 |
Gearbox mode | Power shaft normally engaged straight gear | |
Gears | 2forward 1 reverse | |
Maximum speed | 40km/h | |
Drive axles | Main reducing spiral | Bevel gear grade 1reduction |
Decelerating mode | Planetary reduction grade 1 | |
Wheel base (mm) | 2660mm | |
Wheel tread | 1800mm | |
Ground clearance | 400mm | |
Hydraulic system | System working pressure | 16,5MPa |
Boom lifting time | 4.83 | |
Total time | 9.15±0.5s | |
Brake system | Service brake | Air assist disc brake on 4 wheels |
Parking brake | Manual disk brake | |
Tyre | Type specification | 17.5-25 |
Front tyre pressure | 0.4Mpa | |
Rear tyre pressure | 0.35Mpa |
1 set in a 40HQ(needs to remove cabin). Another small loader ZL08/ZL10/ZL12/ZL16could also be packed together.
Triangle wood and 10mm wire fixed.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
| |
| | |
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.

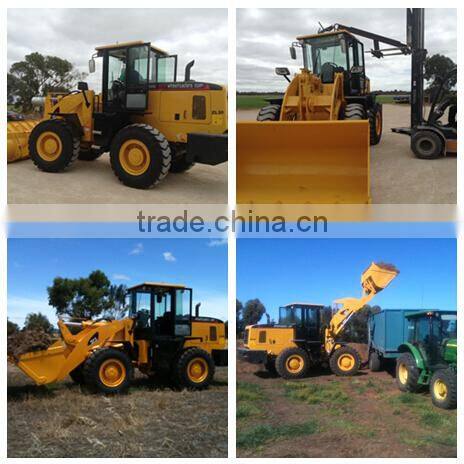

Loaders in abroad!
