4wd wheel loader ZL28 weichai/YTR turbo engine 83kw/110hp/115hp/120hp
Standard configuration:
Weichai 4108(YTR4108) engine, 83kw, Torque converter, Joystick, Air condition,
quick hitch, standard bucket, 16/70-24 tires.
Torque converter, Rear Video Camera, floating function, Varta battery,heater, 220V engine preheat. warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer.
Optional Engine
Cummin4BT3.9-C100, 75kw
Specification |
Overall Weight(Kg) |
6500KG |
L×W×H(Mm) |
6570x2150x2850 |
|
Rated Bucket Capacity(M3) |
1.2 |
|
Rated Load(Kg) |
2800 |
|
Maximum Dump Height (Mm) |
3500 |
|
Engine |
Model |
Weichai HUAFENG 4RMAZG YTR4108 |
Type |
In-Line Arrangement, Direct Injection,Water Cooling, Four-Stroke |
|
Rated Power(Kw) |
83kw |
|
Rated Speed(R/Min) |
2400 |
|
Transmission System |
Model Of Torque Converter |
YJ280 |
Type |
Single Grade Three Componets |
|
Gear Shift |
2 Gears Ahead,2 Gear Astern |
|
Steering System |
Type |
Articulated Hydraulic Steering |
Max. Turning Angle |
35±1° |
|
Brake System |
Brake Type |
Air Assisted Oil Disc On Four Wheel |
Tyres |
Standard Tyres |
16/70-24 or 16/70-24 agricultural tires |

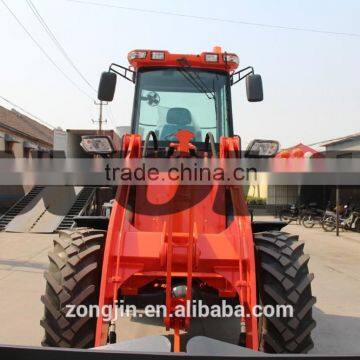

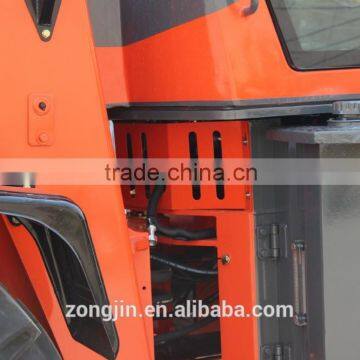

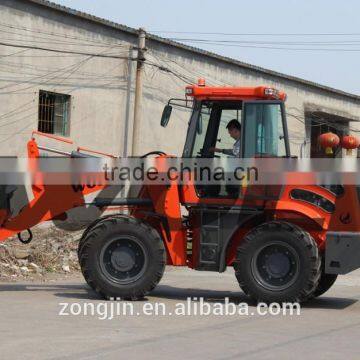

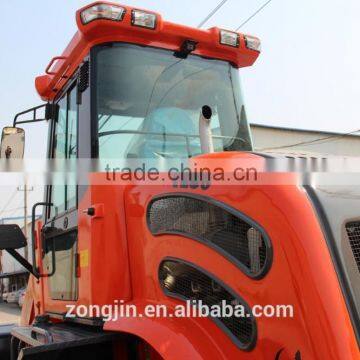

Pictures for reference, so you could have a better understanding...;)
4wd wheel loader ZL28 weichai/YTR turbo engine 83kw/110hp/115hp/120hp

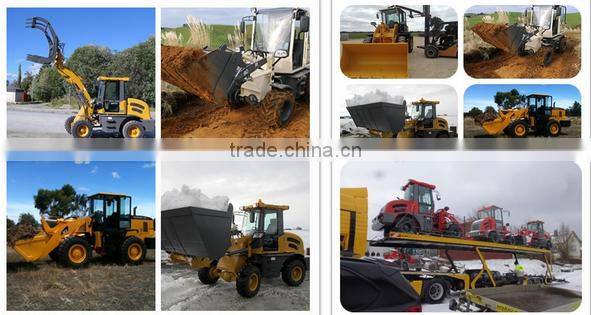

With different attachments, she can do different jobs for you~
1 set in a 40HQ(needs to remove cabin). Triangle wood and 10mm wire fixed.
4wd wheel loader ZL28/ZL28F/ZL 28F with joystick radio 16/70-24 agricultural tire.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.
Contact me right now for more information~ Online 24 hours a day!
