ZL28F china loader 16/70-24 tires joystick electric loader
Standard configuration:
Weichai 4108 engine, 83kw, Torque converter, Joystick, Air condition,
quick hitch, standard bucket, 16/70-24 tires.
Torque converter, Rear Video Camera, manual floating function, Varta battery,heater, 220V engine preheat. warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer.
Optional Engine
Cummin 4BT3.9-C100, 75kw
Specification |
Overall Weight(Kg) |
6500KG |
L×W×H(Mm) |
6570x2150x2850 |
|
Rated Bucket Capacity(M3) |
1.2 |
|
Rated Load(Kg) |
2800 |
|
Maximum Dump Height (Mm) |
3200/3500 |
|
Max. Breakout Force(KN) |
48.8KN |
|
Engine |
Model |
Weichai HUAFENG 4RMAZG |
Type |
In-Line Arrangement, Direct Injection,Water Cooling, Four-Stroke |
|
Rated Power(Kw) |
83kw |
|
Rated Speed(R/Min) |
2400 |
|
Transmission System |
Model Of Torque Converter |
YJ280 |
Type |
Single Grade Three Componets |
|
Gear Shift |
2 Gears Ahead,2 Gear Astern |
|
Hydraulic System |
Distribution Of Work Valve |
DF20.2C |
Working Pump |
CBF18 |
|
Steering System |
Type |
Articulated Hydraulic Steering |
Max. Turning Angle |
35±1° |
|
Brake System |
Brake Type |
Air Assisted Oil Disc On Four Wheel |
Tyres |
Standard Tyres |
16/70-24 or 16/70-24 agricultural tires |

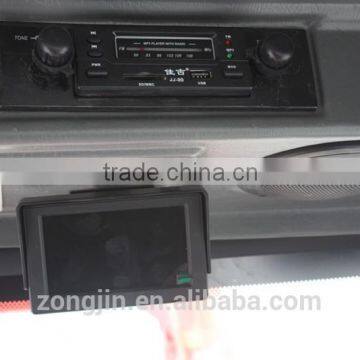

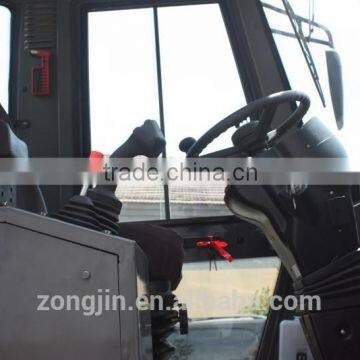

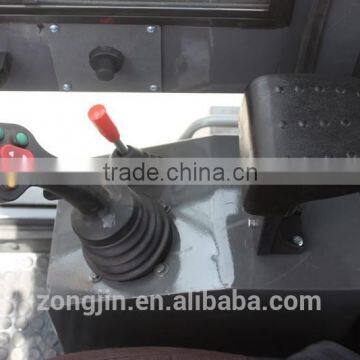

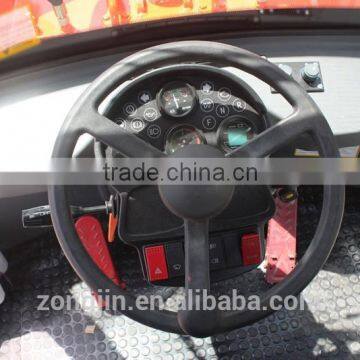

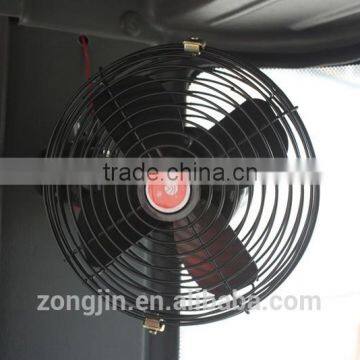

Pictures for reference, so you could have a better understanding...;)
Optional Configuration and Attachments for WOLF loader small ZL30 loader for sale price list :
Rear Video Camera |
Change cabin normal light to be LED light |
Hydraulic Line(per one more) |
Electronic control on joystick |
Quick hitch |
4 in 1 bucket |
Pallet fork |
Hydraulic adjustable pallet fork |
Snow bucket |
Snow blade |
V Blade |
Snow blower |
Sweeper(for 08 hydrostatic) |
Closed street sweeper |
Dustpan bucket |
Screening bucket |
Drum clamp |
Backhoe |
Bale grab |
Mixing bucket |
Grass fork |
Grass bucket |
Bale spear (2 or 3 teeth) |
Pitch fork |
New European grass fork |
Log clamp – A&H& 3 teeth |
With different attachments, she can do different jobs for you~
1 set in a 20GP(needs to remove cabin)
and 2 sets in a 40HQ(needs to remove cabin).
Triangle wood and 10mm wire fixed.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.
