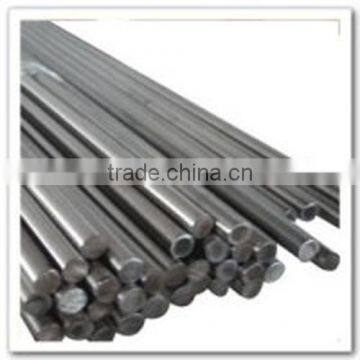

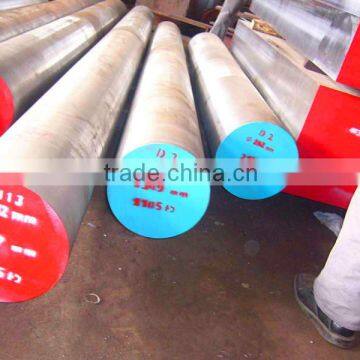

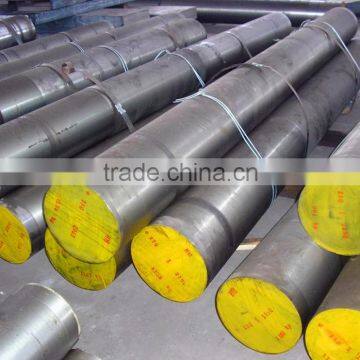

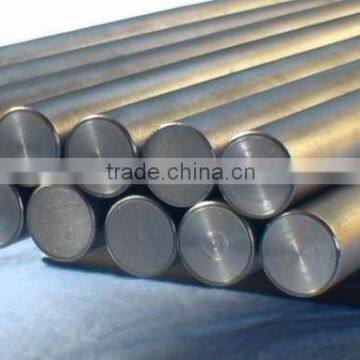

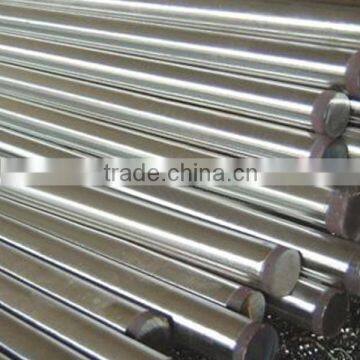

forged hot work alloy tool steel Din1.2344,H13,SKD61,4Cr5MoSiV1 steel round bar
1.H13 corresponding to AISI steel H13, is a widely used international air cooling hardening hot work die steel,
2 having a higher thermal strength and hardness, and has good toughness in the temperature conditions, the thermal fatigue properties and wear resistance,
3.Lower austenitizing temperature air quenching, heat deformation small, when the air quenching the small oxide tendencies, can resist the erosion of the role of the molten aluminum.
4.The steel is widely used in the manufacture of hot extrusion die, mandrel, forging hammer die, die forging presses, forging machine die-casting mold mold as well as aluminum, copper and its alloys.
5. Chemical composition:
Standard |
Steel name |
C |
Si |
Mn |
Cr |
Mo |
V |
P |
S |
Ni |
GB |
4Cr5MoSiV1 |
0.32-0.45 |
0.80-1.20 |
0.20-0.50 |
4.75-5.50 |
1.10-1.75 |
0.80-1.20 |
≤0.030 |
≤0.030 |
------ |
AISI |
H13 |
0.32-0.45 |
0.80-1.20 |
0.20-0.50 |
4.75-5.50 |
1.10-1.75 |
0.80-1.20 |
≤0.030 |
≤0.030 |
------ |
JIS |
SKD61 |
0.32-0.42 |
0.80-1.20 |
≤0.50 |
4.50-5.50 |
1.00-1.50 |
0.80-1.20 |
≤0.030 |
≤0.030 |
------ |
ASSAB |
8407 |
0.39 |
1.00 |
0.40 |
5.20 |
1.40 |
0.90 |
≤0.030 |
≤0.030 |
------ |
DAIDO STEEL |
DHA1 |
0.32-0.42 |
0.80-1.20 |
≤0.50 |
4.50-5.50 |
1.00-1.50 |
0.80-1.20 |
≤0.030 |
≤0.030 |
------ |
Hitachi |
DAC |
0.39 |
1.00 |
0.40 |
5.15 |
1.40 |
0.80 |
≤0.030 |
≤0.010 |
------ |
Groditzer Stahlwerke GmbH |
GSW-2244 |
0.37-0.43 |
0.90-1.20 |
0.30-0.50 |
4.80-5.50 |
1.20-1.50 |
0.90-1.10 |
≤0.030 |
≤0.030 |
------ |
Bohter |
W302 |
0.37-0.43 |
0.90-1.20 |
0.30-0.50 |
4.80-5.50 |
1.20-1.50 |
0.90-1.10 |
≤0.030 |
≤0.030 |
------ |
DIN |
X40CrMoV5-1 W-Nr. 1.2344 |
0.37-0.42 |
0.90-1.20 |
0.30-0.50 |
4.80-5.50 |
1.20-1.50 |
0.90-1.10 |
≤0.030 |
≤0.030 |
------ |
BS |
BH13 |
0.32-0.42 |
0.85-1.15 |
≤0.40 |
4.75-5.25 |
1.25-1.75 |
0.90-1.10 |
-------- |
-------- |
≤0.40 |
6. H13 / 1.2344Critical temperature
Critical point |
Ac1 |
Ac3 |
Ar1 |
Ar3 |
Ms |
MF |
Temperature(Approximation)/°c |
860 |
915 |
775 |
815 |
340 |
215 |
7. Forging process
Item |
Heating temperature/°C |
start forging temperature/°C |
final forging temperature/°C |
cooling |
Steel ingot |
1140-1180 |
1100-1150 |
850-900 |
Slow cooling (pitorfurnace cooling) |
Steel billet |
1120-1150 |
1050-1100 |
850-900 |
Slow cooling (pitorfurnace cooling) |
6. Features&Applications: good macro and microstructure, High wear resistance, good toughness and red hardness,good machinability. Mainly Used for Hot forming tools, Hot forging dies, Pressure casting tools,Hot extrusion dies for aluminium.
7.Surface condition Round bar : Black/ Turned / Peeled / Grinding
Steel plate : Black / Milling / Machined
8. Annealed hardness: ≤229HB
9. Inspection : 100% UT acco to DIN SEP1921 D/d or E/e
