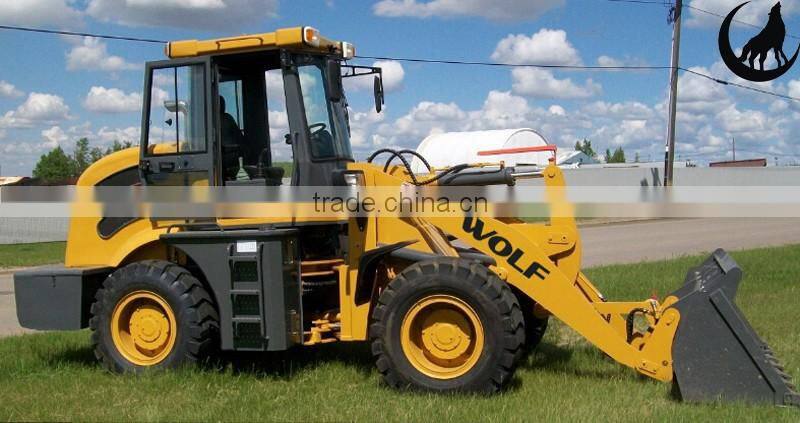

WOLF loader zl 20 wheel loader 2.0 tons capacity with standard bucket
Manufacturer: Qingdao Zongjin Engineering Machinery Co.,Ltd.
Standard configuration:

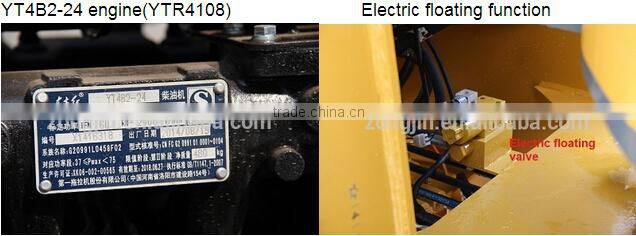

YTR4108(YT4B2-24) engine, 60kw, joystick, manual floating function, 16/70-20 tires, air over disc brake on 4 wheels, bucket can be level automatic, back sound, radio, USB, hand brake, extinguisher, window hammer, engine preheat, warning light, heater and fan inside cabin.
Optional Engine
DongfengCummin 4BT3.9-C100, 75kw/100hp
|
Basic Parameters |
Rated Load |
2000kg |
Dump height |
3100mm |
|
Log fork patulous height |
1300mm |
|
Tire size |
16/70-20 |
|
Operating weight |
5800kg |
|
Transmission |
automatic |
|
Wheel base |
2150 |
|
Tread |
1440 |
|
Overall dimensions(L×W×H) |
6130×1920×2820mm |
|
|
Engine |
Model |
YTR 4108 engine(YT4B2-24) Cummin 4BT3.9-C100 |
Pattern |
Inline, water cooled, dir, inject, four strokes |
|
Number of cylinders-internal diameter* strokes |
4-100×115 |
|
Rated power |
60kw/75KW |
|
Min. fuel consuming rate |
221g/kw.h(243g/kw.h) |
|
Specified rotational speed |
2400r/min |
|
Model of torque device |
YJ280 |
|
Number of gear shift |
2 forward,2 reverse |
|
Max. travel speed |
30km/h |
|
Tyre size |
16/70-20 |
|
Working hydraulic system |
Valve distributing working |
ZL20E-04T.QW |
Working pumps |
CBG2063 |
|
Brake system |
air assisted oil type four wheel brake |
|
Fuel capacity |
80L |

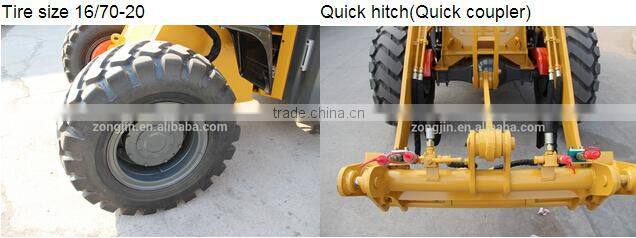

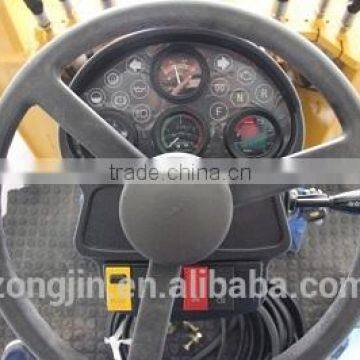

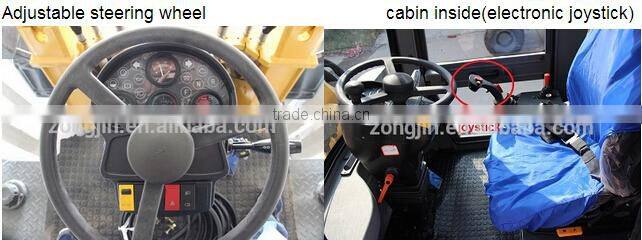

Some pictures for your reference, you could contact with me freely for more details.
Optional Configurations and attachments:
Cummins engine |
Add extra cooling |
Quick Hitch |
Air condition |
Pallet Fork |
V Blade |
Snow Bucket |
Four In One Bucket |
Screening Bucket |
Drum Clamp |
Grass Fork |
Log Clamp |
Snow Blade |
Snow blower |
Rear Video Camera |
Hydraulic Line(Per One More) |

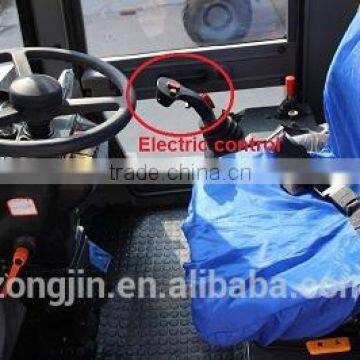

Electronic Control On Joystick |
Electronic Floating |
Grammar Seat |
|
Match with different attachments, she can do different jobs for you!

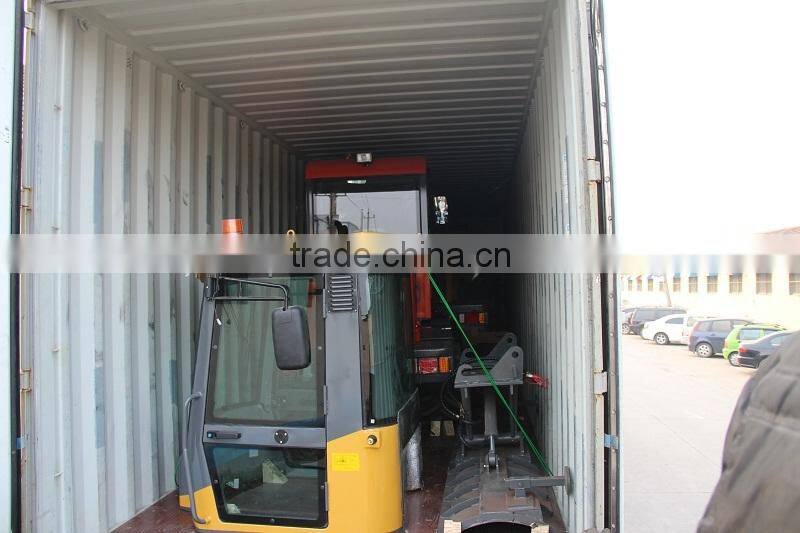

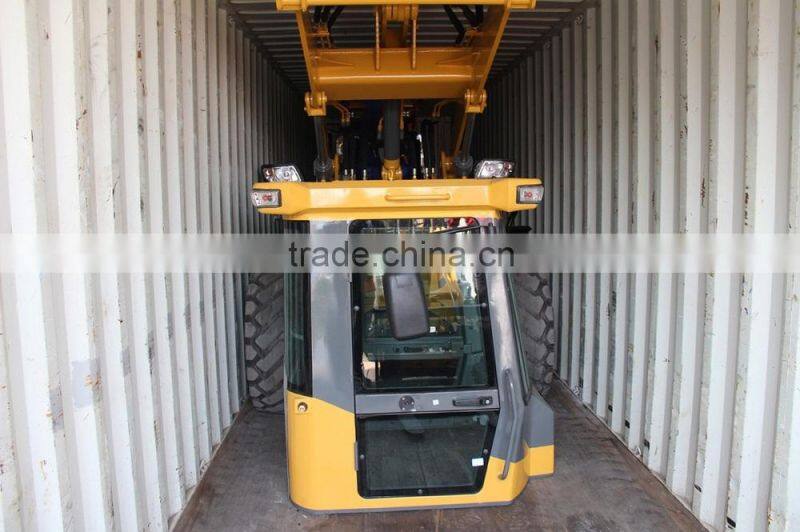

1 set in a 20GP and 2 sets in a 40HQ. Triangle wood and 10mm wire fixed.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.

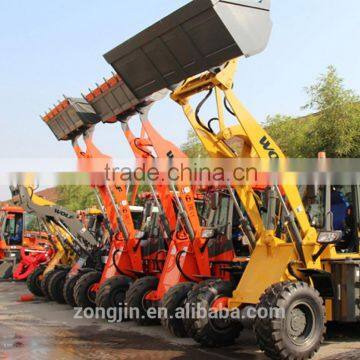

Our loaders in foreign!
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.
Contact me right now for more information! Online 24 hours a day!
Ms. Sunny
Mobible/ Whatsapp/ Viber: 0086-186 405 33643
Skype ID: zjsalesmanager
Facebook: https:///liuyangsunny
