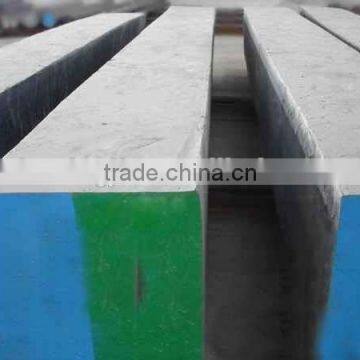

D3 Carbon Steel Steel Material Plate Steel Price

FOB Price

US$ 1000.00 - 1200.00 / Ton

5 Tons(Min. Order)

Port shanghai shenzhen ningbo wuhan or as your inquirement
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Steel Grade	tool steel	Standard	AISI, ASTM, BS, DIN, GB, JIS
Dimensions	10-900MM	Place of Origin	Hubei, China
Brand Name	Xinmingjie	Model Number	ASTM D3
Technique	Forged	Application	Die Steel Bar
Alloy Or Not	Is Alloy	Special Use	Mold Steel
Type	Other, Alloy Steel Bar, Alloy Steel Bar

Product Description

D3 carbon steel steel material plate steel price

1. k100 steel is a widely used cold work die steel, a type of high carbon high chromium ledeburite . The steel has good hardenability and good abrasion resistance

2.Mainly used to with stand the impact load is smaller, and require high abrasion resistance Die and punch, cold-cut scissors, drill sets, gauges, drawing die, pressure die thread rolling board, drawing die thread rolling die.

3.Chemical composition(for reference only):

Standard	Steel name	C	Si	Mn	Cr	Mo	V	W	P	S
GB	Cr12	2.00-2.30	≤0.40	≤0.40	11.50-13.00	---	---	---	≤0.030	≤0.030
AISI	D3	2.00-2.35	0.25-0.45	0.24-0.45	11.0-13.0	(0.80)	(0.80)	(0.75)	---	----
AISI	D6	2.00-2.20	≤0.70	0.20-0.40	11.50-12.50	---	---	0.60-0.90	---	---
Bohter	K100	1.90-2.20	0.10-0.40	0.15-0.45	11.00-12.00	---	----	---	---	---
ASSAB	XW-5	2.05	0.30	0.80	12.50	---	---	---	---	----
CRD	CRD	2.10	0.25	0.45	13.50	---	---	---	≤0.025	≤0.025
JIS	SKD1	1.80-2.40	≤0.40	≤0.60	12.00-15.00	---	(≤0.30)	---	≤0.030	0.030
DIN	1.2080	1.90-2.20	0.10-0.40	0.15-0.45	11.0-12.0	---	---	---	---	---
KS	STD1	1.80-2.40	≤0.40	≤0.60	12.0-15.0	---	(≤0.30)	---	≤0.030	≤0.030
NF	X200Cr12	1.90-2.20	0.10-0.40	0.40-0.70	11.0-13.0	0.50-0.80	---	---	---	---
BS	BD3	1.90-2.30	≤0.60	≤0.60	12.0-13.0	---	≤0.50	---	---	---

4.Delivery of hardness and quenching hardness

Steel name	Delivery status		Quenched specimens
Steel name	Hardness HBW	Impressiondiameter (mm)	Quenching temperature/°C	Cooling medium	hardness ≥HRC
k100	269~217	3.7~4.1	950~1000	oil	60

5.Physical properties

k100 critical temperature

Critical point	A_c1	A_cm	A_r1	A_rcm	M_s
temperature(approximation)/°C	810	835	755	770	180

6. Features&Applications: High wear resistance,Medium toughness and good hardenability. Mainly Used for High stressed cutting and punching tools and Deep drawing tools ,shear blades, etc

7.Surface condition

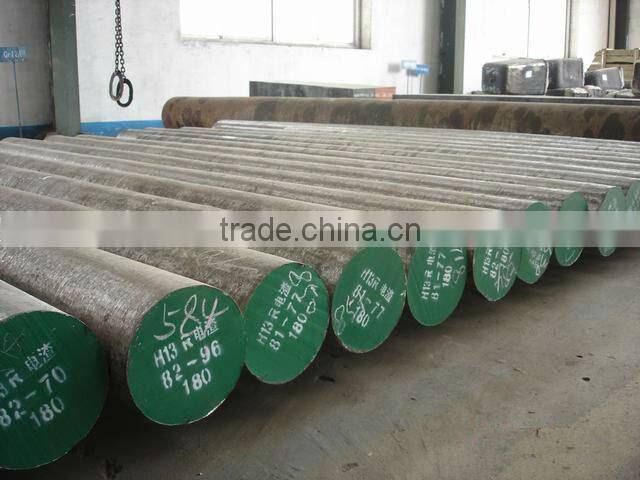

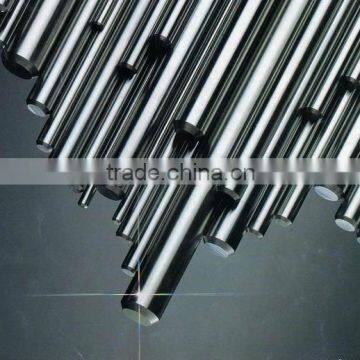

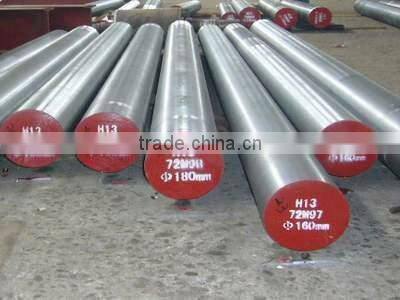

Round bar : Black/ Turned / Peeled / Grinding

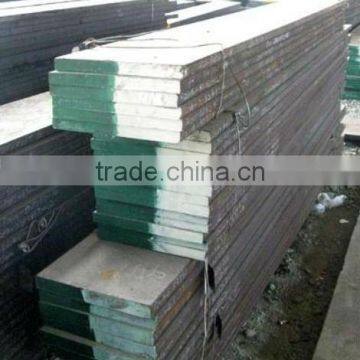

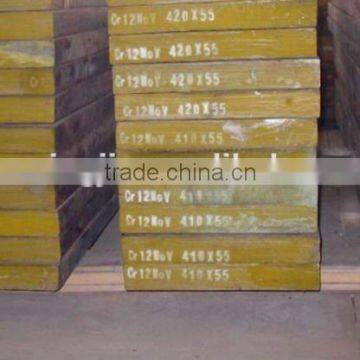

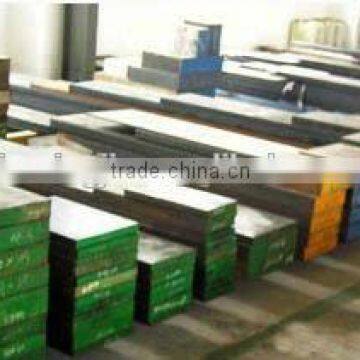

Steel plate : Black / Milling / Machined

8. Annealed hardness: ≤250HB

9. Inspection /UT test : 100% UT acco to DIN SEP1921 D/d or E/e

10. Tolerance: 0/+1mm for machined/turned surface, 0/+3mm for grinded/peeled surface

12. Delivery term: 30 days

13.Payments: T/T,L/C,DP

(30% advance payment by T/T,balance before the shipment against shipping documents or irrevocable L/C at sigh)
