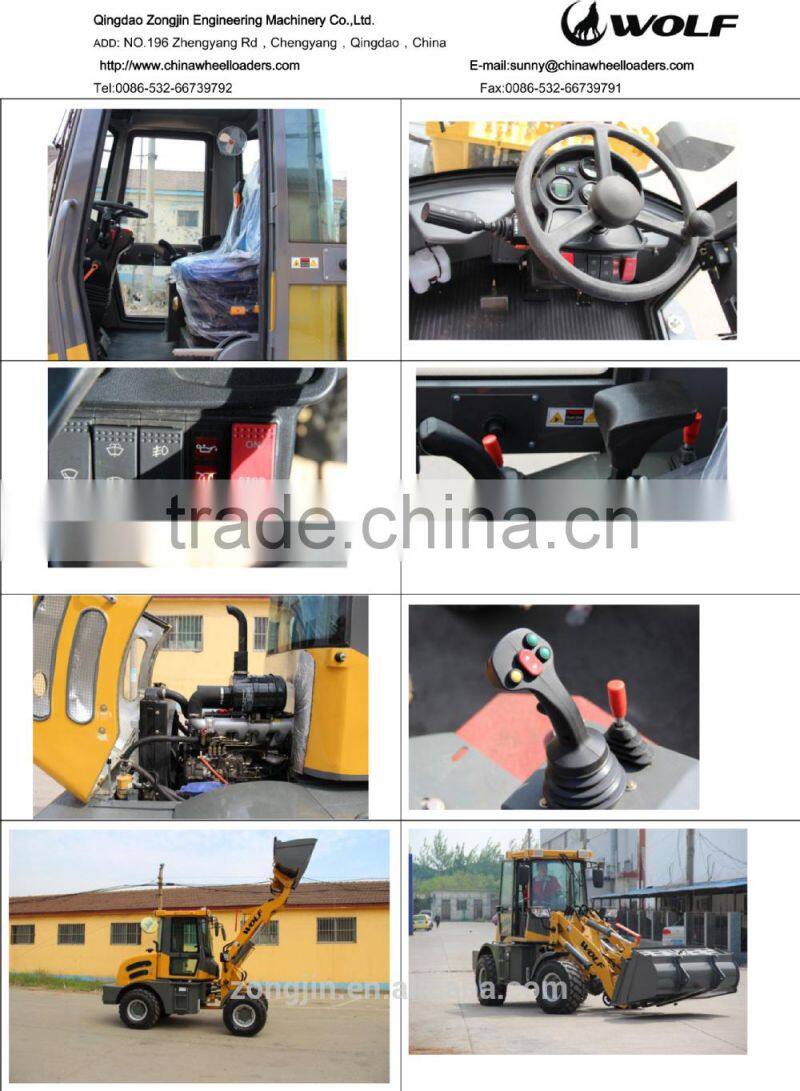

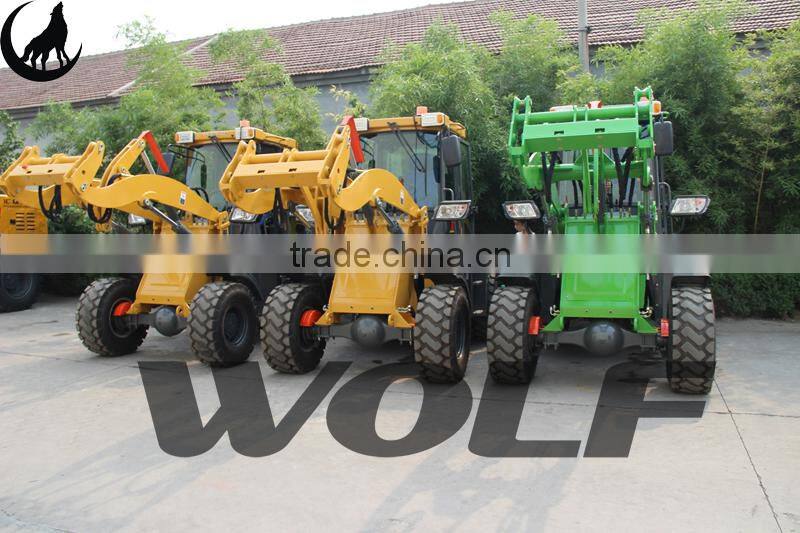

Wolf 1.6t agricultural tires loader Xinchai 498 Euro 3 engine loader compact loader
1. Engine: Xinchai A498BT1 Euro III engine
2. Rated load: 1600kg
3. Overall weight: 4000kg
4. Rated bucket capacity: 0.8cbm
5. Overall dimension: 5280x1680x2560mm
6. Standard tire: 20.5/70-16
Standard Configuration:
Xinchai 498 Euro III engine, 36.8kw(50hp), joystick, quick hitch, 20.5/70-16 tires, rear video camera, manual floating function, 2 LED lights, Varta battery,heater and fan in the cabin, air over disc brake on 4 wheels, bucket can be level automatic, back sound, radio, USB, hand brake, extinguisher, window hammer, engine preheat, warning light
Optional Engine:
Changchai 490 engine,38kw
Xichai 490 engine, 37kw
Xinchai490 Euro III engine, 36.8kw
Optional tire:
23.5/70-16 tires
23.5-16 Agricultural Tire
Performance |
Rated loading |
1600kg |
Overall weight |
4000kg |
|
Rated bucket capacity |
0.9m3 |
|
Maximum dump height |
2330mm |
|
Overall dimension (LXWXH) |
5280X1680X2560mm |
|

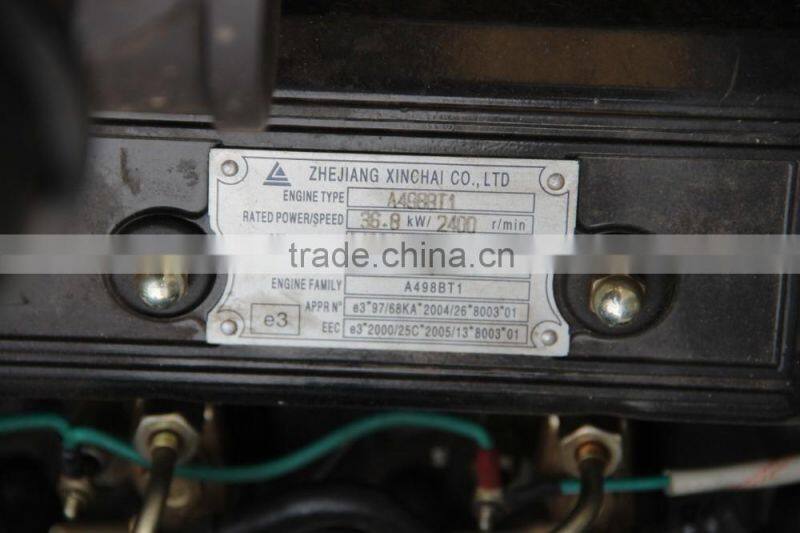

Engine |
Model |
Xinchai A498BT1(Euro III) |
Type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
No. of cylinder-bore/stroke |
4—100×125mm |
|
Rated power |
36.8kw—2200r/min |
|
Transmission system |
Torque converter |
YJ1—26501 |
Gearbox mode |
Countershaft power-shift |
|
Gear shift |
2 forward shift 2 reverse shift |
|
Maximum speed |
24km/h |
|
Drive axles |
Main reducing spiral |
Circular Arc Bevel gear, single stage |
Decelerating mode |
Single stage planetary type |
|
Brake system |
Service brake |
Air assist disc brake on 4 wheels |
Parking brake |
Flexible shaft operated external drum |
|
Tyre |
Type specification |
20.5/70-16 |
Optional tyres |
23.5-16 agricultural tires |
Optional Attachments:
Rear Video Camera |
Change cabin normal light to be LED light |

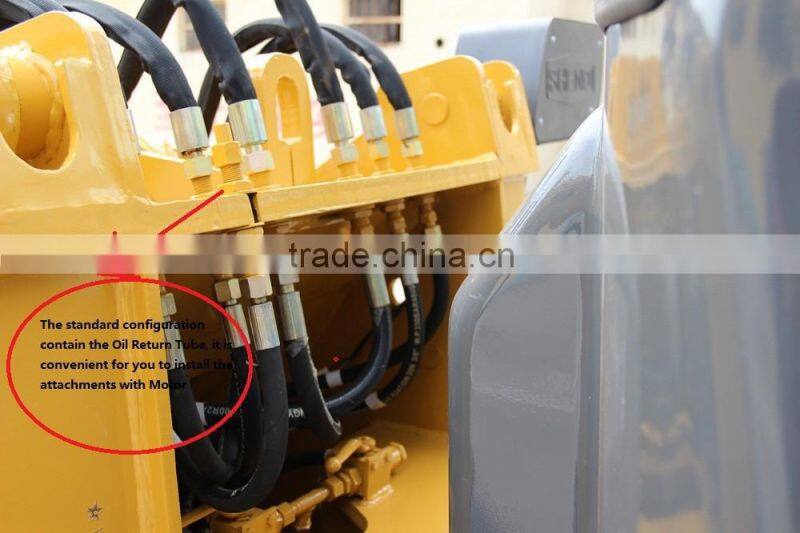

Hydraulic Line(per one more) |
Electronic control on joystick |

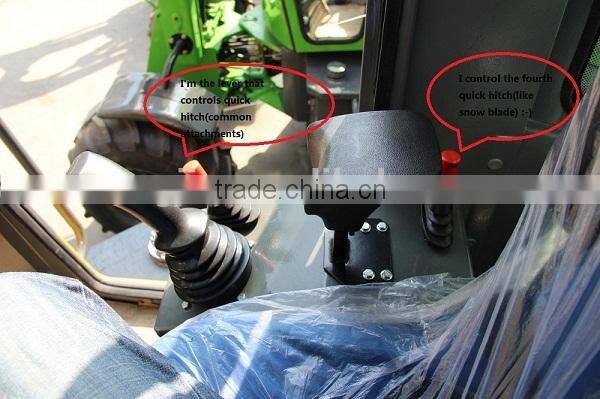

Quick hitch |
4 in 1 bucket |
Pallet fork |
Hydraulic adjustable pallet fork |
Snow bucket |
Snow blade |
V Blade |
Snow blower |
Sweeper(for 08 hydrostatic) |
Closed street sweeper |
Dustpan bucket |
Screening bucket |
Drum clamp |
Backhoe |
Bale grab |
Mixing bucket |
Grass fork |
Grass bucket |
Bale spear (2 or 3 teeth) |
Pitch fork |
New European grass fork |
Log clamp – A&H& 3 teeth |
With different kinds of attachments, she can do different jobs for you.

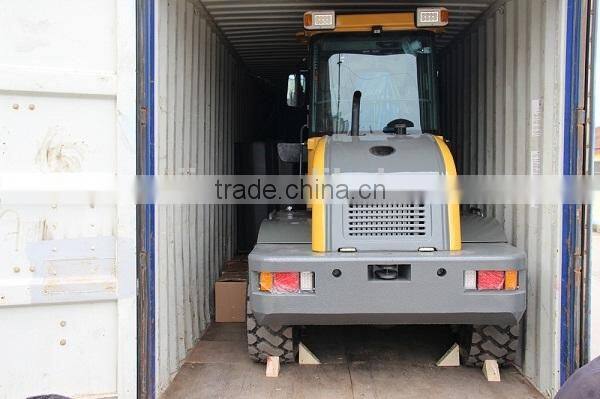

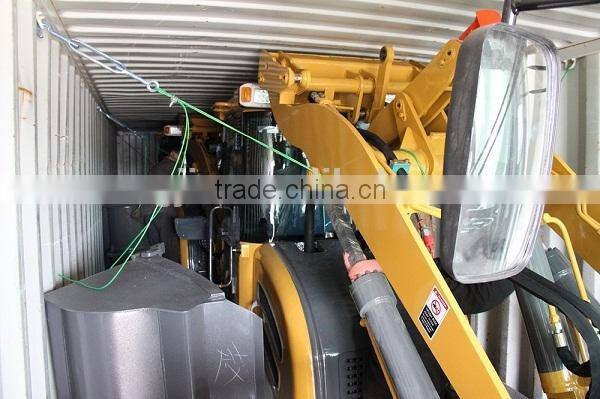

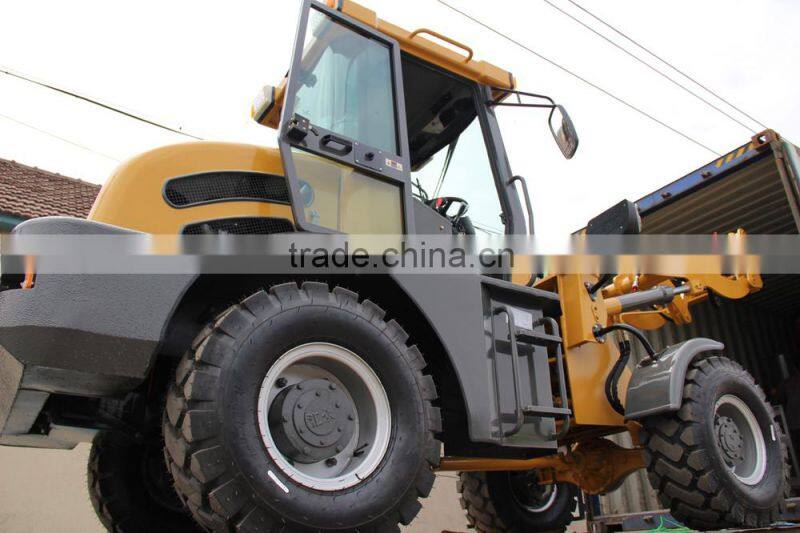

1 set in a 20GP and 3sets in a 40HQ. Triangle wood and 10mm wire fixed.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.
Choose WOLF, and then better after-service will be guaranteed.
