Help CenterFactory Outlet DR-30 12v Single Output Power Supply CE R0HS Approved DIN Rail 30w 12v AC Input Full Range Power Supply
Related Products
-
Wall Style Switching CE RoHS 12v 1a Power Adapter America Plug ac dc Power AdapterUS$ 2 - 3MOQ: 1 Piece -
Heat Shrinkable Insulation Tubes /Heat Shrink Tubing KitsUS$ 0.1 - 1MOQ: 1 Piece
-
LEYU S-120-12 12V 10A Best Quality Useful Power Supply Switching /dc SuppliesUS$ 8.5 - 9.24MOQ: 1 Piece
-
Favorable Price Suitable High/low Voltage Different Diameter Heat Shrink TubeUS$ 0.01 - 1MOQ: 1000 Meters
-
60w 12v 9ch CCTV Power SupplyUS$ 19.5 - 29.88MOQ: 1 Piece

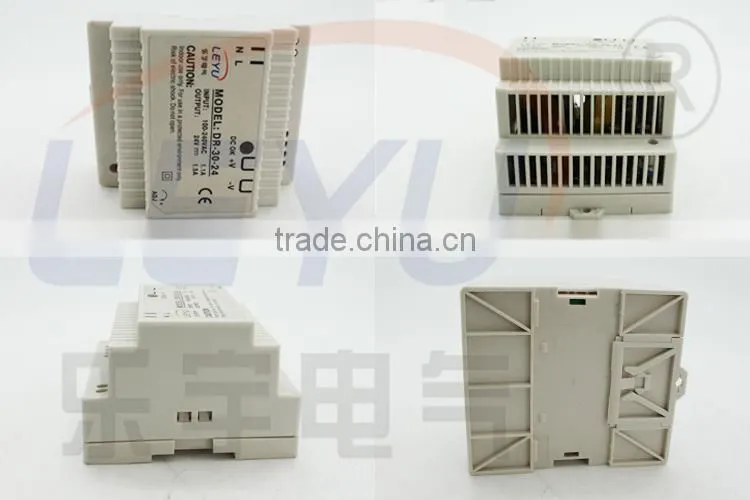

Factory outlet DR-30 12v single output power supply CE R0HS approved DIN rail 30w 12v AC input full range power supply
1.What is the warranty of your switching power supply?
The warranty of our switching power supply are 2 years
2. Do you accept OEM for the switching power supply ?
Yes. we do .
3.What certification you have for the switching power supply ?
We have CE , ROHS , CCC , ISO9001 , IP67
4.Application of the power supply
a.Office lighting, artwork lighting, display case
b.Home lighting hotel, restaurant light and so on.
c.Commercial lighting such as: led ceiling light, down light, digital tube point sources,panel light, spotlight,wall washer,strip light.
d.other public lighting
5.How to Contact Us ?
Send your inquiry Details in the below, Click "Send" Now !
Not exactly what you want? Post a quick Buying Request!

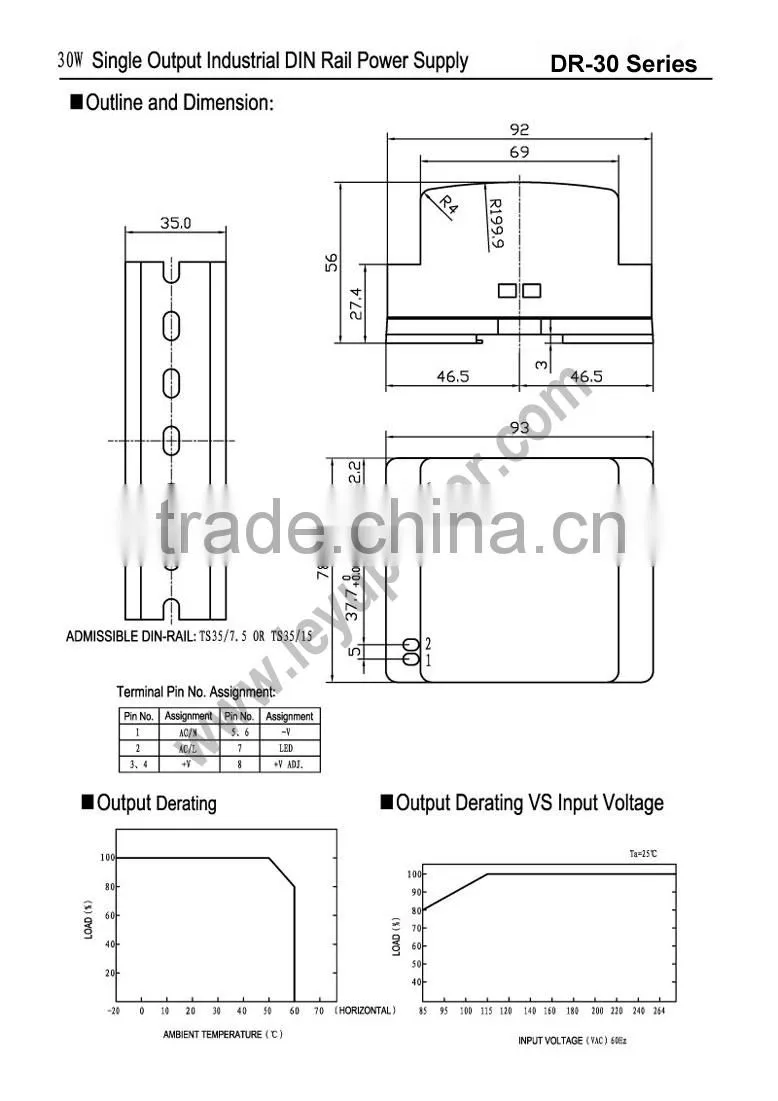

30W Single Output Industrial DIN Rail Power Supply DR-30 series
SPECIFICATIONS | ||||
OUTPUT |
|
|||
Model |
DR-30-5 |
DR-30-12 |
DR-30-15 |
DR-30-24 |
DC Voltage |
5V |
12V |
15V |
24V |
Rated Current |
3A |
2A |
2A |
1.5A |
Current Range |
0-3A |
0-2A |
0-2A |
0-1.5A |
Rated Power |
15W |
24W |
30W |
36W |
Ripple & Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
Voltage Adj. Range |
-5%,+10% |
±10% |
±10% |
±10% |
Voltage Tolerance |
±2% |
±1% |
±1% |
±1% |
Setup, Rise, Hold Up Time |
100ms,30ms/230VAC 100ms,30ms/115VAC at full load |
|||
|
|
|||
INPUT |
|
|||
Voltage Range |
85~264VAC 47~63Hz; 120~370VDC |
|||
AC Current |
0.88A/115V 0.48A/230V |
|||
Efficiency |
74% |
81% |
82% |
83% |
Inrush Current |
Cold start 15A/115V 30A/230V |
|||
|
|
|||
OTHERS |
|
|||

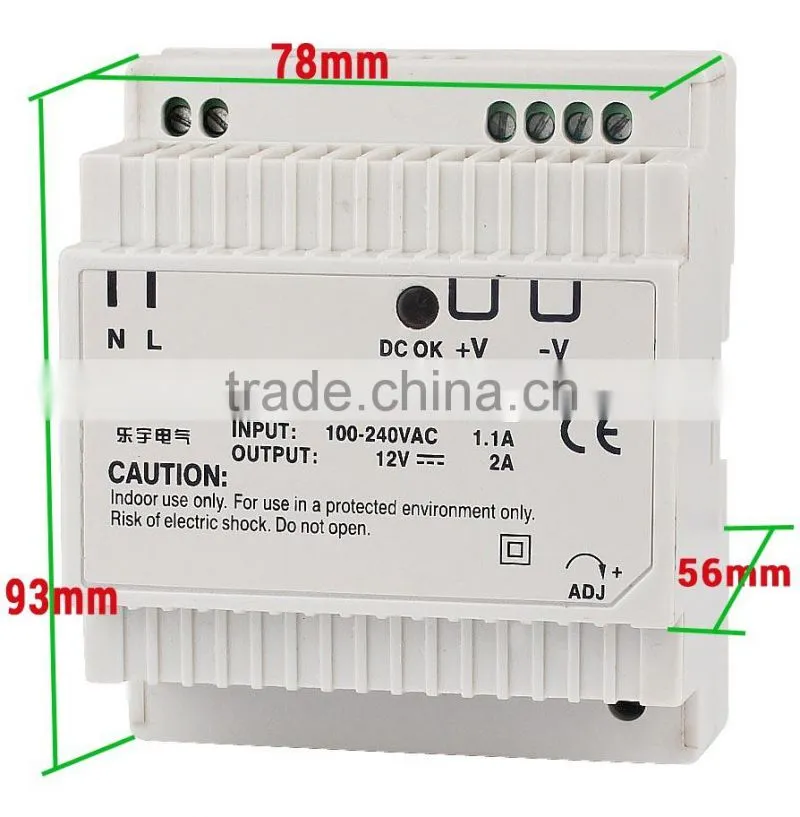

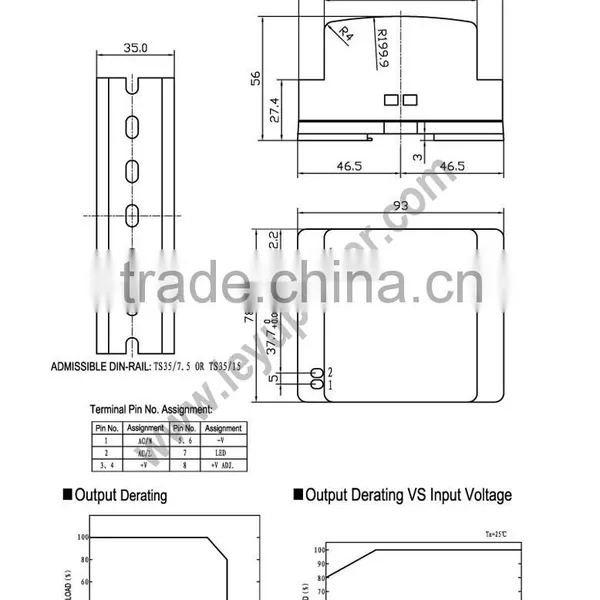

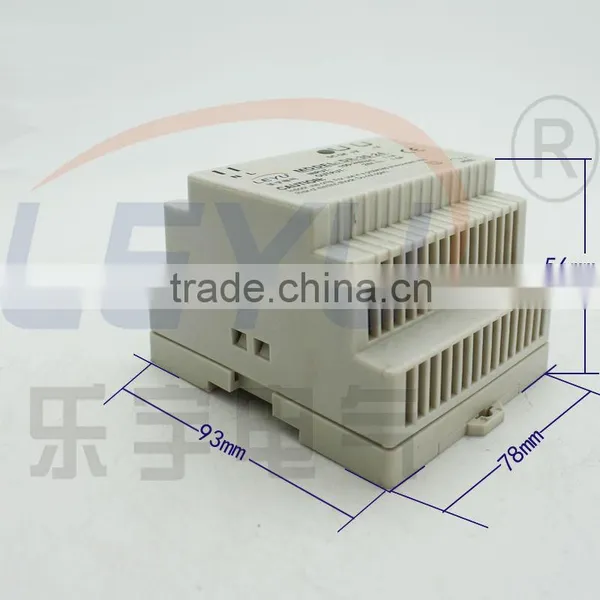

Dimension |
78*93*56mm(L*W*H) |
|||
Weight |
0.22Kg |
|||
Packing |
50pcs/11Kg/1.02CUFT |
|||
