IP67 2 Years Warranty Waterproof 30w Led Driver

Name: IP67 2 Years Warranty Waterproof 30w Led Driver
Brand: Leyu
SKU: 113144875

US$ 4.5 - 6.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Leyu

Model Number:

LDV-30-24 waterproof 30w led driver

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Leyu

Model Number LDV-30-24 waterproof 30w led driver

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 180-264 VAC

Output Voltage 24V

Output Frequency 25-100khz

Output Current 1.25A

Specifications

waterproof 30w led driver:
Can withstand 300VAC surge input for 5sec
Short circuit,over load/voltage/temperature protections

IP67 2 years warranty led 24v power supply

Advantages

1. Reply your inquiry in 24 working hours

2. Customized design is avalible, OEM and ODM are welcomed

3. Delivery the goods to our customers all over the world with speed and prscision

4. Offer customers the lowest price with high quality power supply

Full specification

Click to see more ...

1. 5V

2. 12V

3. 24V

4. 48V

SPECIFICATION
OUTPUT
Model	LDV-30-12	LDV-30-24
DC Voltage	12V	24V
Rated Current	2.5A	1.25A
Current Range	0-2.5A	0-1.25A
Rated Power	30W	30W
Ripple & Noise	100mVp-p	100mVp-p
Voltage Adj. Range	±10%	±10%
Voltage Tolerance	±1%	±1%
Inlet Stability	±0.5%	±0.5%
Load Stability	±0.5%	±0.5%
Setup, Rise, Hold Up Time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

INPUT
Voltage Range	85~132VAC 47-63Hz
AC Current	0.7A/115V
Efficiency	76%/115VAC	80%/115VAC
Inrush Current	Cold-start current 15A/115V 30A/230V
Leakage Current	<0.75mA/240VAC

PROTECTION
Over Load	105%~150%
	Protection type: plusing hiccup shutdown Reset:auto recovery

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	ApprovedIP67
EMC Standard	CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification

OTHERS

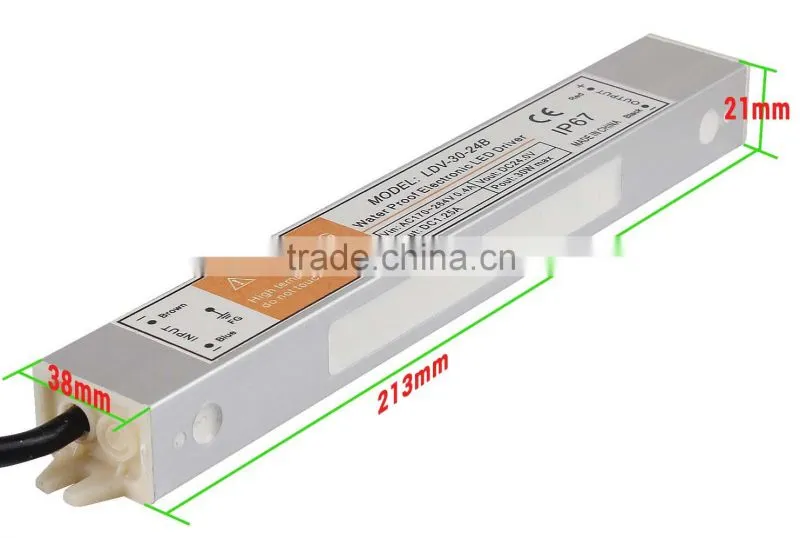

Dimension	*2202920mm(LWH)*
Weight	0.37Kg
