IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver

IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver thumbnail-1
IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver thumbnail-2
IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver thumbnail-3
IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver thumbnail-4
IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver photo-1
IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver photo-2
IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver photo-3
IP67 Leyu LDV-120-36 120W 36V Waterproof Switch Mode Power Supply Led Driver photo-4
US$ 13.33 - 15.12 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Leyu
Model Number:
LDV-120-36
Contact Supplier Request Quote Chat Now
Yueqing Leyu Electric Automation Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Leyu
Model Number LDV-120-36
Output Power 101 - 200W
Output Type Single
Input Voltage Other, 180~264 VAC;255~373VDC
Output Voltage 36V LDV-120-36
Output Frequency 47~63Hz LDV-120-36
Output Current 3.3A LDV-120-36

IP67 Leyu LDV-120-36 120W 36V waterproof switch mode power supply  led driver





120W Single Output Waterproof Switching Power Supply     LDV-120 series

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65KHz
Suitable for LED lighten and moving sign applications.
2 years warranty



SPECIFICATION

OUTPUT



Model

LDV-120-12

LDV-120-24

LDV-120-36

DC Voltage

12V

24V

36V

Rated Current

10A

5A

3.3A

Current Range

0-10A

0-5A

0-3.3A

Rated Power

120W

120W

119W

Ripple & Noise

100mVp-p

150mVp-p

150mVp-p

Voltage Tolerance

±1%

±1%

±1%

Inlet Stability

±0.5%

±0.5%

±0.5%

Load Stability

±0.5%

±0.5%

±0.5%

Setup, Rise, Hold Up Time

80ms,36ms,20ms/230VAC





INPUT



Voltage Range

180~264 VAC 47~63Hz;255~373VDC

AC Current

1.5A/230VAC

Efficiency

82%

84%

85%

Inrush Current

Cold-start current 40A/230VAC





PROTECTION



Over Load

105%~135%

Protection:Hiccup mode, recovers automatically after fault condition is removed





ENVIRONMENT



Working Temp., Humidity

-10℃~+60℃,20%~90%RH

Storage Temp., Humidity

-20℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0-50℃)

Vibration

10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes





SAFETY



Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC





STANDARD



Safety Standard

EN61347-1 EN61347-2-13 IP67

EMC Standard

EN55015 EN61547 EN61000-3.4 CLASSB





OTHERS

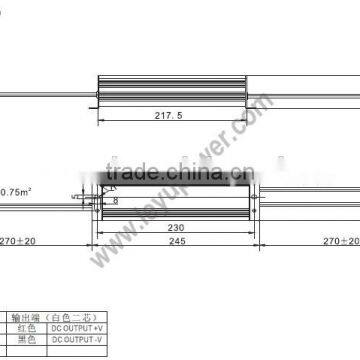

Dimension

215*69*43(L*W*H)

Weight

1.3Kg





Specification



LDV-30-12  LDV-50-12

LDV-60-12  LDV-100-12

LDV-150-12  LDV-200-12

LDV-250-12
