50W Power Supply With Battery Charger CE RoHS SCP-50-12 dc Output 13.8V UPS Function

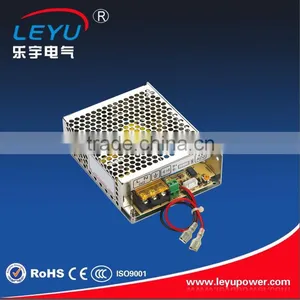

50W Power Supply With Battery Charger CE RoHS SCP-50-12 dc Output 13.8V UPS Function thumbnail-1
50W Power Supply With Battery Charger CE RoHS SCP-50-12 dc Output 13.8V UPS Function photo-1
US$ 11.63 - 12.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LEYU
Model Number:
SCP-50-12
Contact Supplier Request Quote Chat Now
Yueqing Leyu Electric Automation Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LEYU
Model Number SCP-50-12
Output Power 51 - 100W
Output Type Single
Input Voltage Other, 85-264VAC 120-370VCD
Output Voltage 13.8V
Output Frequency 47-63HZ
Output Current 3.6A

50W power supply with battery charger CE RoHS SCP-50-12 dc output 13.8V UPS function





50W Single Output UPS function Power Supply         SCP-50 series

Features:

  1. Universal AC input/Full rang
  2. Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
  3. Cooling by free air convection
  4. LED indicator for power on
  5. No load power consumption<1W
  6. Suitable for installation in metallic or non-metallic system enclosure
  7. 100% full load burn-in test
  8. 2 years warranty

SPECIFICATION

OUTPUT



Model

SCP-50-12

SCP-50-24

DC Voltage

13.8V

27.6V

Rated Current

3.6A

1.8A

Current Range

0-3.6A

0-1.8A

Rated Power

49.7W

49.7W

Ripple & Noise

120mVp-p

200mVp-p

Voltage Adj. Range

+15,-5%

+15,-5%

Voltage Tolerance

±2%

±1%

Inlet Stability

±1%

±1%

Load Stability

±2%

±1%

Setup, Rise

500ms,30ms/230VAC  1200ms,30ms/115VAC at full load

Hold Up Time

50ms/230VAC         16ms/115VAC at full load





INPUT



Voltage Range

85~264VAC   120-370VDC

Frequency Range

47-63Hz

AC Current

1.1A/115VAC     0.65A/230VAC

Efficiency

81%

85%

Inrush Current

Cold-start 45A

Leakage Current

<2mA/240VAC





PROTECTION



Over Load

4.3A~5.8A rated output power

2.2A~2.9A rated output power

Protection type: hiccup mode,recovers automatically after fault condition is removed

Over Voltage

16.6~19.3V

33.1~38.5V

Protection type: shut down o/p voltage, re-power on to recover





ENVIRONMENT



Working Temp., Humidity

-20℃~+60℃(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-40℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~45℃)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes





SAFETY



Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC





STANDARD



Safety Standard

UL60950-1,CCC,CE

EMC Standard

EN55022,CLASS B





OTHERS



Dimension

129*98*38mm(L*W*H)

Net Weight

375.7g

Packing

450g/pc  30pcs/carton
Advantages

50W power supply with battery charger CE RoHS SCP-50-12 dc output 13.8V UPS function

1.  Reply your inquiry in 24 working hours

2.  Customized design is avalible, OEM and ODM are welcomed

3.  Delivery the goods to our customers all over the world with speed and prscision

4.  Offer customers the lowest price with high quality power supply

Performance testing

50W power supply with battery charger CE RoHS SCP-50-12 dc output 13.8V UPS function50W power supply with battery charger CE RoHS SCP-50-12 dc output 13.8V UPS function



Certifications


50W power supply with battery charger CE RoHS SCP-50-12 dc output 13.8V UPS function



Wide Application

50W power supply with battery charger CE RoHS SCP-50-12 dc output 13.8V UPS function



Packaging & Shipping

50W power supply with battery charger CE RoHS SCP-50-12 dc output 13.8V UPS function



Company Information

LEYU Electric Automation Co.,Ltd. is a manfacturer specialized in developing, producing Power Supply/LED Driver/DC DC Converter in China for 10 years experience.We own CE, RoHS, CCC, and ISO9001 certification.

We are striving to provide the first-class products and service for you.



After-sale seivice

1. 2 years' warranty

2. Free tech support

3. Parts replacement for free

Thanks for visiting our website!

Any questions, please sned your Inquiry in the Below. Click "send" !

Your valuble suggetions will be highly appreciated!



Dear Friend ,



For this SCP-50-12 battery charger function power supply , we have enough stock .



When the order confirmed , can delivery the goods in 48 hours .



Thanks , looking forward to your enquiry .
