Specifications
12v 5v 5v multiple power supply1.CE RoHS,ISO9001 approve
2.High reliable and efficiency
3.Compact size, light weight
12v 5v 5v multiple power supply

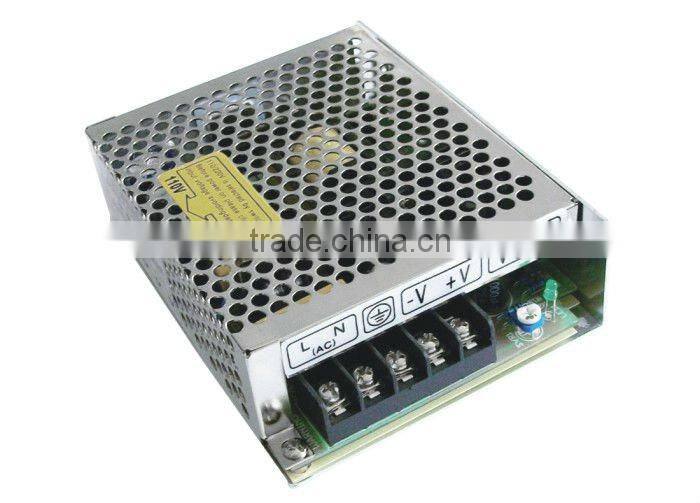

CE RoHS 30W 12v 5v 5v multiple power supply
Features:
High efficiency, high reliability, low cost
AC input range selected by switch
Protections: Short circuit/ Over load
LED indicator for power on
Cooling by free air convection
Fixed switch frequency at 23KHz
2 year warranty
Dimensions 129*98*38mm(L*W*H)
SPECIFICATIONS
INPUT
Voltage Range 85~132 VAC/170~264VAC47~63 Hz; selected by switch40~370VDC
AC Current 0.8A/115 V0.45A/ 230 V
Efficiency 70%(SKT-30A); 72%(SKT-30B)
Inrush Current Cold start 18A/115V36A/230V
Leakage Current <0.75mA/240VAC
PROTECTION
Over Load 105%~150%
Protection type: Fold back current limiting, recovers automatically after fault condition is removed
ENVIRONMENT
Working Temp., Humidity -10℃~+60℃; 20%~90 %RH
Storage Temp., Humidity -20℃~+85℃; 10%~95 %RH
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage I/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
STANDARD
Safety Standard Design refer to UL 1012
EMC Standard Design refer to FCC Part15 J Conduction Class A
OTHERS
Weight 0.42Kg
Packing 30pcs/13.6Kg/0.86CUFT
OUTPUT
Model |
T-30A |
T-30B |
||||
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
DC Voltage |
5V |
12V |
-5V |
5V |
12V |
-12V |
Voltage Tolerance |
±2% |
+2%,-6% |
+2%,-10% |
±2% |
+2%,-6% |
±6% |
Rated Current |
3A |
1A |
0.5A |
3A |
1A |
0.5A |
Current Range |
0.5-3A |
0.1-1A |
0.1-0.5A |
0.5-3A |
0.1-1A |
0.1-0.5A |
Rated Power |
30W |
30W |
30W |
33W |
33W |
33W |
Ripple & Noise |
50 mVp-p |
100 mVp-p |
50 mVp-p |
50 mVp-p |
100 mVp-p |
100 mVp-p |
DC Adjustment Range |
CH1: -5%,+10% |
|||||
Setup,Rise,Hold Time |
200ms,100ms,30ms at full load |
|||||
NOTE 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12"twisted pair-wire terminated with a 0.1μ &47μparallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation
