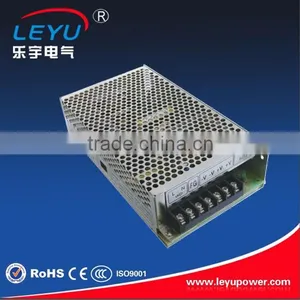

Triple output -5v 5v 12v CE CCC 120w power supply
SPECIFICATIONS | ||||||||||||
OUTPUT |
|
|||||||||||
Model |
T-120A |
T-120B |
T-120C |
T-120D |
||||||||
Output number |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
DC Voltage |
5V |
12V |
-5V |
5V |
12V |
-12V |
5V |
15V |
-15V |
5V |
12V |
24V |
Rated Current |
11A |
5A |
1A |
11A |
4.5A |
1A |
10A |
2.5A |
1A |
2A |
7A |
1A |
Current Range |
2-11A |
0.5-5A |
0.2-1A |
2-11A |
0.5-4.5A |
0.2-1A |
2-10A |
0.5-2.5A |
0.2-1A |
1-2A |
0.5-7A |
0.2-1A |
Rated Power |
120W |
121W |
118W |
118W |
||||||||
Ripple & Noise |
80mVp-p |
120mVp-p |
80mVp-p |
80mVp-p |
120mVp-p |
120mVp-p |
80mVp-p |
150mVp-p |
150mVp-p |
80mVp-p |
120mVp-p |
180mVp-p |
Voltage Adj. Range |
CH1;+10,-5% |
CH1:+10,-5% |
CH1:+10,-5% |
CH2:+10,-5% |
||||||||
Voltage Tolerance |
±2% |
±5% |
±5% |
±2% |
±5% |
±5% |
±2% |
±5% |
±5% |
±2% |
±6% |
±6% |
Inlet Stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±1% |
Load Stability |
±2% |
±6% |
±6% |
±2% |
±6% |
±6% |
±2% |
±6% |
±6% |
±2% |
±6% |
±6% |
Setup, Rise, Hold Up Time |
200ms,50ms,20ms at full load |
|||||||||||
|
|
|||||||||||
INPUT |
|
|||||||||||
Voltage Range |
85~132VAC/176~264VAC selected by switch 47~63Hz; 240~370VDC |
|||||||||||
AC Current |
2.5A/115V 1.25A/230A |
|||||||||||
Efficiency |
77% |
77% |
76% |
80% |
||||||||
Inrush Current |
Cold start 30A/115V 60A/230V |
|||||||||||
Leakage Current |
<3.5mA/240VAC |
|||||||||||
|
|
|||||||||||
PROTECTION |
|
|||||||||||
Over Load |
105%~150% |
|||||||||||
|
Protection type: Fold back: current limiting; reset: auto recovery |
|||||||||||
|
|
|||||||||||
ENVIRONMENT |
|
|||||||||||
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve), 20%~90%RH |
|||||||||||
Storage Temp., Humidity |
-20℃~+85℃,10%~95%RH |
|||||||||||
Temp. Coefficient |
±0.03%/℃(0-50℃) ON+5V |
|||||||||||
Vibration |
10-500Hz,2G 10min,/1cycle,Period for60min,Each axes |
|||||||||||
|
|
|||||||||||
SAFETY |
|
|||||||||||
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|||||||||||
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||||||||
|
|
|||||||||||
STANDARD |
|
|||||||||||
Safety Standard |
Meet UL 1012 requirement(Not apply for the mark) |
|||||||||||
1. Reply your inquiry in 24 working hours
2. Customized design is avalible, OEM and ODM are welcomed
3. Delivery the goods to our customers all over the world with speed and prscision
4. Offer customers the lowest price with high quality power supply
LEYU Electric Automation Co.,Ltd. is a manfacturer specialized in developing, producing Power Supply/LED Driver/DC DC Converter in China for 10 years experience.We own CE, RoHS, CCC, and ISO9001 certification.
We are striving to provide the first-class products and service for you.
1. 2 years' warranty
2. Free tech support
3. Parts replacement for free
