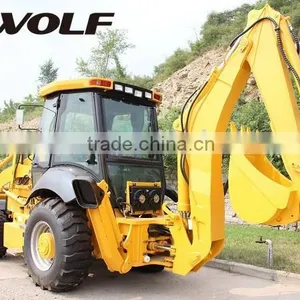

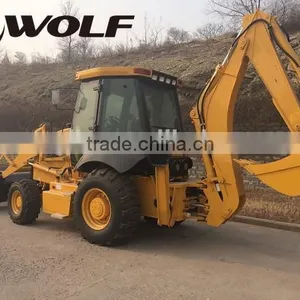

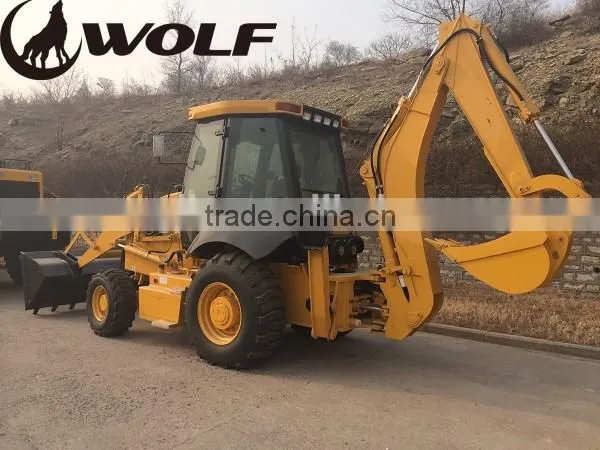

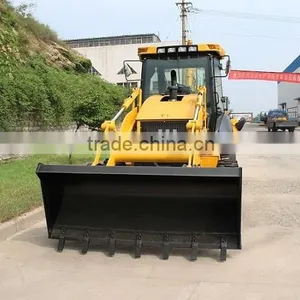

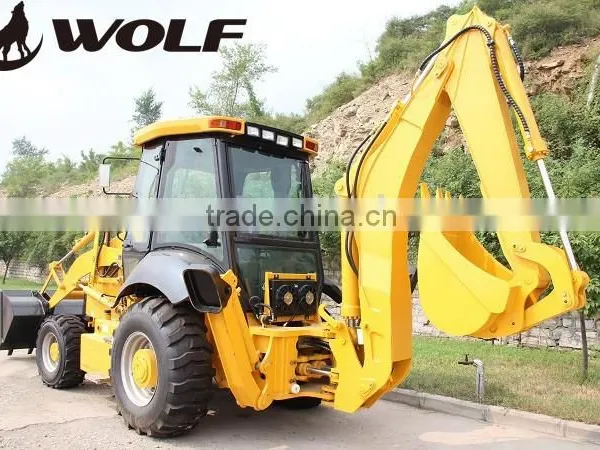

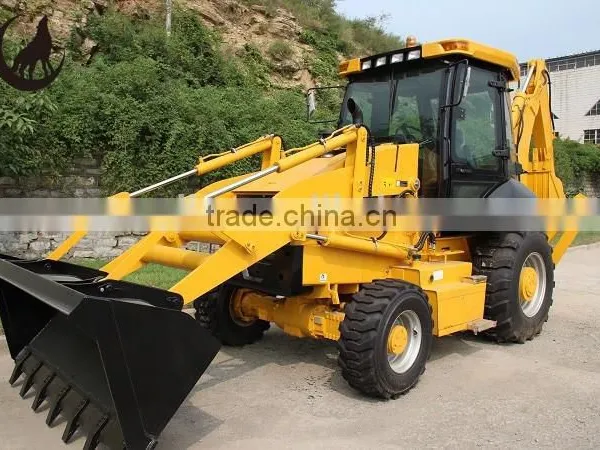

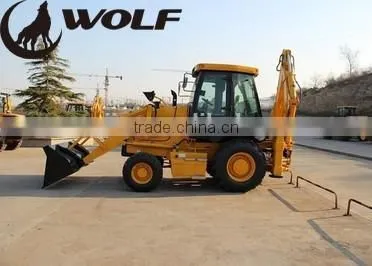

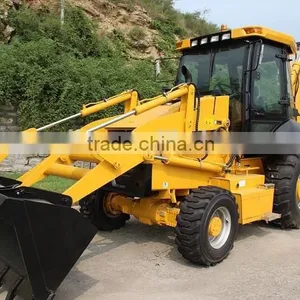

WOLF JX45 backhoe loader for sale,backhoe loader with hydraulic hammer
Standard configuration
Backhoe loader JX45,JCB type,with YTR4108 engine 55kw,joystick,air condition,
Beilian gearbox,Yunyu axle,Jinan pump
optional configuration
Italy Carro gearbox axle,hydraulic system
Transport Dimension |
L*W*H (mm) |
5919×2217×3764 |
Overall Operating Weight |
8125KG |
|
Bucket Capacity |
1.0m3 |
|
Breakout Force |
38KN |
|
Loading Lifting Capacity |
2500KG |
|
Bucket Dumping Height |
2742mm |
|
Bucket Dumping Distance |
1062mm |
|
Digging Depth |
52mm |
|
Backhoe Capacity |
0.3 m3 |
|
Max. Digging Depth |
4082mm |
|
Swing Angle of Excavator Grab |
190o |
|
Max. Pulling Force |
39KN |
|
Engine |
Standard engine |
YTR4108 / 55kw |
Optional engine |
CUMMINS 4BTA3.9-C100 Deutz WP4G95E221 |
|
Rated Power |
74KW/100HP 70KW/95HP 55KW/74HP |
|
Rated Speed |
2400r/min |
|
Steering System |
Model of Steering Device |
BZZ5-250 |
Steering Angle |
±36 o |
|
Min. turning radius |
6581mm |
|
Axle |
Manufacturer |
Feicheng Axle Factory |
Final Reducer |
Single Stage Final Reducer |
|
Transmission System | ||
Torque Converter |
Model |
YJ280 |
Type |
Single-stage Three Elements |
|
Cooling Method |
Oil-cooling Pressure Circulation |
|
Gearbox |
Type |
Fixed Shaft Power Transmission |
Oil Pressure of Clutch |
1373Kpa—1569 Kpa |
|
Gears |
Two Gears Ahead, Two Gears Astern |
|
Tyre |
standard |
14-17.5/19.5L-24 |
|
Brake System |
Service Brake |
Air Over Oil Caliper Brake |
External Type | ||
Self-regulation | ||
Self-balance | ||
Emergency Brake |
Operation Power Implementing brake |
|
Manual Operation Power Terminating Brake | ||
Hydraulic System |
Digging Power of Excavator Grab |
46.5KN |
Digging Power of Dipper |
31KN |
|
Bucket Lifting Time |
5.4S |
|
Bucket Lowering Time |
3.1S |
|
Bucket Discharge Time |
2.0S |
|

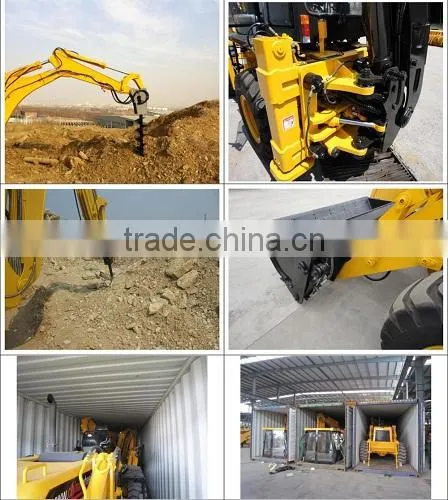

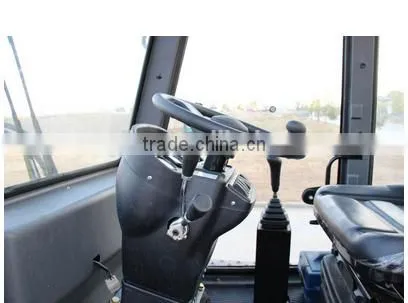

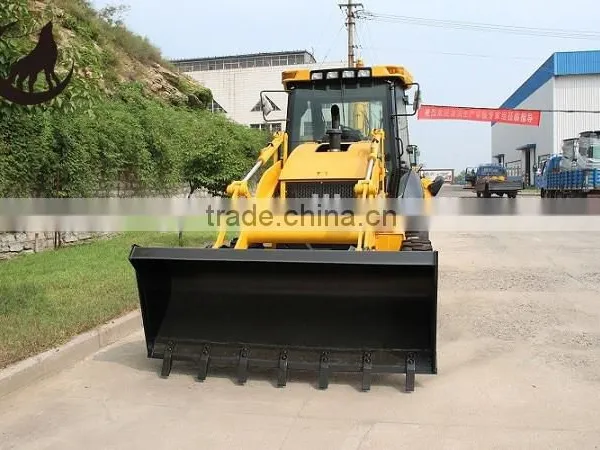

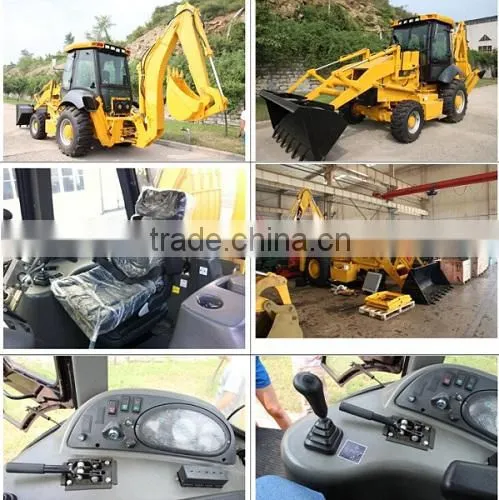

From detailed pictures you could have a better understanding of our products

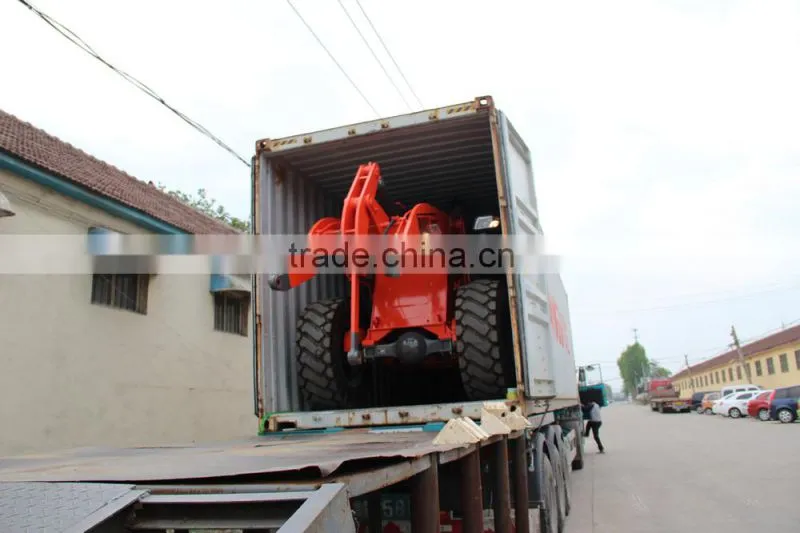

Machine are packed into container and fixed by steel cable to avoid collision during shipment.
1 set in a 40HQ, 2 sets in one 40HQ+one 20GP, 3 sets in two 40HQ
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
|
|
|
|
|
1.For Zongjin,we have a professional sales and after-service team.
We provide one year warranty for free.During the warranty,if there is any quality issue(expect easy-demaged parts),we wil provide the new accessories for you through verifying.
2.We provide the technology consult whenever you have the questions about our products,and we are pleased to help you solve any questions all the time.
I'm Helen,welcome to contact me for more information! I will try my best to make best service for you!!
Skype: helen_2879
whatsapp/telephone/wechat : 008615315503696
facebook website: /profile.php?id=100004504699287
