high voltage power supply 1000w 24V power supply SCN-1000-24 power supply with parallel function
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.If need samples, pls click this link of our aliexpress shop, much more discount on our store. /store/509864
e.2 years warrenty ,buy with confidence
1.Features:
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Data sheet :
we can stick customers' label as long as you can purchase enough quantity in a time.
1000W Single Output with Parallel Function SCN-1000 series
Features:
105℃ output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short -circuit and overload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter,minimum wave
Model | SCN-1000-12 | SCN-1000-15 | SCN-1000-24 | SCN-1000-27 | SCN-1000-48 |
DC Voltage | 12V | 15V | 24V | 27V | 48V |
Rated Current | 80A | 67A | 40A | 24A | 20A |
Current Range | 0-80A | 0-67A | 0-40A | 0-37A | 0-20A |
Rated Power | 960W | 1005W | 960W | 999W | 960W |
Ripple & Noise | 200mVp-p | 200mVp-p | 240mVp-p | 240mVp-p | 300mVp-p |
Voltage Adj. Range | 10~13.2V | 13.5~18V | 20~26.4V | 24~30V | 41~56V |
Voltage Tolerance | ±10% | ±10% | ±5% | ±5% | ±5% |
Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Setup, Rise, Hold Up Time | 1.5s,50ms,20ms at full load | ||||
|
| ||||
INPUT |
| ||||
Voltage Range | 90~130VAC/180~264VAC 47~63Hz | ||||
AC Current | 20A/115V 10A/230V | ||||
Efficiency | 75% | 75% | 78% | 80.00% | 84.00% |
Inrush Current | Cold-start current 60A 230V | ||||
Leakage Current | <3.5mA/240VAC | ||||
|
| ||||
PROTECTION |
| ||||
Over Load | 105%~135% | ||||
Protection type: plusing hiccup shutdown Reset:Fecycle AC ON/OFF | |||||
Over Temp. | RTH≥80℃ output shutdown | ||||
| |||||
|
| ||||
ENVIRONMENT |
| ||||
Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | ||||
Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | ||||
Temp. Coefficient | ±0.03%/℃(0~50℃) | ||||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes | ||||
|
| ||||
SAFETY |
| ||||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||
|
| ||||
STANDARD |
| ||||
Safety Standard | Meet UL1950requirement(Not apply for the mark) | ||||
EMC Standard | CISPR22(EN55022),IEC1000-4,2,3,4,5,6,8,11 IEC1000-3-2 | ||||
|
| ||||
OTHERS |
| ||||

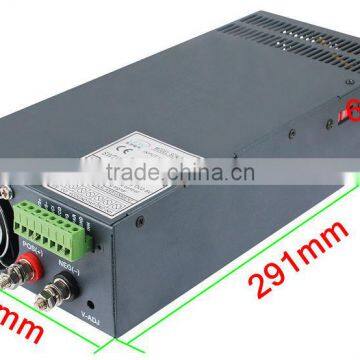

Dimension | 291*132*68mm(L*W*H) | ||||
Weight | 2.3Kg | ||||
high volatge power supply
1.Why Choose Us?
1.We are factory, can offer your reasonable price.
2. 8 years focus on the LED Power Supply Research and development, Production.
3. Your inquiries will be replied in 24hours.
4. We provide two years warranty of quality after sale.
5. OEM & ODM are available.
6.Track the order until you get the goods.
2.About Us
Our products have high quality and support two years warranty.
All the inner components of led driver are imports,
the productive process go through multiple testing to ensure every product are good.
3-promise
1. Your inquiry related to our products or prices will be replied in 24hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3. Any your customized demand we can help you to design and put into product;
4. As professional led power supply Manufacturer, we must give you the lowest price with high quality.
4-our service
1.Your inquiries will be replied in 24hours.
2.Track the order until you get the goods.
3.OEM & ODM are available.
4.We provide two years warranty of quality after sale
Thanks for your time,we are looking forward to your inquiry
