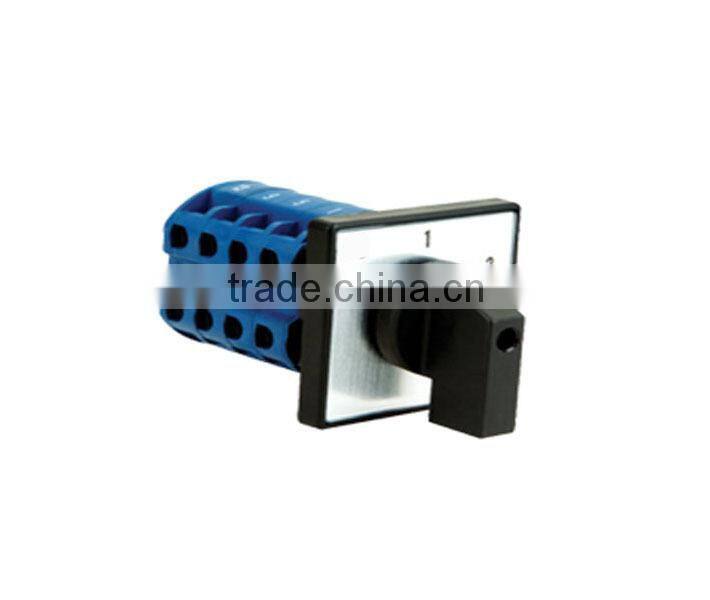

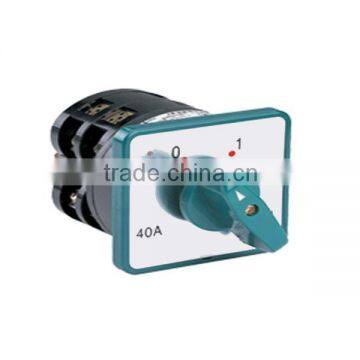

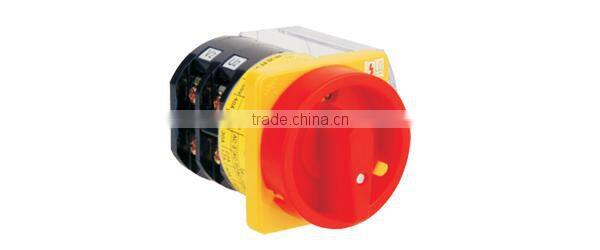

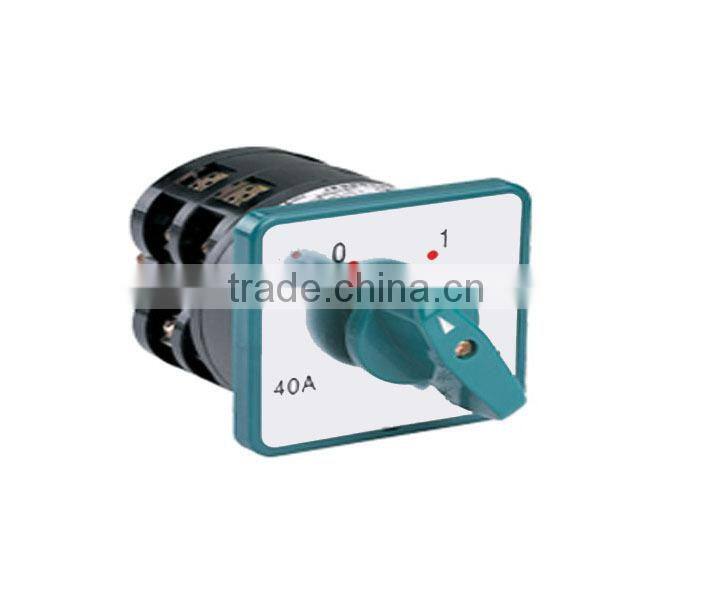

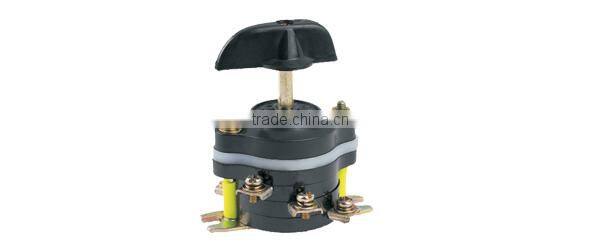

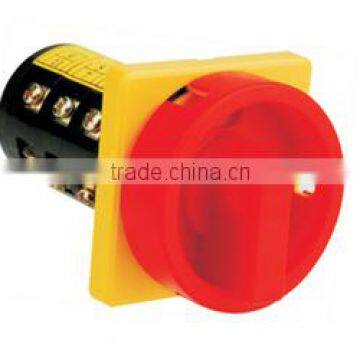

HZ12 (ROHS,CE certificate) red yellow rotary switch 3 position
l Introduction
The HZ12 series combination switch have basic type,GS pad-lock tye,Key lock type,inter lock type.
every type has normal and quick stop type.
normal type use black plate and black knob.
quick stop use the yellow plate and red knob.
l Technical parameters
Description | HZ12-16 | HZ12-25 | HZ12-40 | ||||
Rated thermal currentITH | A | 16 | 25 | 40 | |||
Rated working voltageUe | V | 240 | 440 | 240 | 440 | 240 | 440 |
Rated working currnetLe |
|
|
|
|
|
|
|
AC-3 | A |
| 11 |
| 15 |
| 30 |
AC-15 | A | 8 | 6 | 12 | 8 | 22 | 12 |
AC-23 | A |
| 11 |
| 15 |
| 30 |
AC-21 | A |
| 16 |
| 25 |
| 40 |
1.What is the warranty of your rotary switches?
The warranty of our switching power supply are 2 years
2. Do you accept OEM for the rotary switch ?
Yes. we do .
3.What certification you have for the rotary switch ?
We have CE , ROHS , CCC , ISO9001 , IP67
4.How to Contact Us ?
Send your inquiry Details in the below, Click "Send" Now !
