On/Off Rotary Selector Switch1.Rated current of rotary switch is 10A-160A
2.Functions:control switch and motor switch

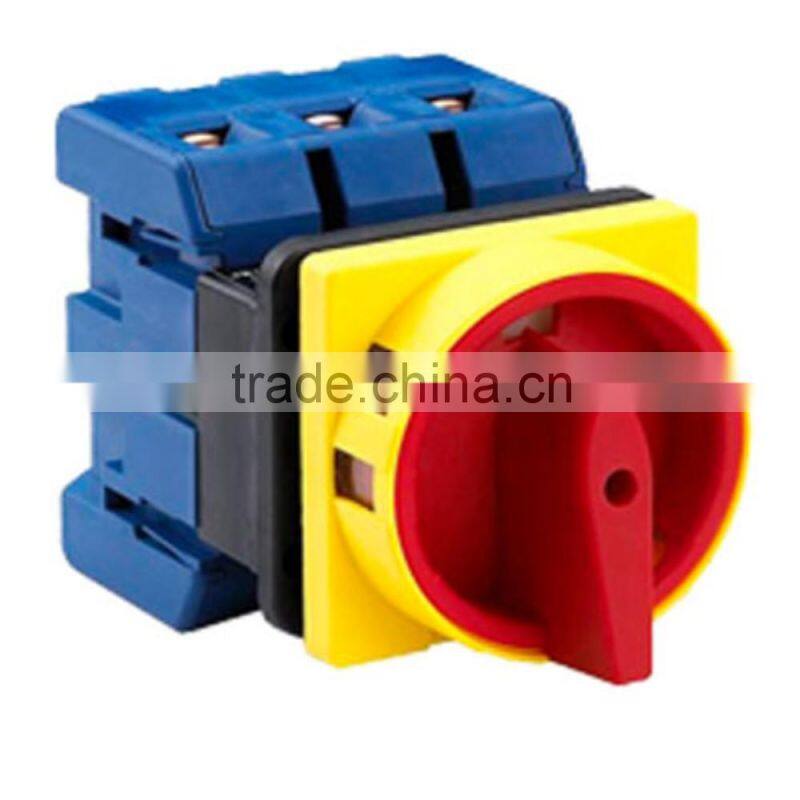

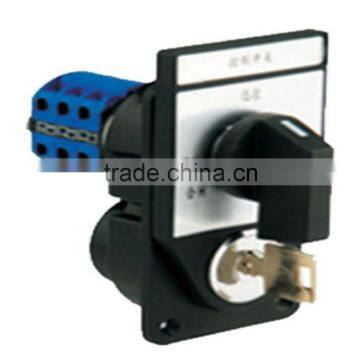

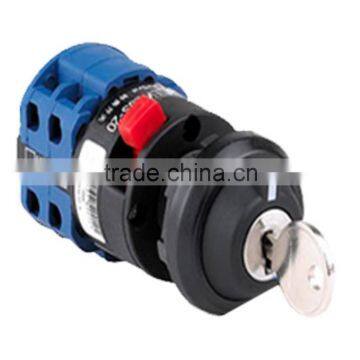

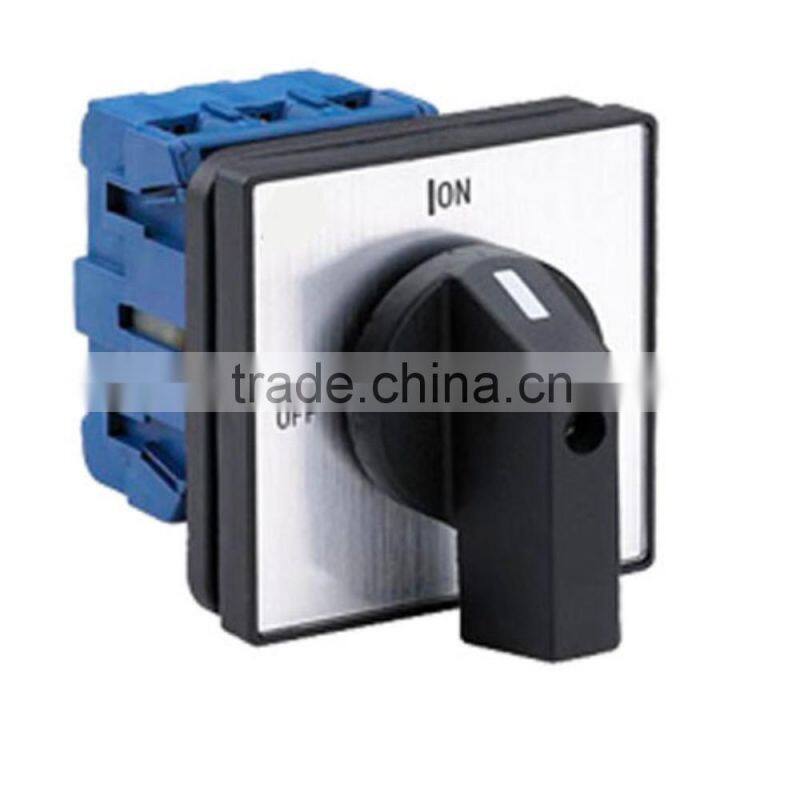

CE RoHS approval LW30 series On/Off Rotary Selector Switch
l Introduction
l LW30 series rotary switches applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A.
LW30 is suitable to control:air-conditioner,water pump and ventilating equipments,and AC motors with small power..
LW30 series rotary switches have six current ratings:20A,25A,32A,40A,63A,80A and 100A.
LW30 series has the finger protection terminals,which offers an extra advantage.
LW30 series switches has Larger insulation distance,quick disconnectinvg response.And is a good choice For DC circuits.LW 30 has additional contact which enable us to install the contact separetely.
LW30 series rotary switches switches comply with:GB/T 14048.3,and IEC 60947-3.
l Technical parameters
Description | LW30-25(20) | LW30-32 | LW30-40 | LW30-63 | LW30-80 | LW30-100 | ||||||||
Rated thermal current | ITH | A | 25(20) | 32 | 40 | 63 | 80 | 100 | ||||||
Rated working voltage | LE | V | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
Ie/Pe | Ie/Pe |
|
|
|
|
|
|
|
|
|
|
|
|
|
AC-21A |
| A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- |
AC-22A |
| A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- |
AC-23A |
| A/KW | 15/4 | 15/7.5 | 22/5.5 | 22/11 | 30/7.5 | 30/15 | 43/11 | 43/22 | 57/18.5 | 57/30 | 70/22 | 70/37 |
AC-3 |
| A/KW | 11.7/3 | 11.7/5.5 | 15/4 | 15/7.5 | 22/7.5 | 22/11 | 36/11 | 36/18.5 | 43/15 | 57/30 | 57/18.5 | 57/30 |
Dimensions and installation

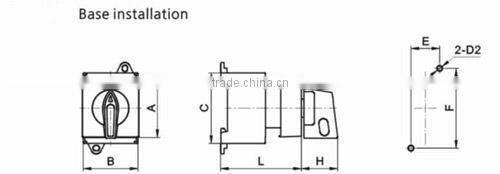

Base installation
Description | Dimensions(mm) | Installation(mm) | ||||||
A | B | C | L | H | E | F | D2 | |
LW30-20 | 45 | 42 | 54 | 50 | 26 | 22 | 60 | Φ4.2 |
LW30-25 | 45 | 42 | 54 | 50 | 26 | 22 | 60 | Φ4.2 |
LW30-32 | 45 | 42 | 54 | 50 | 26 | 22 | 60 | Φ4.2 |

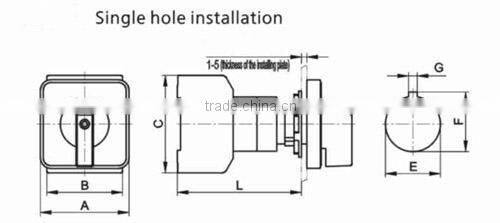

Single hole installation
| Installation(mm) | ||||||
A | B | C | L | E | F | G | |
LW30-20 | 49 | 42 | 54 | 69 | 22.3 | 24.1 | Φ3.2 |
LW30-20 | 64 | 42 | 54 | 69 | 22.3 | 24.1 | Φ3.2 |
LW30-25 | 49 | 42 | 54 | 69 | 22.3 | 24.1 | Φ3.2 |
LW30-25 | 64 | 42 | 54 | 69 | 22.3 | 24.1 | Φ3.2 |
LW30-32 | 49 | 42 | 54 | 69 | 22.3 | 24.1 | Φ3.2 |
LW30-32 | 64 | 42 | 54 | 69 | 22.3 | 24.1 | Φ3.2 |
