Accept OEM 4MM 60mm black Heat Shrink Tubing for Remote control aircraft Heat Shrink Tube

Accept OEM 4MM 60mm black Heat Shrink Tubing for Remote control aircraft Heat Shrink Tube

1.Application

L-2 is environment friendly, flexible, flame-retardant, irradiated crosslinking heat-shrinkable modified polyolefin tubing. Unlike other typical flame-retarant tubings,This high-reliability product is widely used for insulation or jacketing of wire harness, strain relief of wire terminations and connections, bundling of wire harness, protection of soldered points, insulation and capsule of electronic components, anti-corrosive protection, identification and color coding, etc.

2.Features/Benefits

·Shrink ratio: 2:1.

·Very flexible, highly flame-retardant.

·Low shrink temperature.

·Good thermal stability.

·Excellent physical, chemical and electrical properties.

·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.

·Wide range of sizes and colors.

3.Operating Temperature Range

Operating temperature range: -55°C~135°C

Minimum shrink temperature: 70°C

Minimum full recovery temperature: 110°C

4.Standards/Approvals

UL224 E214175 125 600V VW-1

CSA C22.2  210475 125 600V VW-1

AMS-DTL-23053/5 class 1 and class 3

5.Ordering Information

1) Color

Standard: Black (-BK), white (-WH), red (-RD), blue (-BL), yellow (-YL), green (-GR)

Nonstandard: Brown (-BR), orange (-OR), violet (-VT), gray (-GY), yellow & green stripe (-GYS)

2) Nonstandard size

Special sizes are available upon request

3) Standard packaging

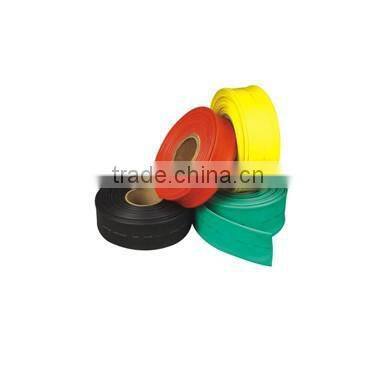

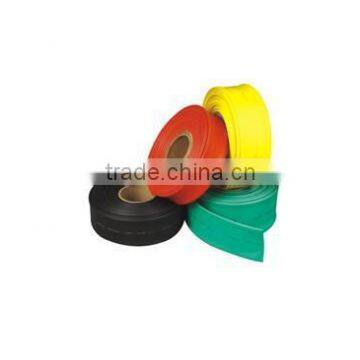

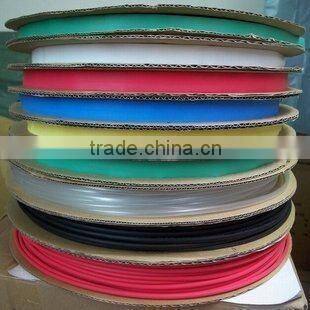

On spools. Cut pieces are available upon request

4) Ordering description

Specify product type, size (mm or inch) and color
