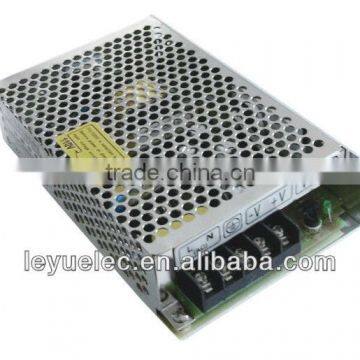

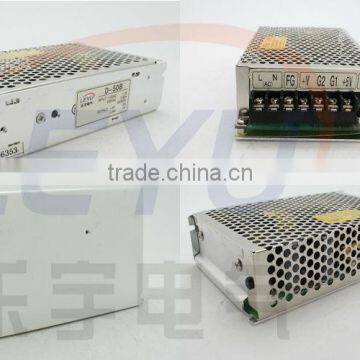

China Reliable Company NED-50A Dual Output 5V 12V Switching Power Supply CE ROhs

SPECIFICATIONS

OUTPUT

Model

D-50A

D-50B

Output number

CH1

CH2

CH1

CH2

DC Voltage

5V

12V

5V

24V

Rated Current

6A

2A

6A

1A

Current Range

1-6A

0.3-2A

1-6A

0.2-1A

Rated Power

54W

54W

Ripple & Noise

50mVp-p

100mVp-p

50mVp-p

100mVp-p

Voltage Adj. Range

CH1: -5%, +10%

CH1: -5%, +10%

Voltage Tolerance

±2%

+5%,-8%

±2%

±8%

Setup, Rise, Hold Up Time

200ms,50ms,20ms at full load

INPUT

Voltage Range

85~132VAC/170~264VAC selected by switch   47~63Hz; 240~370VDC

AC Current

1.3A/115V   0.65A/230V

Efficiency

73%

73%

Inrush Current

Cold start 18A/115V   36A/230V

Leakage Current

<0.5mA/240VAC

PROTECTION

Over Load

105%~150%

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃; 20%~90%RH

Storage Temp., Humidity

-20℃~+85℃; 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Zaxes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to FCC Part15 J Conduction

OTHERS

Dimension

159*97*38mm(L*W*H)

Weight

0.53Kg

Packing

24pcs/13.6Kg/0.75CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.
