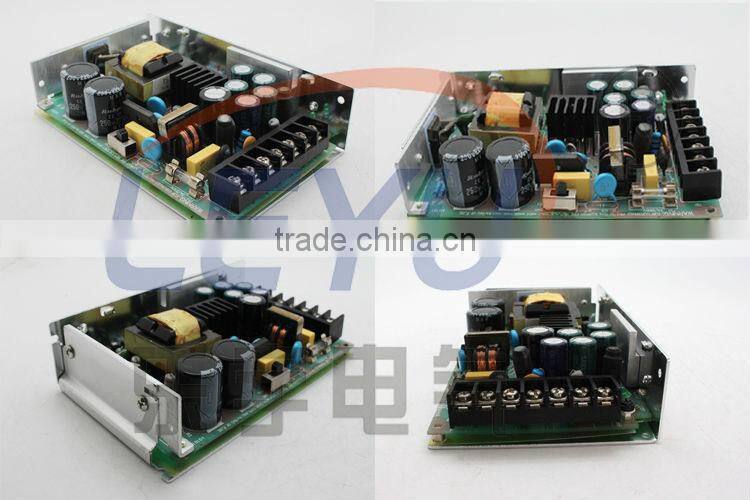

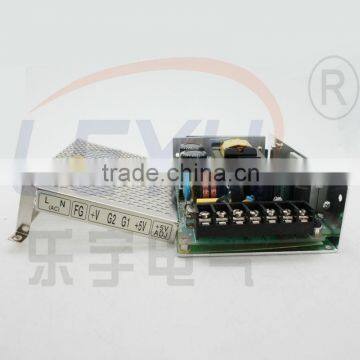

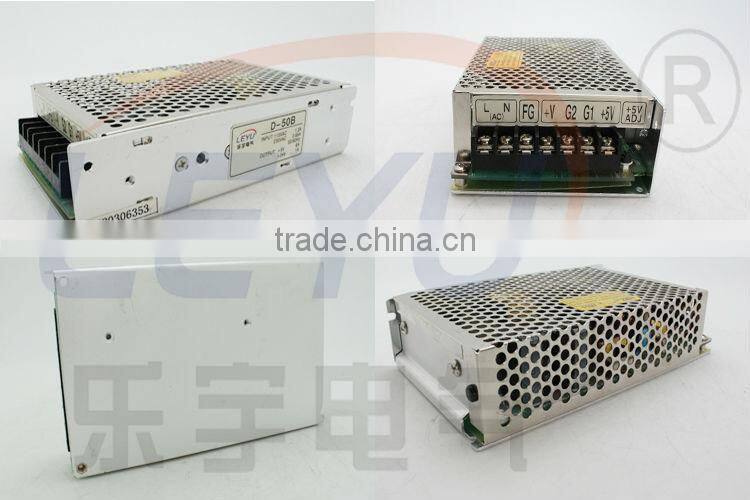

AC DC Single Output 12v 5v Dual Power Supply

Name: AC DC Single Output 12v 5v Dual Power Supply
Brand: Leyu
SKU: 113130215
Availability: InStock

Yueqing Leyu Electric Automation Co., Ltd.

US$ 6.35 - 8.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Leyu

Model Number:

D-50A dual power supply

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Leyu

Model Number D-50A dual power supply

Output Power 1 - 50W

Output Type Dual

Input Voltage Other, 85--132VAC 170--264VAC selected by switch

Output Voltage 5V 12V

Output Frequency 60-100KHZ

Output Current 1.0A-6.0A 0.3A-2.0A

Specifications

dual power supply:
1.led indicator for power on
2.Protection: Short circuit,OLP,OVP
3.100%burn-in test

2 years warranty China golden supplier dual output power 220v

Advantages

1. Reply your inquiry in 24 working hours

2. Customized design is avalible, OEM and ODM are welcomed

3. Delivery the goods to our customers all over the world with speed and prscision

4. Offer customers the lowest price with high quality power supply

Full specification

SPECIFICATIONS
OUTPUT

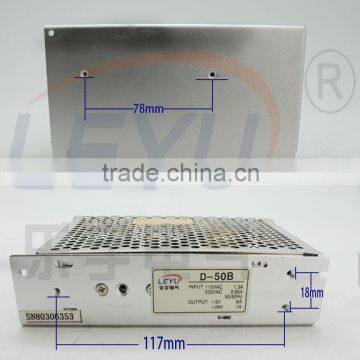

Model	D-50A		D-50B
Output number	CH1	CH2	CH1	CH2
DC Voltage	5V	12V	5V	24V
Rated Current	6A	2A	6A	1A
Current Range	1-6A	0.3-2A	1-6A	0.2-1A
Rated Power	54W		54W
Ripple & Noise	50mVp-p	100mVp-p	50mVp-p	100mVp-p
Voltage Adj. Range	CH1: -5%, +10%		CH1: -5%, +10%
Voltage Tolerance	±2%	+5%,-8%	±2%	±8%
Setup,Rise,Hold Up Time	200ms,50ms,20ms at full load

INPUT
Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
AC Current	1.3A/115V 0.65A/230V
Efficiency	73%		73%
Inrush Current	Cold start 18A/115V 36A/230V
Leakage Current	<0.5mA/240VAC

PROTECTION
Over Load	105%~150%
	Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Zaxes

SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	Design refer to UL1012
EMC Standard	Design refer to FCC Part15 J Conduction
