Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12

Name: Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12
Brand: LEYU DR-45-12
SKU: 113128927
Availability: InStock

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 thumbnail-1

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 thumbnail-2

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 thumbnail-3

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 thumbnail-4

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 thumbnail-5

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 thumbnail-6

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 photo-1

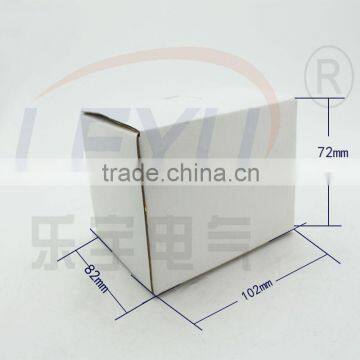

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 photo-2

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 photo-3

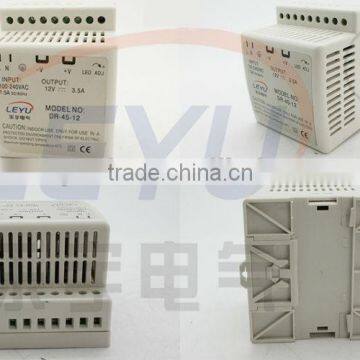

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 photo-4

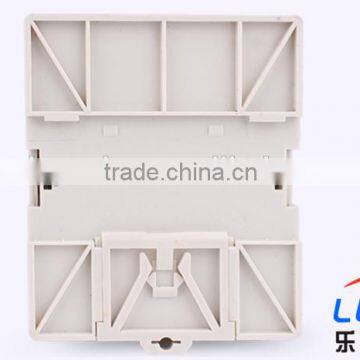

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 photo-5

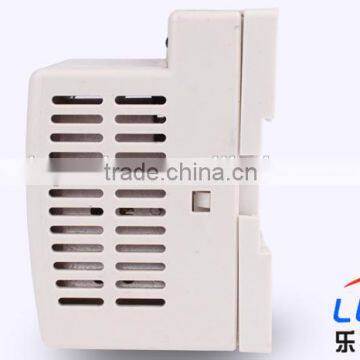

Full Range 110V/220V INPUT Switching Power Supply SMPS DIN RAIL Series DR-45-12 photo-6

US$ 11.35 - 13 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

LEYU DR-45-12

Model Number:

DR-45-12V

Contact Supplier Request Quote Chat Now

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name LEYU DR-45-12

Model Number DR-45-12V

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 85~264VAC 47~63Hz; 120~370VDC

Output Voltage 12V DR-45-12

Output Frequency 25~100KHz

Output Current 3.5A DR-45-12

Full range 110V/220V INPUT Switching power supply SMPS DIN RAIL Series DR-45-12

DR-45-12

Product Description

45W Single Output Industrial DIN Rail Power Supply DR-45 series

Features:
Universal AC input/ full range
Protections: Short circuit/Over load/Over voltage/Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at 100KHz
1 year warranty

SPECIFICATIONS
OUTPUT
Model	DR-45-5	DR-45-12	DR-45-15	DR-45-24
DC Voltage	5V	12V	15V	24V
Rated Current	5A	3.5A	2.8A	2A
Current Range	0-5A	0-3.5A	0-2.8A	0-2A
Rated Power	25W	42W	42W	48W
Ripple & Noise	100mVp-p	200mVp-p	240mVp-p	480mVp-p
Voltage Adj. Range	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
Voltage Tolerance	±2%	±1%	±1%	±1%
Setup, Rise, Hold Up Time	800ms,100ms, 50ms/230VAC at full load

INPUT
Voltage Range	85~264VAC 47~63Hz; 120~370VDC
AC Current	1.5A/115V 0.75A/230V
Efficiency	72%	77%	77%	80%
Inrush Current	Cold start 30A/115V 60A/230V
Leakage Current	<1mA/240VAC

PROTECTION
Over Load	105%~150%
	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	115%~135%
	Protection type: Shut off o/p voltage, clamping by zener diode
Over Temp..	Tj 135℃ typically (U1) Detect on heat sink of power transistor
	Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT
Working Temp., Humidity	-10℃~+50℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

STANDARD
Safety Standard	Design refer to UL508,TUV EN60950-1
EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2

OTHERS

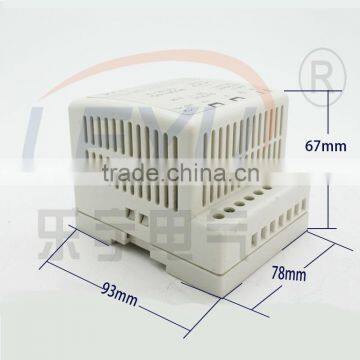

Dimension	937867mm (LWH)
Weight	0.31Kg
Packing	48pcs/16.1Kg/1.3CUFT

NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
