Single Output DC-DC Converter 15W 24V Dc-dc Power Converter

Name: Single Output DC-DC Converter 15W 24V Dc-dc Power Converter
Brand: Leyu
SKU: 113127017

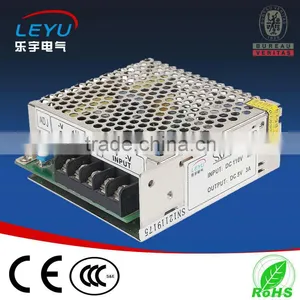

Single Output DC-DC Converter 15W 24V Dc-dc Power Converter thumbnail-1

Single Output DC-DC Converter 15W 24V Dc-dc Power Converter photo-1

US$ 7.28 - 10.67 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Leyu

Model Number:

SD-15A-24 15w dc-dc converter

Contact Supplier Request Quote Chat Now

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Leyu

Model Number SD-15A-24 15w dc-dc converter

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 9-18V

Output Voltage 24V

Output Frequency 25k-100KHz

Output Current 0.625A

Single output DC-DC Converter 15W 24V dc-dc power converter

Advantages

1. Reply your inquiry in 24 working hours

2. Customized design is avalible, OEM and ODM are welcomed

3. Delivery the goods to our customers all over the world with speed and prscision

4. Offer customers the lowest price with high quality power supply

Full specification

2:1 wide input range

Protections: Short circuit/Over load /voltage

Built-in EMI filter, low ripple noise

100% full load burn-in test

Low cost, high reliability

2 years’ warranty

SPECIFICATION
OUTPUT
Model	SD-15A-5	SD-15B-5	SD-15C-5	SD-15A-12	SD-15B-12	SD-15C-12	SD-15A-24	SD-15B-24	SD-15C-24
Dc Voltage	5V			12V			24V
Rated Current	3A			1.25A			0.625A
Current Range	0 ~ 3A			0 ~ 1.25A			0 ~ 0.625A
Rated Power	15W			15W			15W
Ripple & Noise	100mVp-p			120mVp-p			150mVp-p
Voltage Adj. Range	4.75~5.5VDC			10.8~13.2VDC			21.6~26.4VDC
Voltage Tolerance	±2.0%			±1.0%			±1.0%
Line Regulation	±0.5%			±0.3%			±0.2%
Load Regulation	±0.5%			±0.3%			±0.2%
Setup, Rise, Hold Up Time	2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load

INPUT
Voltage Range	A: 9.2 ~18VDC B:18 ~ 36VDC C:36~72VDC
Efficiency	68%	76%	75%	72%	76%	79%	70%	77%	78%
DC Current	1.9A/12VD 0.9A/24VDC 0.45A/48VDC

PROTECTION
Over Load	105 ~ 160% rated output power
	Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	5.75 ~ 6.75V			13.8 ~ 16.2V			27.6 ~ 32.4V
	Protection type : Shut down o/p voltage, clamping by zener diode

ENVIRONMENT
Working Temp.	-10 ~ +60℃ (Refer to “Derating Curve”)
Working Humidity	20 ~ 90% RH non-condensing
Storage Temp., Humidity	-20 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient	±0.03%/℃ (0 ~ 50℃)
Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC
Withstand Voltage	I/P-O/P:2KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC Emission	Compliance to EN55022 (CISPR22)
EMC Immunity	Compliance to EN61000-4-2,3,4,6,8, EN55024, light industry level, criteria A

OTHERS
Dimension	999736 (LWH)
Weight	0.18kg
Packing	60 PCS/11.8kg

NOTE
1. All parameters NOT specially mentioned are measured at normal input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
