Detailed Images
Main Features:

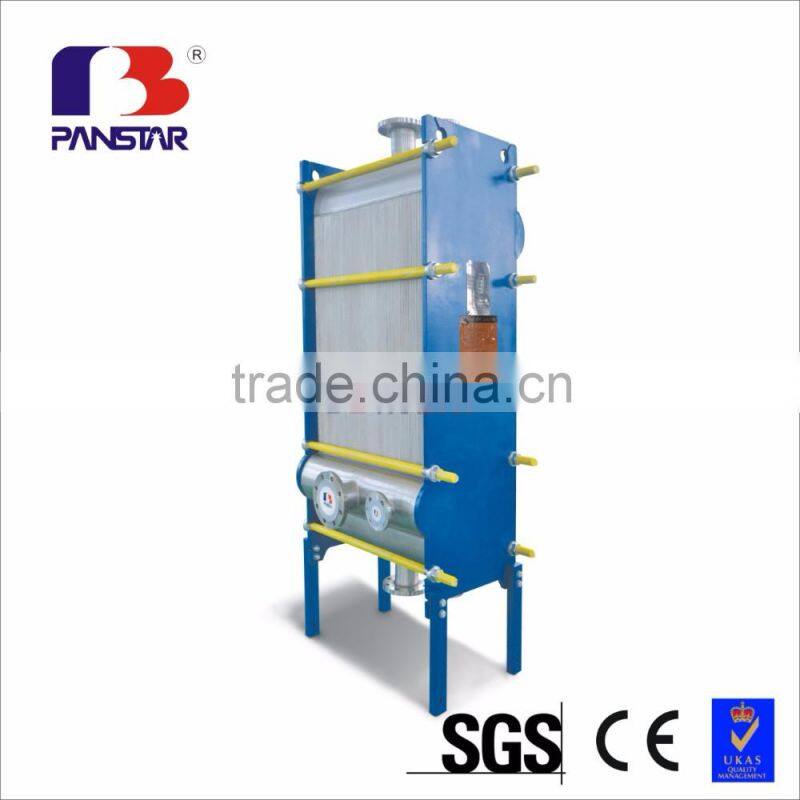

Full body welded heat exchanger for petroleum and automotive industry high transfer efficiency
1) Compact structure, small covering area , high efficiency, and high pressure (up to a maximum of 4.0 Mpa), resistant to high temperatures (temperatures up to ~ 300℃), reliable operation;
2) High heat transfer efficiency: heat exchange medium is realized through the plate, the plates was pressed by special mould , the structure like removable plate heat exchanger. It has high heat transfer efficiency, Large flow , small fluid pressure drop, less heat loss and so on;
3) Easy and flexible: using one mold can press different length and specification of plates, forming the same width products, meeting more needs of working conditions;
4) Applies range wide: the plates and the pressure plate both using welding structure, it can work well for temperature ≤ 300 ℃, pressure ≤ 4.0 Mpa or the media has corrosion of occasions and flammable. easy burst, toxic media and the high environment requirements security , and liquid media of cooling, warming, evaporation, Therefore, Both the advantages of plate heat exchanger, with high temperature & pressure.
Related Products
Series |
Specifications and models |
Exterior dimension (mm) |
Maximum assemble area (m2) |
Nozzle diameter (hot side) |
Nozzle diameter (cold side) |
||
Maximum length |
Width |
Height |
|||||
PQH series |
PQH06 |
960 |
262 |
910 |
9 |
DN150 |
DN80 |
PQH18 |
1050 |
367 |
1425 |
32 |
DN200 |
DN80 |
|
PQH30 |
2750 |
427 |
1664 |
90 |
DN250 |
DN125 |
|
PQH40 |
2800 |
450 |
1974 |
120 |
DN250 |
DN100 |
|
PQH60 |
2900 |
511 |
2186 |
180 |
DN350 |
DN200 |
|
PQH90 |
3100 |
718 |
2560 |
450 |
DN500 |
DN300 |
|
PQH110 |
3300 |
718 |
2860 |
550 |
DN500 |
DN300 |
|
PQH130 |
3500 |
718 |
3160 |
650 |
DN500 |
DN300 |
|

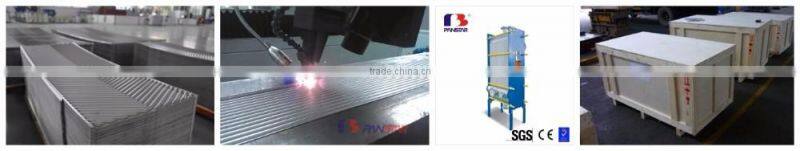

Welding machine after shrinkage less distortion, overall dimension can guarantee
Small heat-affected zone, thermal deformation. reduces corrosion, avoid stress corrosion cracking
Panstar laser welding Traditional argon-arc welding
Company Informaton
Certification
Packaging & Shipping
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We own a factory, which is a professional manufacturer, located in Yangzhou China. It is a joint venture company invested by British PANSTAR Co., LTD and China TPY Group.
Q2: Can I have a sample for testing?
A2: Yes, a metal plate or a gasket sample is available for you, please contact sales staff before.
Q3: What is the measure of the plate heat exchanger?
A3: We will design the measure according to your detailed requirements and working conditions.
Q4: Can I add my logo on the product?
A4: Yes, OEM is available. Customized label service is OK.
Q5: Will your company provide after-sales service?
A5: Yes, overseas third-party support is available.
Q6: Where is your factory? How can I visit there?
A6: The factory address is NO. 3 Jinyuan Road AnYi Industrial Park, Baoying Yangzhou City,China. It takes 25 minutes by train from Shanghai. Warmly welcome you to visit us!
Q7: What parameters should I provide when I post an inquiry?
A7:
Working Conditions | ||||
Items |
Unites |
Hot side |
Cold side |
Remarks |
Fluid name |
|
|
|
|
Flow rate |
m³/h |
|
|
|
|
Temperature (In/Out) |
℃ |
|
|
|
|
Pressure drop (Designed/Actual) |
Kpa |
|
|
|
Heat exchange |
Kw |
|
|
|
