Detailed Images
Main Features:

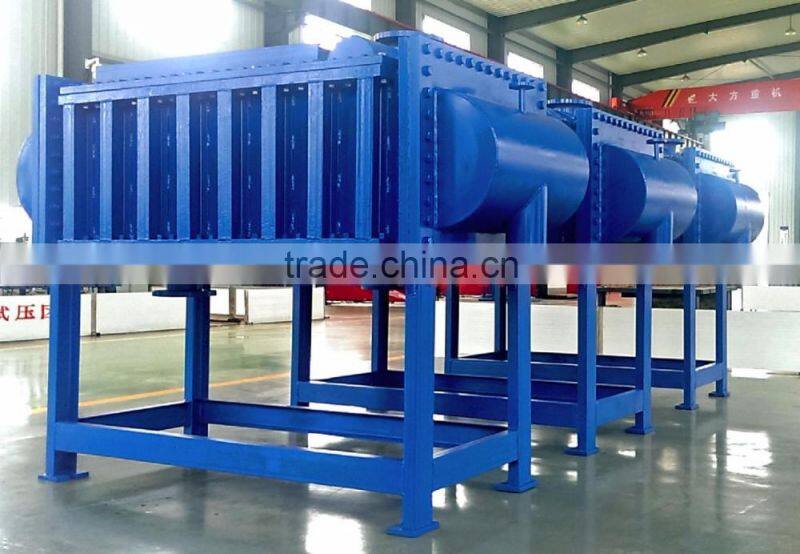

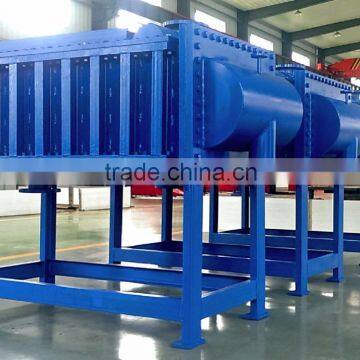

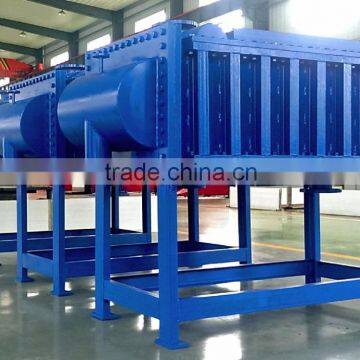

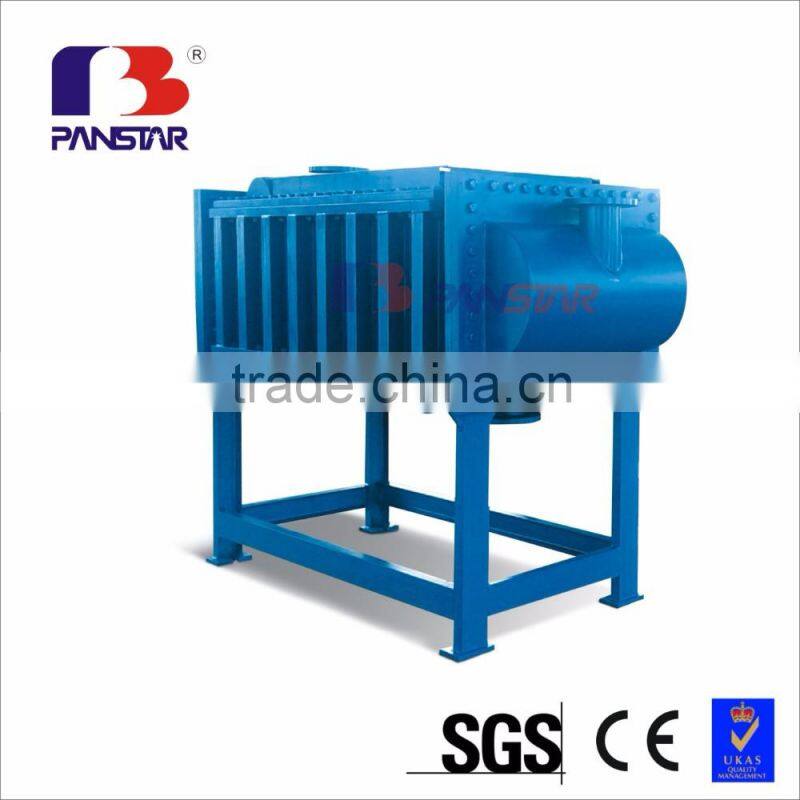

PQH130 inorganic organic coal chemical industrial stainless steel plate Welded Heat Exchanger removable frame
1) Compact structure, small covering area , high efficiency, and high pressure (up to a maximum of 4.0 Mpa), resistant to high temperatures (temperatures up to ~ 300℃), reliable operation;

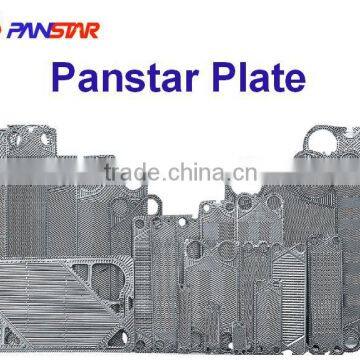

2) High heat transfer efficiency: heat exchange medium is realized through the plate, the plates was pressed by special mould , the structure like removable plate heat exchanger. It has high heat transfer efficiency, Large flow , small fluid pressure drop, less heat loss and so on;
3) Easy and flexible: using one mold can press different length and specification of plates, forming the same width products, meeting more needs of working conditions;
4) Applies range wide: the plates and the pressure plate both using welding structure, it can work well for temperature ≤ 300 ℃, pressure ≤ 4.0 Mpa or the media has corrosion of occasions and flammable. easy burst, toxic media and the high environment requirements security , and liquid media of cooling, warming, evaporation, Therefore, Both the advantages of plate heat exchanger, with high temperature & pressure.

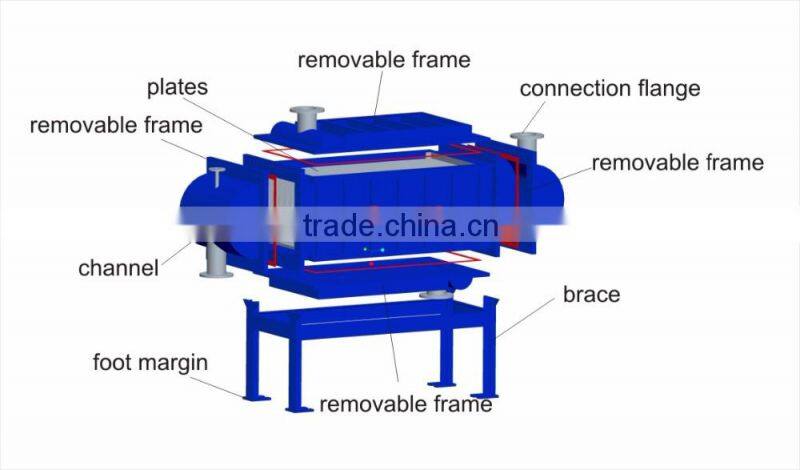

5) Panstar plate &frame fully welded heat exchanger combined with plate heat exchangers and shell-and-tube heat exchanger advantages, it has high efficiency compact, high temperature resistance, good sealing performance, security and reliability, and it can be used under high pressure and temperature conditions. For steam condensation and liquid-liquid heat transfer conditions, especially for electricity, petrochemicals, coking, pharmaceuticals, metallurgy, refrigeration, heat of the pulp and paper industry and other industry-specific media requirements
Related Products
Series |
Specifications and models |
Exterior dimension (mm) |
Maximum assemble area (m2) |
Nozzle diameter (hot side) |
Nozzle diameter (cold side) |
||
Maximum length |
Width |
Height |
|||||
PQH series |
PQH06 |
960 |
262 |
910 |
9 |
DN150 |
DN80 |
PQH18 |
1050 |
367 |
1425 |
32 |
DN200 |
DN80 |
|
PQH30 |
2750 |
427 |
1664 |
90 |
DN250 |
DN125 |
|
PQH40 |
2800 |
450 |
1974 |
120 |
DN250 |
DN100 |
|
PQH60 |
2900 |
511 |
2186 |
180 |
DN350 |
DN200 |
|
PQH90 |
3100 |
718 |
2560 |
450 |
DN500 |
DN300 |
|
PQH110 |
3300 |
718 |
2860 |
550 |
DN500 |
DN300 |
|
PQH130 |
3500 |
718 |
3160 |
650 |
DN500 |
DN300 |
|

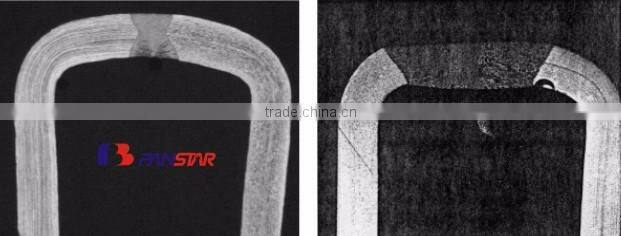

Welding machine after shrinkage less distortion, overall dimension can guarantee
Small heat-affected zone, thermal deformation. reduces corrosion, avoid stress corrosion cracking

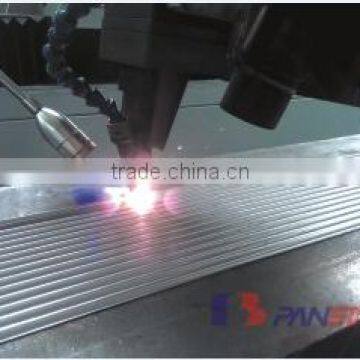

Panstar laser welding Traditional argon-arc welding
Company Informaton
Certification
Packaging & Shipping
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We own a factory, which is a professional manufacturer, located in Yangzhou China. It is a joint venture company invested by British PANSTAR Co., LTD and China TPY Group.
Q2: Can I have a sample for testing?
A2: Yes, a metal plate or a gasket sample is available for you, please contact sales staff before.
Q3: What is the measure of the plate heat exchanger?
A3: We will design the measure according to your detailed requirements and working conditions.
Q4: Can I add my logo on the product?
A4: Yes, OEM is available. Customized label service is OK.
Q5: Will your company provide after-sales service?
A5: Yes, overseas third-party support is available.
Q6: Where is your factory? How can I visit there?
A6: The factory address is NO. 3 Jinyuan Road AnYi Industrial Park, Baoying Yangzhou City,China. It takes 25 minutes by train from Shanghai. Warmly welcome you to visit us!
Q7: What parameters should I provide when I post an inquiry?
A7:
Working Conditions | ||||
Items |
Unites |
Hot side |
Cold side |
Remarks |
Fluid name |
|
|
|
|
Flow rate |
m³/h |
|
|
|
|
Temperature (In/Out) |
℃ |
|
|
|
|
Pressure drop (Designed/Actual) |
Kpa |
|
|
|
Heat exchange |
Kw |
|
|
|
