Panstar BH100BV High Heat Transfer Efficiency Mixed Type Heat Exchanger

Name: Panstar BH100BV High Heat Transfer Efficiency Mixed Type Heat Exchanger
Brand: Panstar
Availability: InStock

FOB Price

US$ 2,600 - 10,000 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Panstar	Model Number	BH100BV
Structure	Plate Heat Exchanger	Liquid Flow Rate	0.2-1.0m/s
Maximum Working Pressure	2.5Mpa	Voltage	none
Weight	100-5000kg	Dimension(LWH)	Designed
Power(W)	2.2-400kw	Certification	CE, Other, CE, SGS ISO9001 CCS
Warranty	18 Months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Overviews

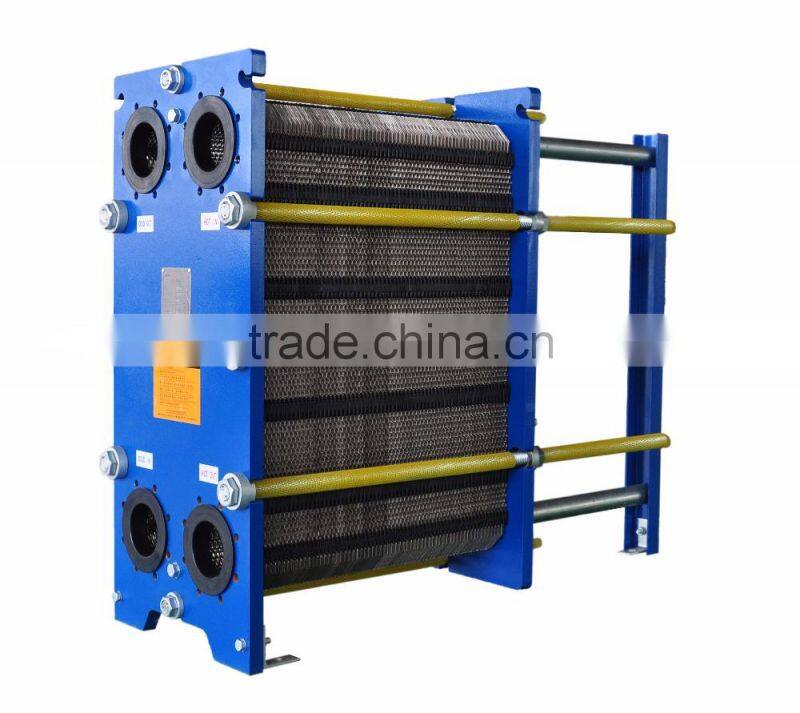

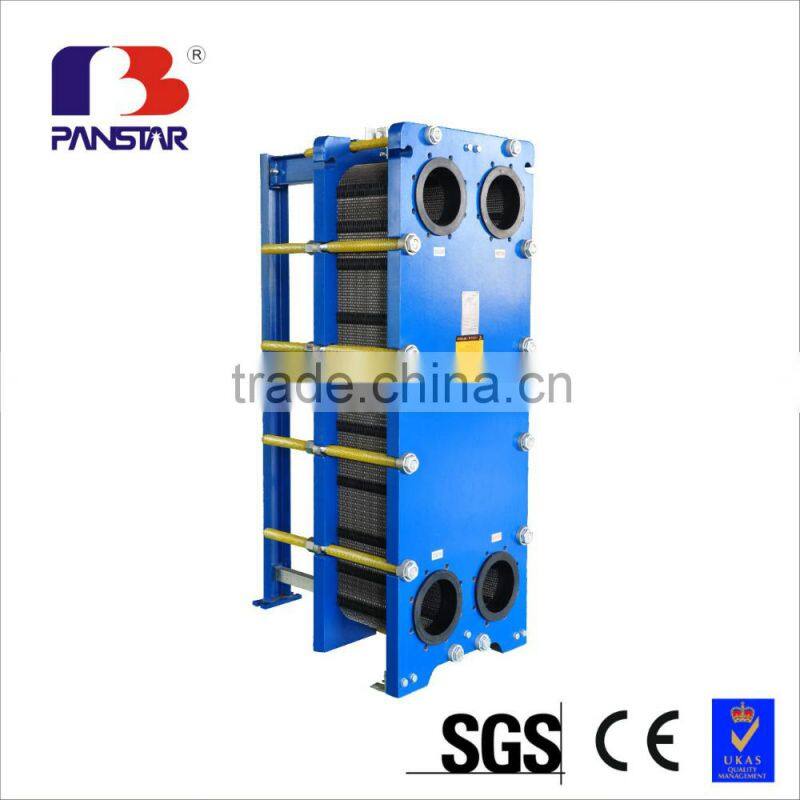

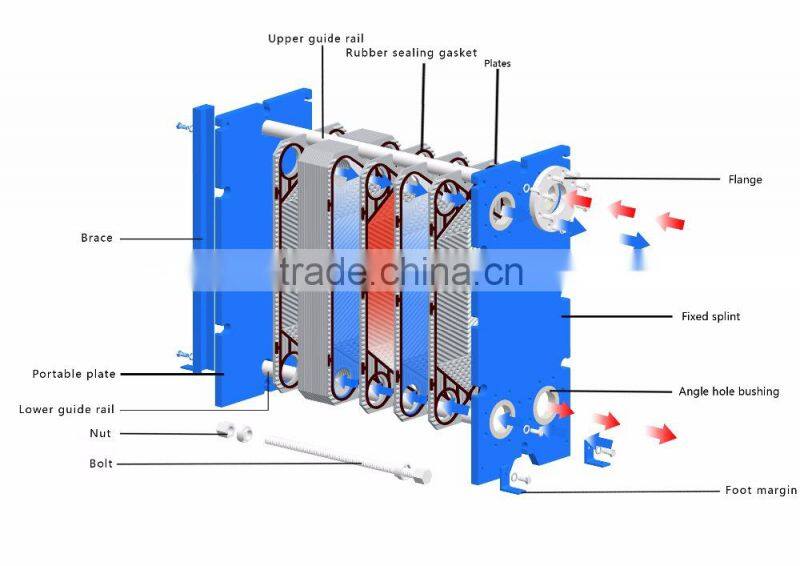

Detailed Images

Main Features:

Panstar BH100BV high heat transfer efficiency mixed type heat exchanger

Panstar plate heat exchanger Access to more than 90 patents, including three national key new patents.

1) Free welding Double wall plate heat exchangers;
2) Efficient channel plate heat exchanger;
3) Once pressed hanging port plate heat exchanger;

4) High heat transfer coefficient, usually • 3000~6000W/square meters, and up to 9000W/square meters • c;

5) Counter high heat transfer efficiency, realizing small temperature difference at the end to really achieve 1 ° c temperature difference heat transfer, heat recovery efficiency up to 95%;
6) Compact, low cost, covers small area;

7) Low degree of dirt, stranded in a small amount of liquid, the minimum can be as little as 0.75L/m²;
8) Flexible wide ,highest design pressure up to 2.5MPa, the pipe diameter up to DN500. if you need to change, according to the results, you can increase or decrease the plate.

Related Products

Series	Specifications and models	Plate models	Exterior dimension (mm)			Maximum assemble area (m²)	Nozzle diameter
Series	Specifications and models	Plate models	Maximum length	Width	Height	Maximum assemble area (m²)	Nozzle diameter
BP series	BP32	BH,BV	750	178	484	6	DN32
	BP50	BH,BV, MH,MV	1610	355	895	37	DN50
	BP100	BH,BV, MH,MV	2400	470	1070	100	DN100
	BP150	BH,BV, MH,MV	3300	615	1770	370	DN150
	BP200	MH,MV	4050	760	2048	410	DN200
	BP250	BH,BV	3410	900	2659	1000	DN250
	BP300	M,B	6200	1170	2852	1000	DN300
	BP350	H,V	5220	1250	2860	1100	DN350

Material	Operating temperature range	Use conditions
NBR gasket	≤135℃	Resistant mineral, animal ,vegetable oil and other non-polar media
HNBR gasket	-5℃-150℃	Resistance to sulfur crude oil, mixed media with H2S,high temperature cooking Oil lamp non-polar media
EPDM gasket	≤160℃	Heat water, steam ,food beverage, high temperature sterilization of milk
Solvent EPDM gasket	-20℃-150℃	Good volume and other polar solvents such as lipid solvents ,inorganic acid such as Greek
General fluorine rubber gasket	≤180℃	Non-polar mineral oil, lubricating oil and other fuels containing alcohol
Special fluorine rubber gasket	30℃-130℃	High concentration of sulfuric acid and other inorganic oxygen acid

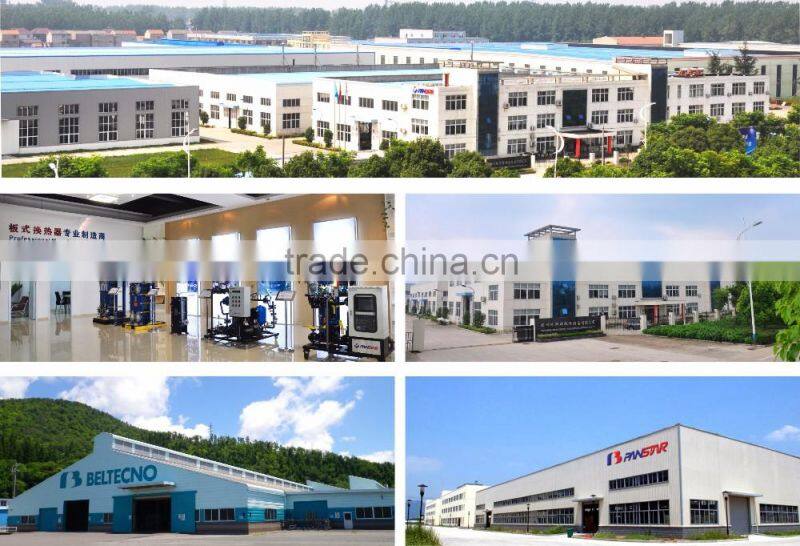

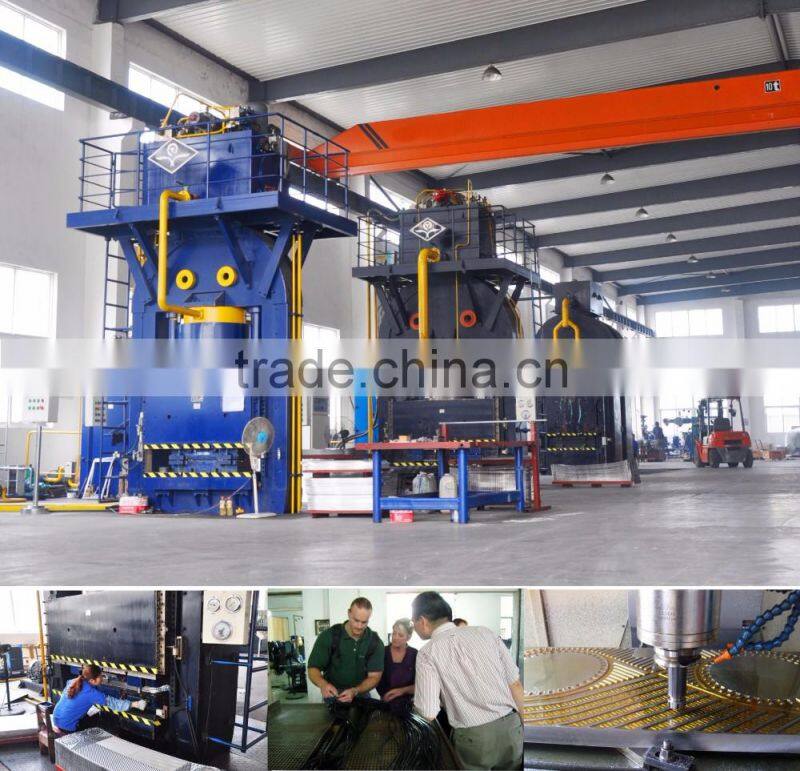

Company Informaton

Certification

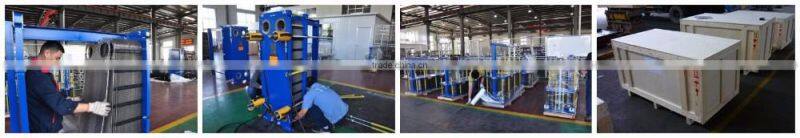

Packaging & Shipping

FAQ

Q1: Are you a manufacturer or a trading company?
A1: We own a factory, which is a professional manufacturer, located in Yangzhou China. It is a joint venture company invested by British PANSTAR Co., LTD and China TPY Group.

Q2: Can I have a sample for testing?
A2: Yes, a metal plate or a gasket sample is available for you, please contact sales staff before.

Q3: What is the measure of the plate heat exchanger?
A3: We will design the measure according to your detailed requirements and working conditions.

Q4: Can I add my logo on the product?
A4: Yes, OEM is available. Customized label service is OK.

Q5: Will your company provide after-sales service?
A5: Yes, overseas third-party support is available.

Q6: Where is your factory? How can I visit there?
A6: The factory address is NO. 3 Jinyuan Road AnYi Industrial Park, Baoying Yangzhou City,China. It takes 25 minutes by train from Shanghai. Warmly welcome you to visit us!

Q7: What parameters should I provide when I post an inquiry?
A7:

Working Conditions
Items	Unites	Hot side	Cold side	Remarks
Fluid name
Flow rate	m³/h
Temperature (In/Out)	℃
Pressure drop (Designed/Actual)	Kpa
Heat exchange	Kw
