Main Features:

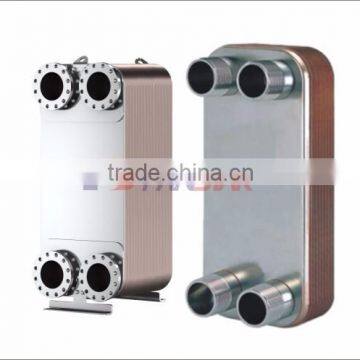

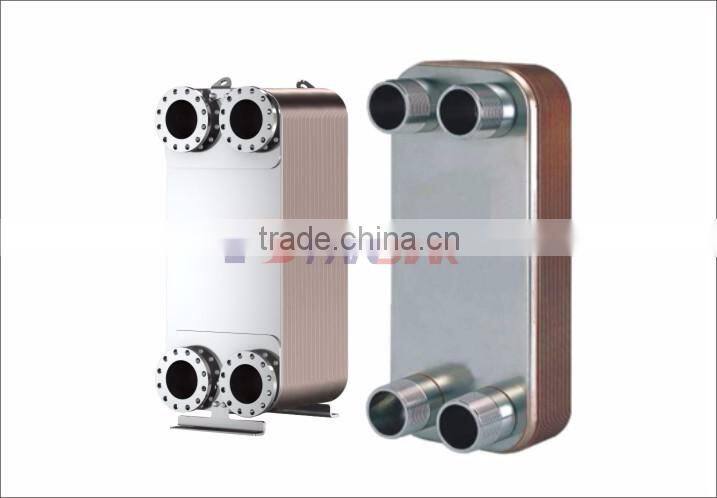

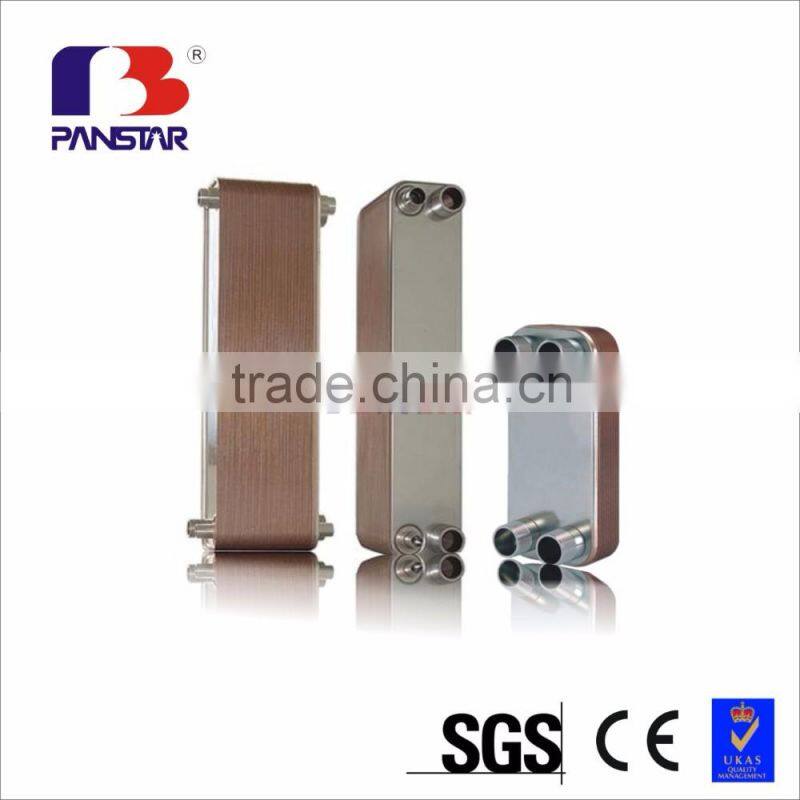

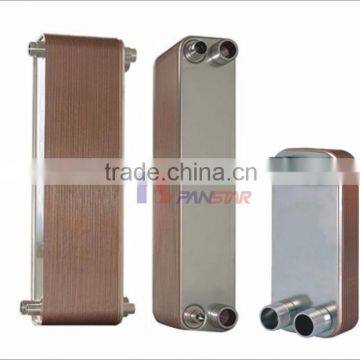

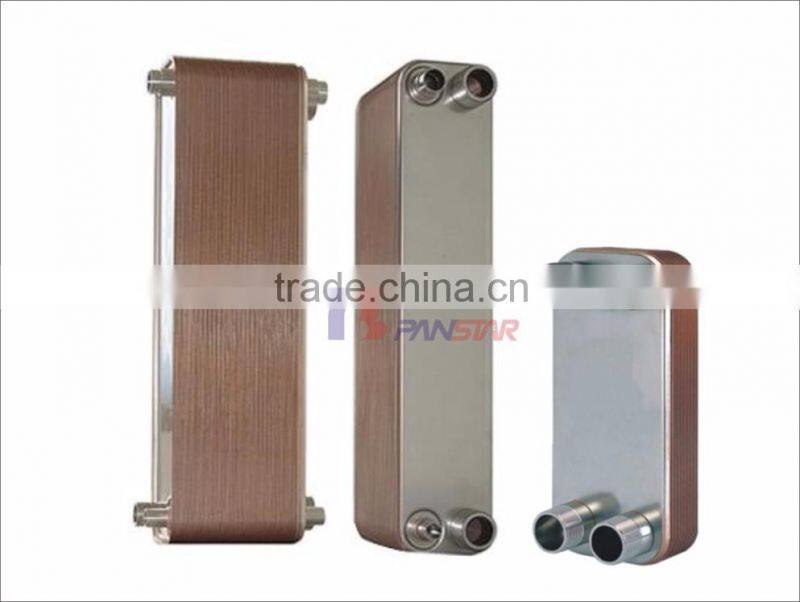

Panstar brazed plate heat exchanger
Panstar brazed plate heat exchanger Access to more than 90 patents, including three national key new patents.
1) Free welding Double wall plate heat exchangers;
2) Efficient channel plate heat exchanger;
3) Once pressed hanging port plate heat exchanger;
4) High heat transfer coefficient, usually • 3000~6000W/square meters, and up to 9000W/square meters • c;
5) Counter high heat transfer efficiency, realizing small temperature difference at the end to really achieve 1 ° c temperature difference heat transfer, heat recovery efficiency up to 95%;
6) Compact, low cost, covers small area;
7) Low degree of dirt, stranded in a small amount of liquid, the minimum can be as little as 0.75L/m2;
8) Flexible wide ,highest design pressure up to 2.5MPa, the pipe diameter up to DN500. if you need to change, according to the results, you can increase or decrease the plate.
Related Products
Series |
Specifications and models |
Plate models |
Exterior dimension (mm) |
Maximum assemble area (m2) |
Nozzle diameter |
||
Maximum length |
Width |
Height |
|||||
BP series |
BP32 |
BH,BV |
750 |
178 |
484 |
6 |
DN32 |
BP50 |
BH,BV, MH,MV |
1610 |
355 |
895 |
37 |
DN50 |
|
BP100 |
BH,BV, MH,MV |
2400 |
470 |
1070 |
100 |
DN100 |
|
BP150 |
BH,BV, MH,MV |
3300 |
615 |
1770 |
370 |
DN150 |
|
BP200 |
MH,MV |
4050 |
760 |
2048 |
410 |
DN200 |
|
BP250 |
BH,BV |
3410 |
900 |
2659 |
1000 |
DN250 |
|
BP300 |
M,B |
6200 |
1170 |
2852 |
1000 |
DN300 |
|
BP350 |
H,V |
5220 |
1250 |
2860 |
1100 |
DN350 |
|
Company Informaton
Certification
Packaging & Shipping
Brazed heat exchanger Packing for export
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We own a factory, which is a professional manufacturer, located in Yangzhou China. It is a joint venture company invested by British PANSTAR Co., LTD and China TPY Group.
Q2: Can I have a sample for testing?
A2: Yes, a metal plate or a gasket sample is available for you, please contact sales staff before.
Q3: What is the measure of the plate heat exchanger?
A3: We will design the measure according to your detailed requirements and working conditions.
Q4: Can I add my logo on the product?
A4: Yes, OEM is available. Customized label service is OK.
Q5: Will your company provide after-sales service?
A5: Yes, overseas third-party support is available.
Q6: Where is your factory? How can I visit there?
A6: The factory address is NO. 3 Jinyuan Road AnYi Industrial Park, Baoying Yangzhou City,China. It takes 25 minutes by train from Shanghai. Warmly welcome you to visit us!
Q7: What parameters should I provide when I post an inquiry?
A7:
Working Conditions | ||||
Items |
Unites |
Hot side |
Cold side |
Remarks |
Fluid name |
|
|
|
|
Flow rate |
m³/h |
|
|
|
|
Temperature (In/Out) |
℃ |
|
|
|
|
Pressure drop (Designed/Actual) |
Kpa |
|
|
|
Heat exchange |
Kw |
|
|
|
