Help CenterServo and Automatic Injection Moulding Machine XT-VD120 Vertical Type
Related Products
-
Crankshaft Clamping Vertical Plastic Injection Machine 300NegotiableMOQ: 1 Set -
Plastic Plug Making MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Vertical Injection Molding Machine/shoe Sole Injection Molding MachineUS$ 25,000 - 32,000MOQ: 1 Set
-
120 Ton High Quality Vertical Injection Mould MachineryUS$ 25,000 - 32,000MOQ: 1 Set
-
PVC Shoe Sole Making Injection MachineUS$ 7,000 - 12,000MOQ: 1 Set
Specifications
Vertical plastic injection moulding machine1.Clamping force:2200kn
2.Space between tie bars:530*450mm
3.Machine size:1.72X0.
1.What products our machines can make
2.Technical data
Technical Parameters | ||
Injection Device |
|
|
|
UNIT |
DATA |
SCREW MODEL |
|
STANDARD |
SCREW DIAMETER |
MM |
50 |
INJECTION PRESSURE |
Mpa |
115 |
THEORETICAL SHOT VOLUME |
CM³ |
390 |
SHOT WEIGHT(PS) |
G |
315 |
INJECTION RATE(PS) |
G/S |
150 |
SCREW SPED |
R/PM |
6-300 |
Clamping Device |
|
|
CLAMPING MODEL |
|
INVOLUTION |
CLAMPING FORCE |
KN |
1200 |
MAX. PLATE STROKE |
MM |
320 |
MOULD THICKNESS |
MM |
150-400 |
SPACE BETWEEN TIE-BARS(HxV) |
MM |
440x340 |
MOULD PLATE SIZE(HxV) |
MM |
610x510 |
EJECTOR FORCE/STROKE |
KN/MM |
45/70 |
Others |
|
|
MOTOR POWER |
KW |
11 |
HEATING POWER |
KW |
8.5 |
MACHINE WEIGHT |
TON |
2.7 |
MACHINE SIZE(LxWxH) |
M |
1.72x0.94x2.85 |

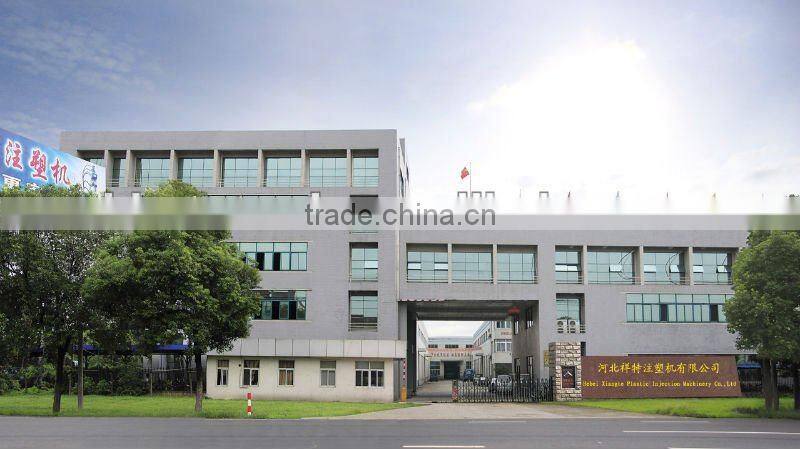

3.About Our Company
Hebei Xiangte Imp.& Exp. Co.,ltd is a exclusive sales agent of Hebei Xiangte Plastic Injection Machinery Co.,ltd. Established in 1999, Hebei Xiangte Plastic Injection Machinery Co.,ltd is specialized in the research, manufacturing, sales and service of various plastic molding machines. With many years experience of professional techniques and sales network, we can provide customers with high-tech, high-precise and high -speed injection molding machines. .Depending on competitive price, top services and perfect quality, our products have been exported to over 60 countries in Asia, East Europe, Africa and South America. We hope you to visit our factory.

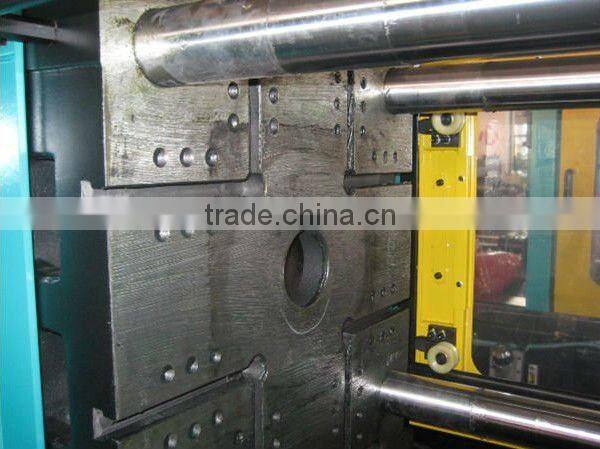

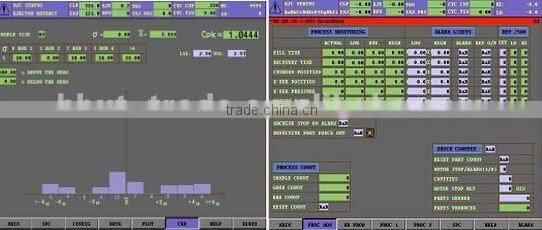

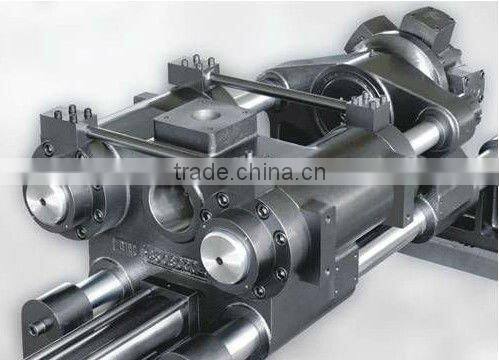

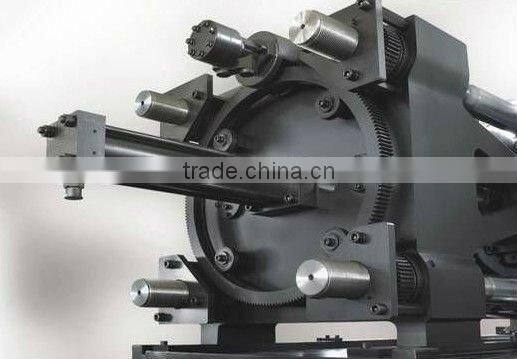

Main parts:
