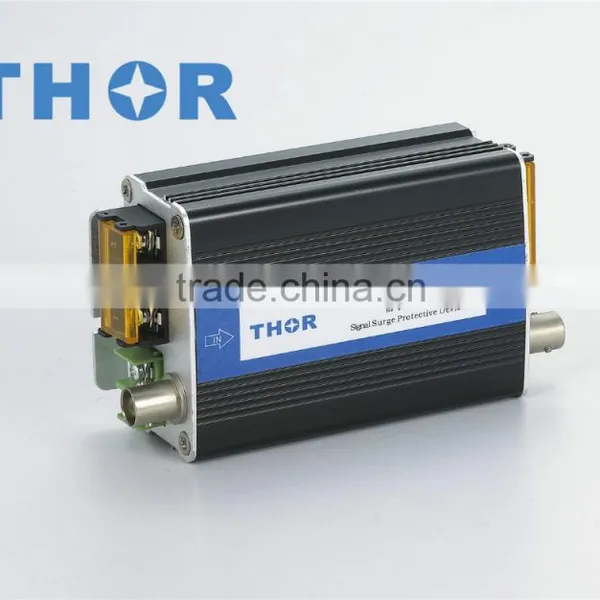

SPD Video Surveillance System Surge Protector

SPD Video Surveillance System Surge Protector thumbnail-1
SPD Video Surveillance System Surge Protector photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
THOR
Model Number:
TRS-BNC2+1
Contact Supplier Request Quote Chat Now
Zhejiang THOR Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name THOR
Model Number TRS-BNC2+1

Specifications

Video Surveillance System surge protector
Frequency band :20KHz.1MHz.40MHz 100MHz
Interface form:TRSS-BNC
manufacturer,OEM

Video Surveillance System surge protector

Detailed product Description:

Application:

TRSS-BNC 2+1 coaxial signal surge arrestor for coaxial  computer system like:100BASE-2 .video and camera system . etc , It is used to protect the indirect thunder influence or other instantaneous over voltage surge

Specifications:

1):Nominal discharge current (8/20us)(In):10KA

2):Operating voltage (Un):DC5V   DC12V    DC24V

3):Frequency band :20KHz.    1MHz.    40MHz    . 100MHz

4):Impedance:50Ω       75Ω

5:Voltage protection level (up):≤120V

6):Interface form:TRSS-BNC

7):Insertion loss≤0'2db

TRSS-BNC2+1 series can add remote signal control function.



Technical data

Type

TRSS-BNC

Nominal voltage Un(V)

5V

Nominal discharge current(In)8/20μS

5kA

Voltage protection level (UP):

line-line

25V

line-PE

600V

Max transfer speed

16MB/S

Bestwith fo

≥20MHZ

Imax loss

≤0.3db

Test socket connection loss

≥20db

Connection inpotout put

BNC
