Max discharge current 8/20μS)(Imax):(KA)
(spd)surge protector power suppressor Lightning proof protector

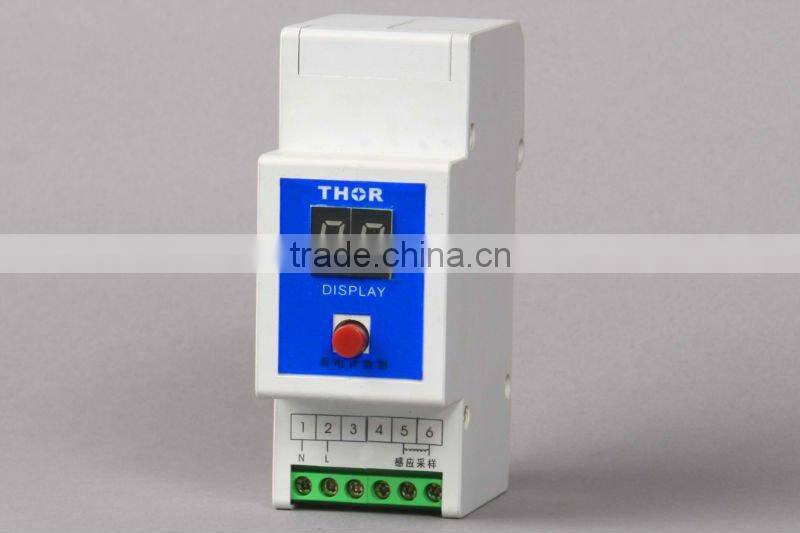

lightning counter can test and record the discharge frequency of the lightning arrester, that is recording the lightning current rush frequency beyond certain degree, which is convenient for the user to do statistics and analysis on the lightning situation in specific area. It can be used accommpanying with various lightning arrester, also it can be used as the supported product of the surge protection box.
Main structure and work principle:
Large counting range, wide application range.
Sensitive response, precision counting,no maloperation.
2-bit digital display, clear and easy to recognize.
No data loss after power off
DIN rail installment, convenient for installment and replacement.
Introducing single chip technology,advanced and reliable structure.
| Type Index | |||||
| Max continuous operating voltage (UC):(V) | 140V | 275V | 320V | 385V | 440V |
| IEC category | II | II | II | II | II |
| Nominal discharge current (In)8/20μS(KA) | 5/8kA | 5/8/15/20kA | 5/8/15/20kA | 5/8/15/20kA | 5/8/15/20kA |
| Max discharge current 8/20μS)(Imax):(KA) | 8/16KA | 8/15/40/65KA | 8/15/40/65KA | 8/15/40/65KA | 8/15/40/65KA |
| Voltage protection level (UP)(KV) | <0.8kV | <1.2kV | <1.5KV | <1.8KV | <2.0KV |
| Response time (ns) | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
| Operating temp range | -40--+80 | -40--+80 | -40--+80 | -40--+80 | -40--+80 |
| Color | Gray | Gray | Gray | Gray | Gray |
| Frame material | Strengthen fire resistance PC, PBT | Strengthen fire resistance PC, PBT | Strengthen fire resistance PC, PBT | Strengthen fire resistance PC, PBT | Strengthen fire resistance PC, PBT |
| Cross section area | Phase wire :6--35mm2 | Phase wire :6--35mm2 | Phase wire :6--35mm2 | Phase wire :6--35mm2 | Phase wire :6--35mm2 |
| Cross section area | Earthed wire:6--35mm2 | Earthed wire:6--35mm2 | Earthed wire:6--35mm2 | Earthed wire:6--35mm2 | Earthed wire:6--35mm2 |
| Cross section area | Remote sig terminal: 1.5mm2 | Remote sig terminal: 1.5mm2 | Remote sig terminal: 1.5mm2 | Remote sig terminal: 1.5mm2 | Remote sig terminal: 1.5mm2 |
| Accessonies | Addtion remote signal control | Addtion remote signal control | Addtion remote signal control | Addtion remote signal control | Addtion remote signal control |
Trade Terms:
1. M.O.Q: 10PCS
2. Production lead time: 3-5 days for sample, 7-10 days for mass order.
3. Shipping Port: Shenzhen, China
4. Shipping way: by sea, by air, by express(DHL/UPS/TNT/FedEx/EMS etc.)
5. Shipping freight will be quoted as per your request.
6. Payment terms: T/T, ; Western Union
Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized SPD we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information.
Our Promise:
1. Provide solutions and high quality products
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
Shipping Options:
1. By Express: such as DHL, UPS, TNT, FedEx etc. The dispatch time is about 3-7 days
2. Air Freight: when your order more than 100kgs which will be more economical than express
3. Sea Freight: We will updated sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Rich Experience: Our factory was founded in 2005, have a long history in manufacturing and selling of a complete range of surge arresters. We firmly promise to top quality, competitive price, quick delivery and good before/after sales services. OEM service is welcomed.
Good after sales service: one year replacement, five years warranty.
Any small problems happening in our SPD will be solved at the most prompt time. We always offer relative technical support/consultant. Quick response ,all your inquiry will be replied within 24 hours.
Quality warranty:
We have our own factory, engineerteam and a set of equipment for the product test, Beside,we can control the production(also mean we can control the lead-time)quality of the product very well.
Main Products:Lightning rod , Power surge protector, Signal surge protector, CCTV surge protector, Earth rod and so on.
