Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E)

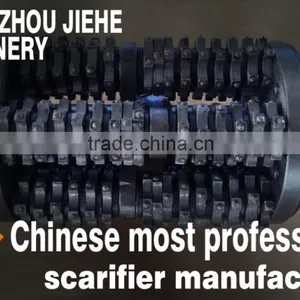

Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) thumbnail-1
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) thumbnail-2
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) thumbnail-3
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) thumbnail-4
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) thumbnail-5
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) thumbnail-6

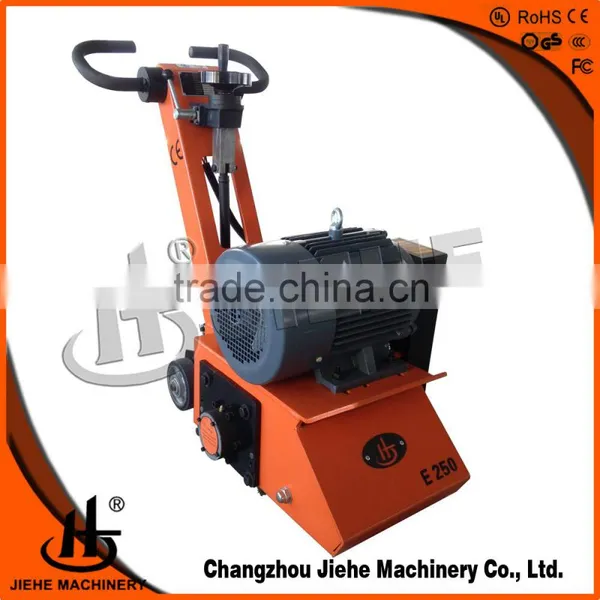

Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) photo-1
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) photo-2
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) photo-3
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) photo-4
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) photo-5
Scarifying Machine With Concrete Scarifier Carbide Cutter for Scarifying Concrete Floors (JHE-250E) photo-6
US$ 1,200 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Working Width:
250mm
Working Depth:
5-8mm
Contact Supplier Request Quote Chat Now
Changzhou Jiehe Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Scarifying machine with Concrete Scarifier carbide cutter for scarifying concrete floors (JHE-250E) is shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Working Width 250mm
Working Depth 5-8mm
Place of Origin Jiangsu, China
Brand Name JIEHE
Model Number JHE-250E
Voltage 380V
Power(W) 5.5KW
Dimension(L*W*H) 910*470*880
Weight 201KGS
Features 8mm scarifying depth
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Scarifying machine with Concrete Scarifier Carbide Cutter for scarifying concrete floors (JHE-250E)



Applications



Our products are widely used in

  • municipal conservation,
  • road construction,
  • building construction,
  • flooring treatment(epoxy floor, wear-resistant floor)
  • other fields.

Specifications

 7.5KW siemens engine and super four or six bearings;

  •  7.5KW siemens engine and super four or six bearings;

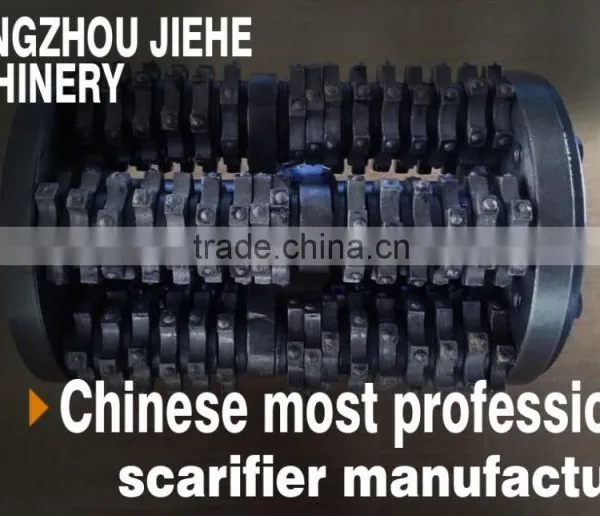

  •  Drum is heat treated specially;

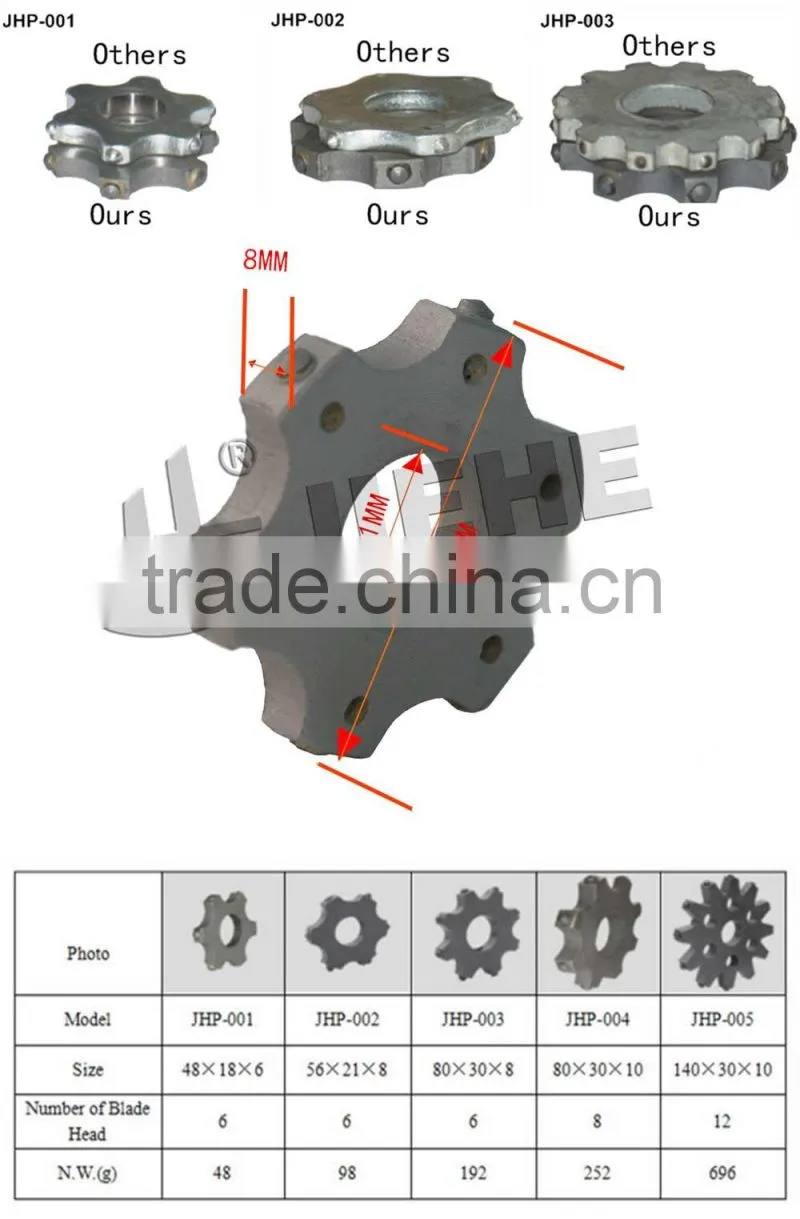

  •  Good quality cutter;
  •  Drum can be replaced easily;

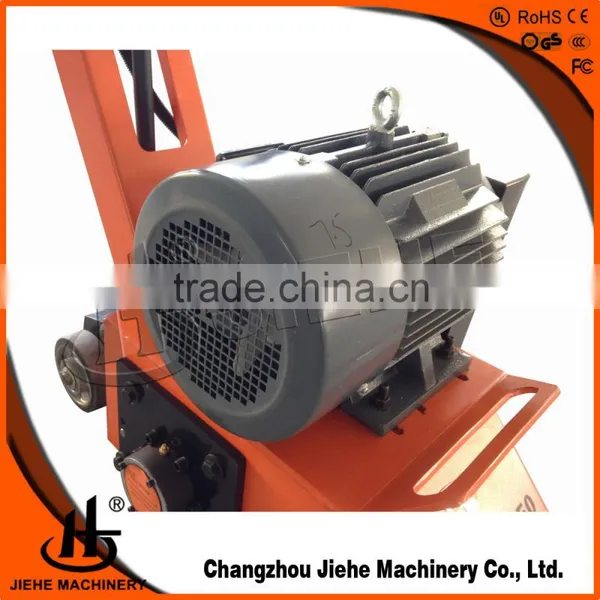

Pic1:7.5KW Siemens Motor

Pic2:186F CHANGCHAI diesel engine

Pic3:14HP KOHLER gasoline engine

Pic4: Honda GX390 or Honda GX270 engine

If you want some other kind of engine or motor which you are prefer to, contact with us please.

Parameter

Model

JHE-250

JHE-250E

JHE-250K

JHE-250D

Power Source

GX390 Honda/

GX270

Siemens

Electrical motor

Kohler CH440/

CH395

186F Diesel

Gasoline engine

Horse Power

13HP/9HP

7.5KW

14HP/9.5HP

10 HP

Working width

235mm

235mm

235mm

235mm

Working depth

5-8mm

5-8mm

5-8mm

5-8mm

No. of shaft

6pieces

6pieces

6pieces

6pieces

No. of cutter

90pieces

90pieces

90pieces

90pieces

Power Drive

Manual

Manual

Manual

Manual

Working area

60-85 m2 / H

60-85 m2  / H

60-85  m2  / H

60-85  m2 / H

Net Weight

178KG

201KG

132KG

199KG

L× W× H

910×470×880mm

910×470×880mm

910×470×880mm

910×470×880mm

Drum Rotation

Down cut (clock wise)

Milling mode

downward cut

Depth Control

Adjustable

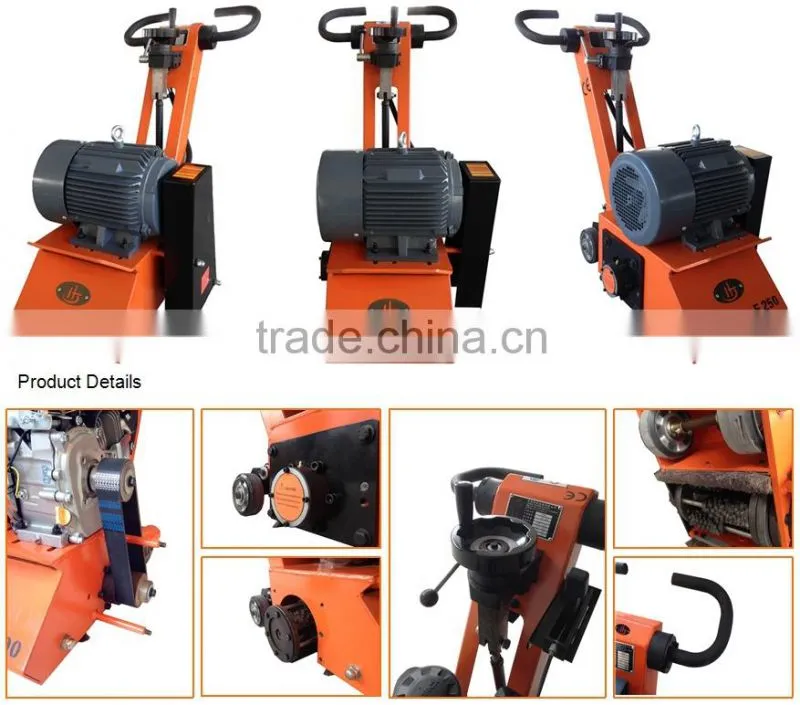

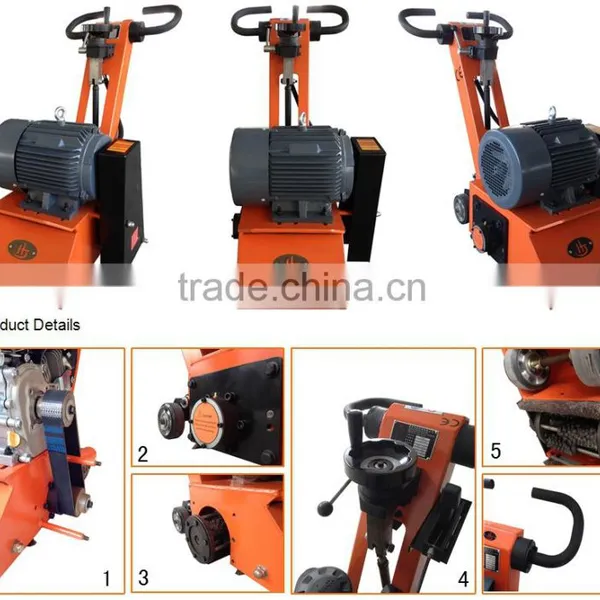

Parts details

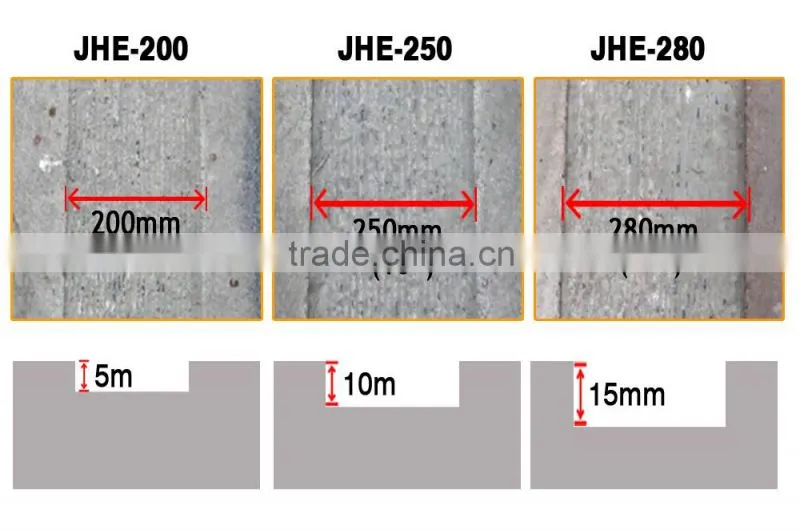

 Performance and Effect





Packaging & Shipping

Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.

JHE-250E packaging dimensions(mm) is: 900*570*910.

30 sets 1 container normally.



More products







Company Information

  • Changzhou Jiehe Machinery Co., LTD. is a comprehensive enterprise,including production design, manufacturing,sales and service.Our company is located in Qinyun industrial park, Changzhou City, Jiangsu province, near to Changzhou port.Jiehe Machinery was found in 2000,covering an area of 12000 square meters.
  •  We are fully committed to reseash and develop,manufacture and sales of municipal road maintenancemachinery.
  • Presently,we have five series of products: Scarifying machine, Road Cutting machines,Grooving machine, Crack sealing machine and Compaction machines.
  •  All of products had been passed CE certificate and sold to Canada,Argentina,Brazil,Germany,Italy,Australia,NewZealand,Singapore,Thailand market.
  • We supply best quality and service to welcome the customer from all over theworld.
