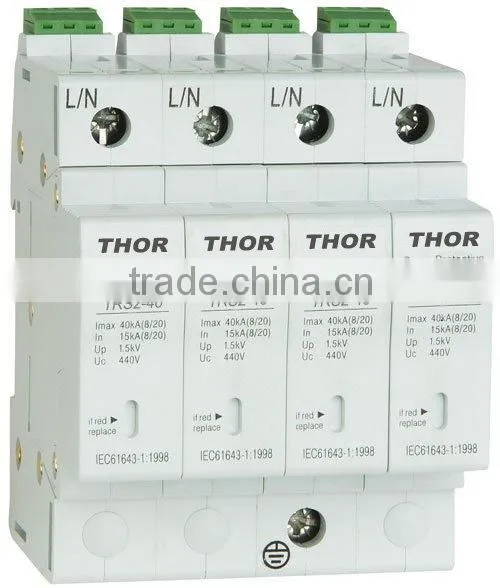

(SPD)lightning protector surge protection device
Application:
TRS2-40 series surge protection device suit for the AC 50Hz/60Hz . for the TT. TN-S . TN-C .and IT .not over 380V . It is used to protect the direct or indirect thunder influence or oher instantaneous over-voltage surge . This protect is mainly used in house . thied industry field for surge protection . This product is comply with GB18802 .1-2002 . IEC 61643-1998
Specifications:
1):Protection class C IEC II CLASS
2):Composite type :1P 2P 3P 4P 1P+N 2P+N 3P+N 3P+NPE
3):Max continuous operating voltage (UC):255V--440V
4):Nominal discharge current (8/20us)(In);5KA 10KA 20KA
5):Max discharge current (8/20us)(Imax):10KA 20KA 40KA
6):Voltage protection level (UP):1.0KV 1.5KV 1.8KV 2.0KV
TRS2-40 series have derivative composite type : 1+NPE 2+NPE 3+NPE
TRS2-40 series can add remote signal control function
Type |
TRS2/-275 |
TRS2/-320 |
TRS2/-385 |
TRS2/-440 |
Max continuous operating voltage (UC):(V) |
275 |
320 |
385 |
440 |
IEC category |
II |
|||
Nominal discharge current (In)8/20μS (KA) |
15/20/30 |
15/20/30 |
15/20/30 |
15/20/30 |
Max discharge current 8/20μS)(Imax): (KA) |
30/40/60 |
30/40/60 |
30/40/60 |
30/40/60 |
Voltage protection level (UP)(KV) |
<1.5kV |
<1.8kV |
<2.0kV |
<2.5kV |
Response time (ns) |
≤25ns |
|||
Degree of protection |
IP20 |
|||
Operating temp range |
-40--+80 |
|||
Color |
Gray |
|||
Frame material |
Strengthen fire resistance PBT |
|||
Cross section area |
Phase wire :6-35mm2 |
|||
Earthed wire:6-35mm2 | ||||
Remote sig terminal: 1.5mm2 | ||||
Accessonies |
Addtion remote signal control |
|||
