Help CenterHorse Float - 3HAL
Negotiable
MOQ: 2 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
OEM No.:
3HAL
Max Payload:
2500kgs
Size:
4175x1980x2230mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
OEM No.
3HAL
Max Payload
2500kgs
Size
4175x1980x2230mm
Place of Origin
Shandong, China
Brand Name
KAMA
Model Number
KM3HAL-S02-B
Specifications

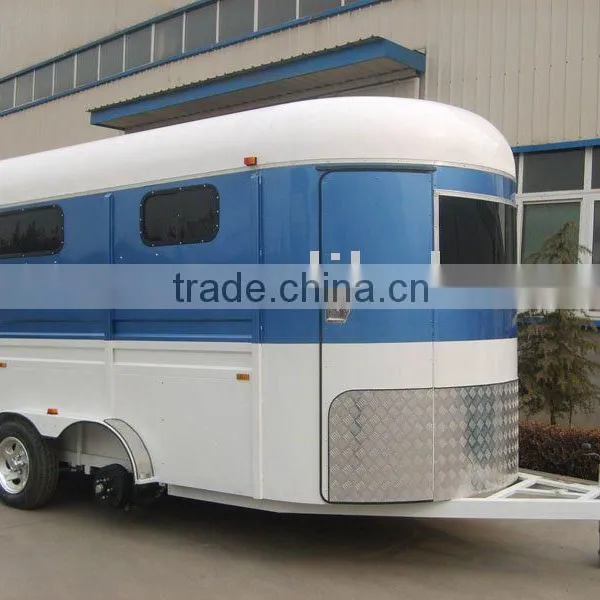

Horse Float - 3 Horse Angle Load Float1.Tandem spring suspension 9 plates
2.Double axle electric brake
Horse Float - 3 Horse Angle Load Float
- chassis material double galvanized RHS(3.5mm-4.0mm)
- frame material double galvanized RHS(2.5mm)
- body panel galvanized (1.2mm)
- roof special molded FRP 4655*1980
- wheel rim 14' steel alloy rims
- tyres 185R14C
- spare wheel one
- axles two special trailer axles
- leaf springs tandem spring suspension 9 plates
- brake system double axle electric brake
- front window Tinted front windows 1220*610
- side window five sliding windows
- vents two pop-up vents
- rear upper door 2020*1065
- ramp door 2020*1210
- rear upper & ramp door strut high-intensity anti-rust strut
- drawbar checker plate 1.2mm aluminium
- drawbar safety chain two
- bracing wheel one
- trailer plugs square 7 wick plug
- side lamps 6
- rear lamps LED group
- rear lamps stand aluminum
- petro reflectors 8
- mudguard checker plate 1.2mm aluminium in the front of mudguard
- pedal& aluminium step 1.2mm aluminium decoration board
- cupboard none
- fridge none
- microwave none
- horse protection frame full padded
- tie up ring four
- rubber matting for ramp door 10mm rubber matting
- rubber matting for floor 10mm rubber matting
- rubber matting for inner side panel 5mm rubber matting
- wood board for floor & ramp door 18mm hardwood plywood
- rug rack full length side
- tack box none
- saddle rack in the saddle box
- saddle box aluminium
- painting single or multi-color
- overall dimensions( L x W x H: mm ) 5045*2280*2590
- body dimensions ( L x W x H: mm ) 4175*1980*2230
- inner dimensions ( L x W x H: mm ) 4045*1930*2155
